|Place of Origin:||China|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Wooden Case/Container|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Perforated Drum Perforations:||1.0 To 10 Mm||Wedge Wire Mesh Drum Openings:||0.5 To 10 Mm|
|Mounting:||Channel Or Tank||Material:||SS304|
|Origin:||Jiangsu, China||Capacity:||5-150 M3/h|
|Power:||0.75kw||Keywords:||Screw Screen For Wastewater Treatment|
150M3/H Water Screw,
0.75kw spiral screen,
150M3/H Screw Screen
Stainless Steel 304 Channel Mounted Spiral Screw Screen
The GNG Waste Water Screw Screens are designed for the separation of solids present in the waste water and their compaction / dewatering before disposal.

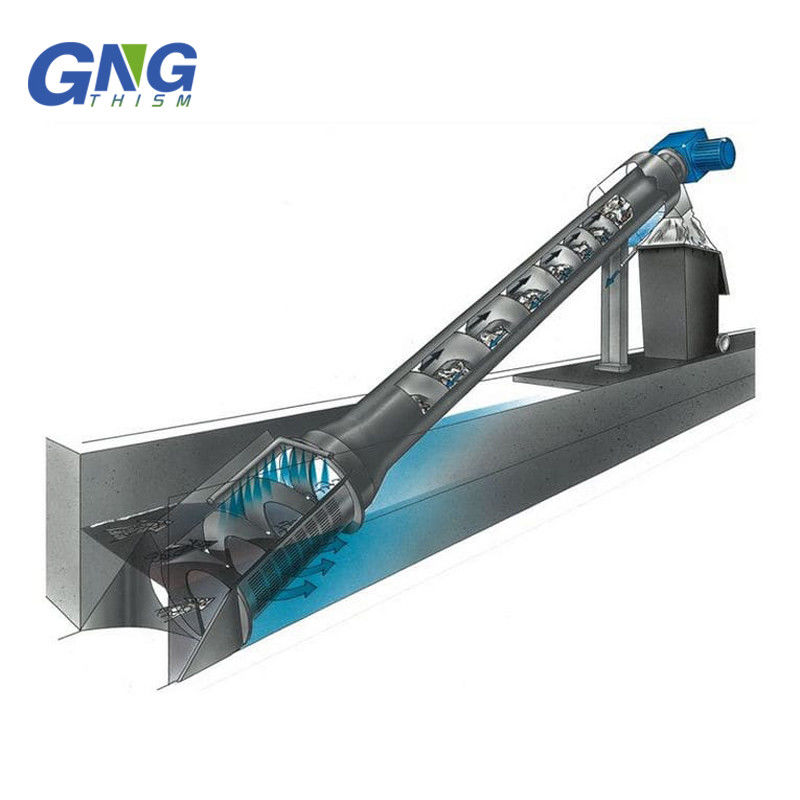

The separation process begins with the waste water entering the inside the screen which holds back solids only. The screen is continuously cleaned by brushes fixed on the outside diameter of the shaftless spiral screw conveyor. As the water runs through the screen the shaftless spiral screw conveyor moves the solids upward towards the compacting module where the material is further de-watered. Depending on the solids material properties, the screenings can be reduced by more than 35% of their original volume.
Screw Screen Technical Parameter
|Model||Flow Rate(m³/h)||Grid Gap(mm)||Power(kw)||Dimension(m)||Material|
Screw Screen Features:
Screw Screen Suitable for the Following Industries;
Screw Screen Function
The process starts on the screen that holds back solids only. The internal part of the screen is continuously cleaned by brushes fixed on the outside diameter of the flighting. As the water runs through the screen the shaftless spiral conveys the solids up towards the compaction module where the material is further de-watered. Depending on the material properties, screenings can be reduced by more than 50% of their original volume.

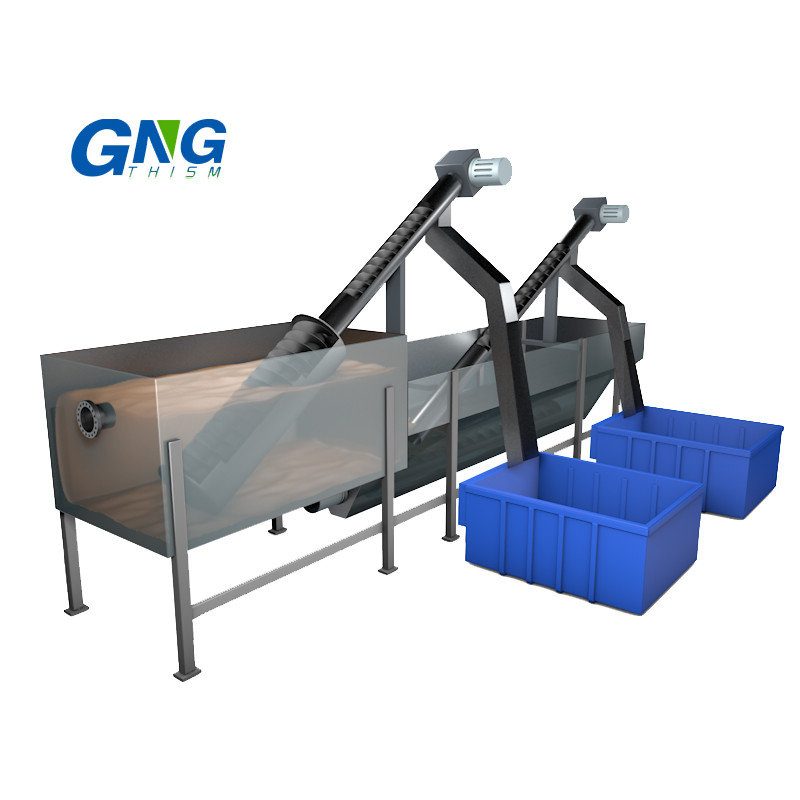

We offer a complete line of in channel or in-tank screening systems. Each unit utilizes a perforated plate or v-wire screen section to effectively remove unwanted solids and debris from the influent. The screenings are transported via a shaftless conveyor to the compactor and washing zone, where they are cleaned, dewatered, then finally discarded into a receptacle or optional bagging system. Screens can be installed in-channel or in a self-contained stainless steel tank.
Q: Whether your company is factory or trading company?
A: Our company has its own workshop, so we can provide the the best quality and the lowest price for you.
Q: How long is your warranty?
A: One year after the arrival of the goods. During this period, we will provide the damaged parts for free if not man-made damage.
Q: What about your delivery time?
A: Normally within 30 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q. Is there any other equipment used in sludge treatment?
