Place of Origin: | China |
---|---|
Brand Name: | GNGTHISM |
Certification: | CE/ISO9001 |
Model Number: | GNBQ-350 |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Carton |
Delivery Time: | 2~10 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10000 pieces per month |
Type: | Disc Diffuser | Membrane Material: | EPDM/Silicone/PTFE |
---|---|---|---|
Support Dish Material: | Strengthened PP+glass Fiber | Connector: | 3/4'' NPT Male Thread |
Weight: | 1.2kg | Certification: | CE/ISO9001 |
High Light: | fine bubble membrane diffusers,micro bubble air diffuser |

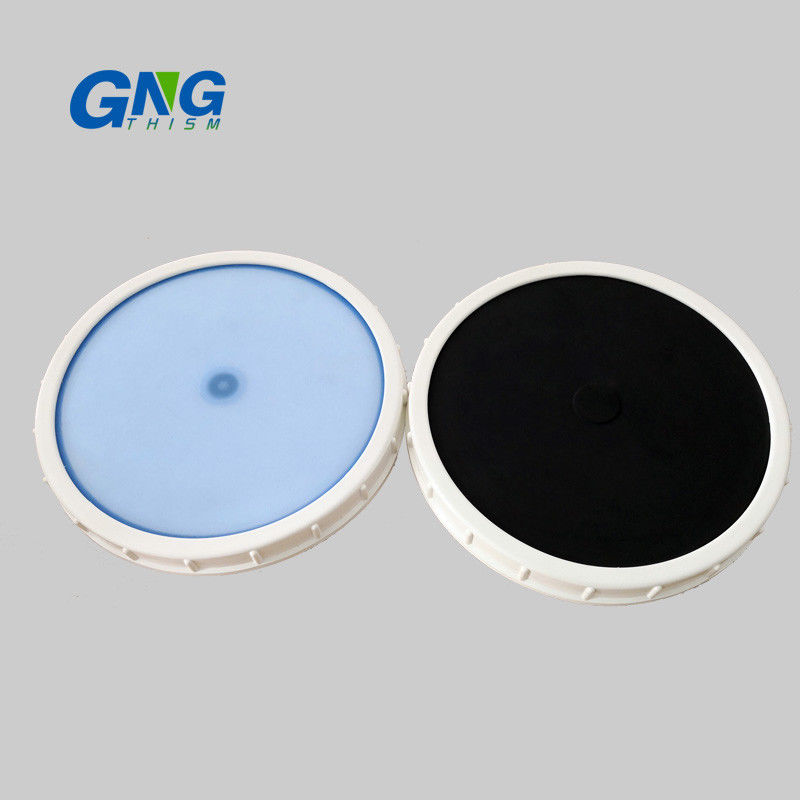

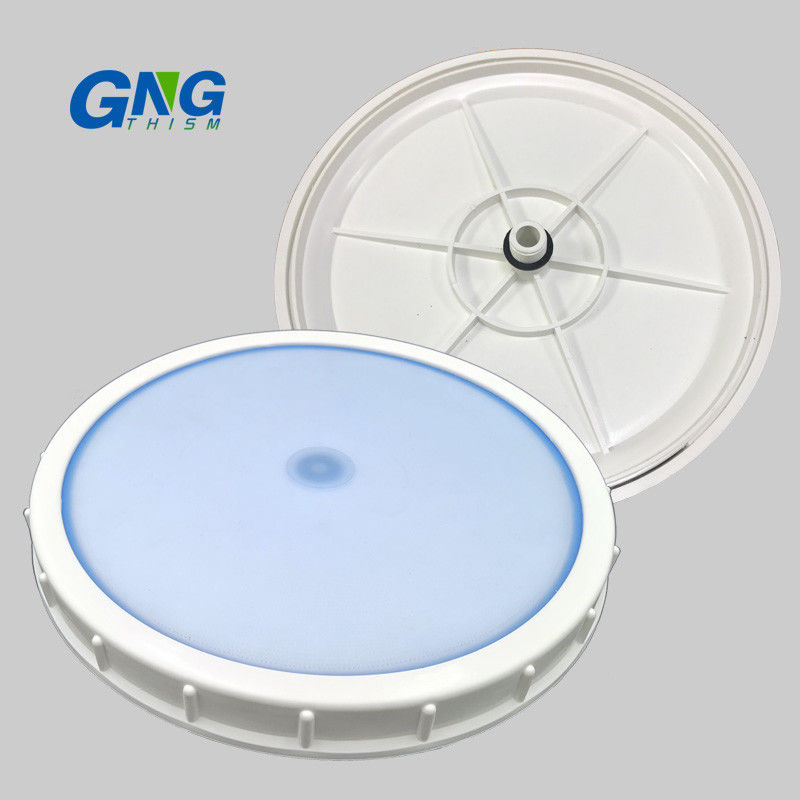

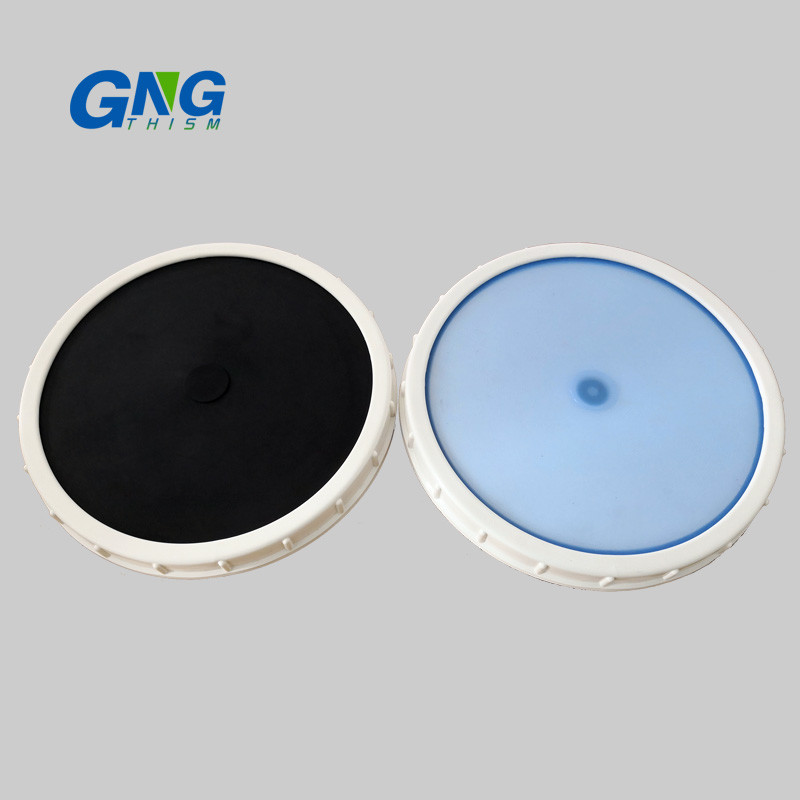

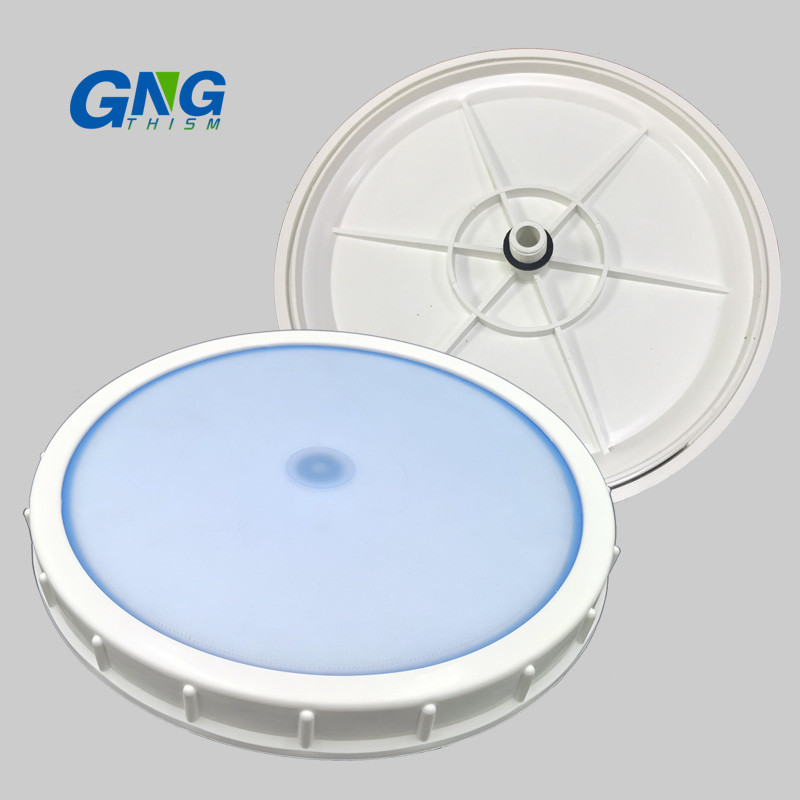

12 inch High oxygen Aerator Membrane Fine bubble Disc Diffuser
12 inch fine bubble diffuser is a subsurface form of diffusion in which air is introduced in the form of very small bubbles to aid or enhance the treatment of wastewater. It is used to dissolve oxygen into wastewater so that the microorganisms can utilize it while they break down organic material.
Technical Parameters
Model | GNBQ-150/170 | GNBQ-215 | GNBQ-260 | GNBQ-350 | GNBQ-650 |
Bubble Type | Coarse Bubble | Fine Bubble | Fine Bubble | Fine Bubble | Fine Bubble |
Size | 5/6 inch | 8 inch | 9 inch | 12 inch | 675*215mm |
Membrane Material | EPDM/SILICONE/PTFE | ||||
Base Material | ABS | Strengthened PP + GF (Glass Fiber) | ABS | ||
Connector | 3/4'' NPT male thread | ||||
Membrane Thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
Bubble Size | 4-5mm | 1-2mm | 1-2mm | 1-2mm | 1-2mm |
Design Flow | 1-5m3/h | 1.5-2.5m3/h | 3-4m3/h | 5-6m3/h | 6-14m3/h |
Flow Range | 6-9m3/h | 1-6m3/h | 1-8m3/h | 1-12m3/h | 1-16m3/h |
SOTE | ≥10% | ≥38% | ≥38% | ≥38% | ≥40% |
6m submerged | 6m submerged | 6m submerged | 6m submerged | 6m submerged | |
SOTR | ≥0.21kg O2/h | ≥0.31kg O2/h | ≥0.45kg O2/h | ≥0.75kg O2/h | ≥0.99kg O2/h |
SAE | ≥7.5kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥9.2kg O2/kw.h |
Headloss | 2000-3000Pa | 1500-4300Pa | 1500-4300Pa | 1500-4300Pa | 2000-3500Pa |
Service Area | 0.5-0.8m2/pcs | 0.2-0.64m2/pcs | 0.25-1.0m2/pcs | 0.4-1.5m2/pcs | 0.5-2.5m2/pcs |
Service Life | >5 years |
Features
• Ideal for air-on/air-off applications such as SBRs, aerobic digesters, and anoxic swing zones, as well as continuous operation
• Over 22 million diffusers installed in municipal and industrial applications worldwide
• Higher sustained efficiencies verified through 3rd party testing
• Advanced membrane perforation technique creates extremely fine, uniform bubble pattern for optimal oxygen transfer
• Low maintenance and long service life of more than 5 years
• Using imported raw material
