Place of Origin: | China |
---|---|
Brand Name: | GNGTHISM |
Certification: | CE/ISO9001 |
Model Number: | GNXG |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Standard export package |
Delivery Time: | 3~15 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 3000 cubic meters per month |
Material: | PP | Application: | Water Treatment |
---|---|---|---|
After-sales Service: | Video Technical Support | Color: | Black |
Aperture Size: | 25 ,30 , 35 Or 50mm | ||
High Light: | Waste Water Treatment lamella clarifier,1m lamella clarifier,pvc lamella clarifier |

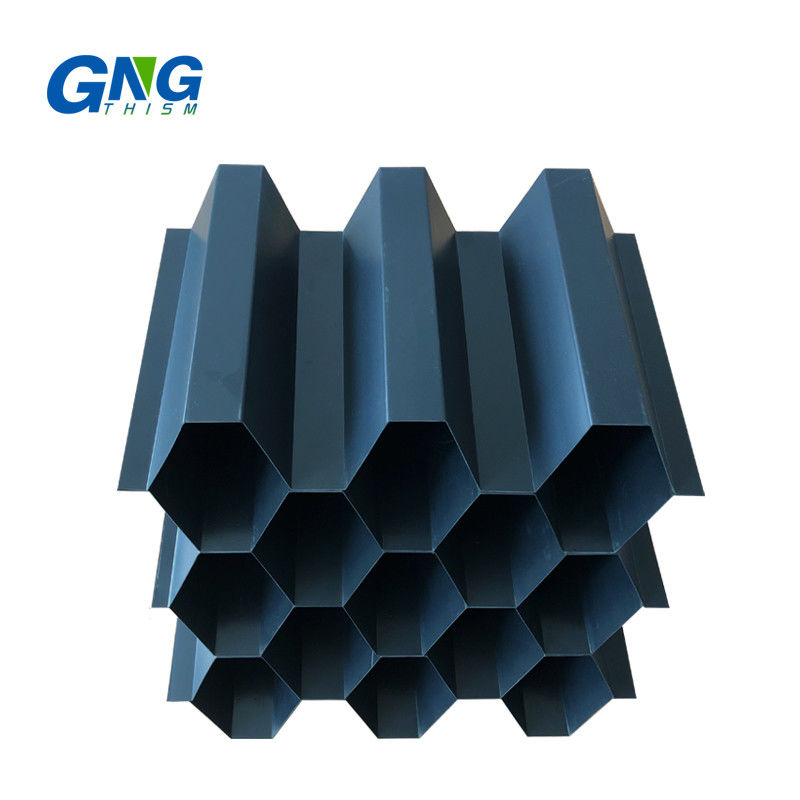

1m length PVC Lamella clarifier for Waste Water Treatment Tube Settle media
The modular and cubical self-supporting settler design of honeycombed inclined tube settler aids handling during installation and any subsequent maintenance.
PP PVC lamella clarifier tube settler media for trickling filter for sewage water treatment design avoids thin wall membranes and utilizes forming techniques to minimize component stress and subsequent environmental stress cracking fatigue.
PP PVC lamella clarifier inclined tube settler media for sewage water treatment offers an inexpensive method of upgrading existing water treatment plant clarifiers and sedimentation basins to improve performance. They can also reduce the tankage/footprint required in new installations or improve the performance of existing settling basins by reducing the solids loading on downstream filters.
Technical Parameter
Material | Aperture(mm) | Thickness(mm) | Pieces | Color |
PP | ø25 | 0.4 | 60 | White |
0.6 | ||||
0.8 | ||||
1 | ||||
1.2 | ||||
ø30 | 0.4 | 50 | ||
0.6 | ||||
0.8 | ||||
1 | ||||
1.2 | ||||
ø35 | 0.4 | 44 | ||
0.6 | ||||
0.8 | ||||
1 | ||||
1.2 | ||||
ø40 | 0.4 | 40 | ||
0.6 | ||||
0.8 | ||||
1 | ||||
1.2 | ||||
ø50 | 0.4 | 32 | ||
0.6 | ||||
0.8 | ||||
1 | ||||
1.2 | ||||
ø60 | 1.2 | 28 | ||
ø80 | 0.4 | 20 | ||
0.6 | ||||
0.8 | ||||
1.2 | ||||
PVC | Ø35 | 0.5 | 44 | Blue/Black |
0.8 | ||||
ø50 | 0.4 | 32 | ||
0.6 | ||||
0.8 | ||||
1 | ||||
ø80 | 0.4 | 20 | ||
0.6 | ||||
0.8 | ||||
1 |
Working Pinciple
Advantages
1. Process efficiency
From multiplication of the sedimentation area, chevron equidistant channel shape and adaptation of the settling area spacing and slope.
2. Flexible dimensions
It can be adapted to all kinds of shapes, inclinations, round settlers and allows cut outs.
3. Easy handling
Simple on site assembly method grants low cost, safe delivery to any place in the world.
4. Sophisticated support system
With stainless steel and specially shaped glass fibre reinforced plastic beams minimizing turbulence and sludge deposit.
5. Strong and high quality material
We provides high stability of the modules for easy maintenance – PVC material approved for high standards of potable water applications
Applications
● Wet scrubbing effluents
● Effluent treatment in pulp and paper mills
● Filter backwash
