| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNBQ |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2~10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pieces per month |
| Type: | Disc | Material Of Membrane Material: | EPDM |
|---|---|---|---|
| Support Dish Material: | Strengthened PP+glass Fiber | Connector: | 3/4'' NPT Male Thread |
| Size: | 8 Inch | Weight: | 0.5-1.2kgs |
| High Light: | fine bubble membrane diffusers,fine bubble aeration system |
||

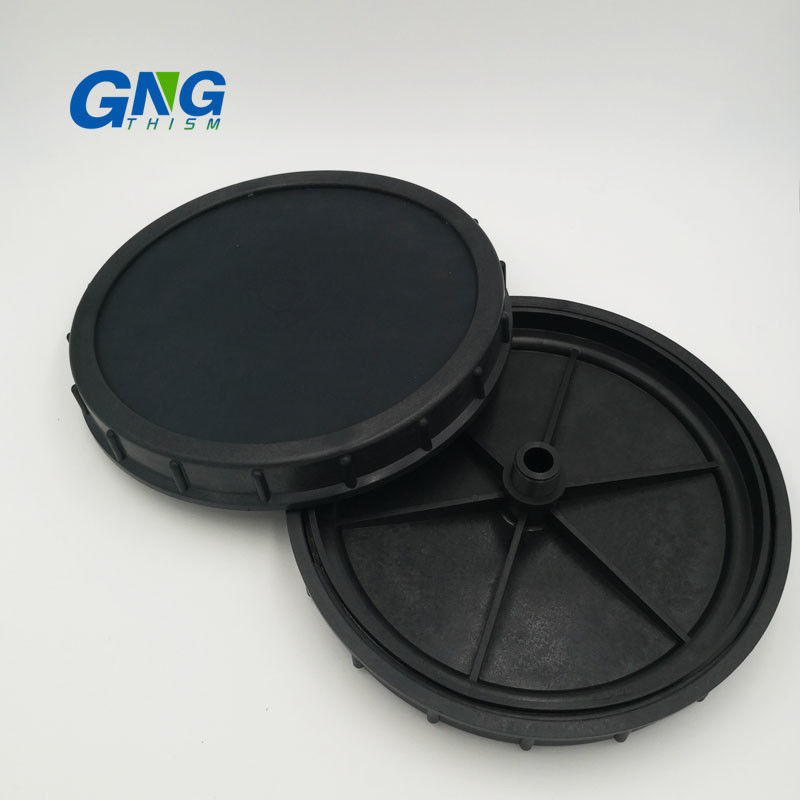

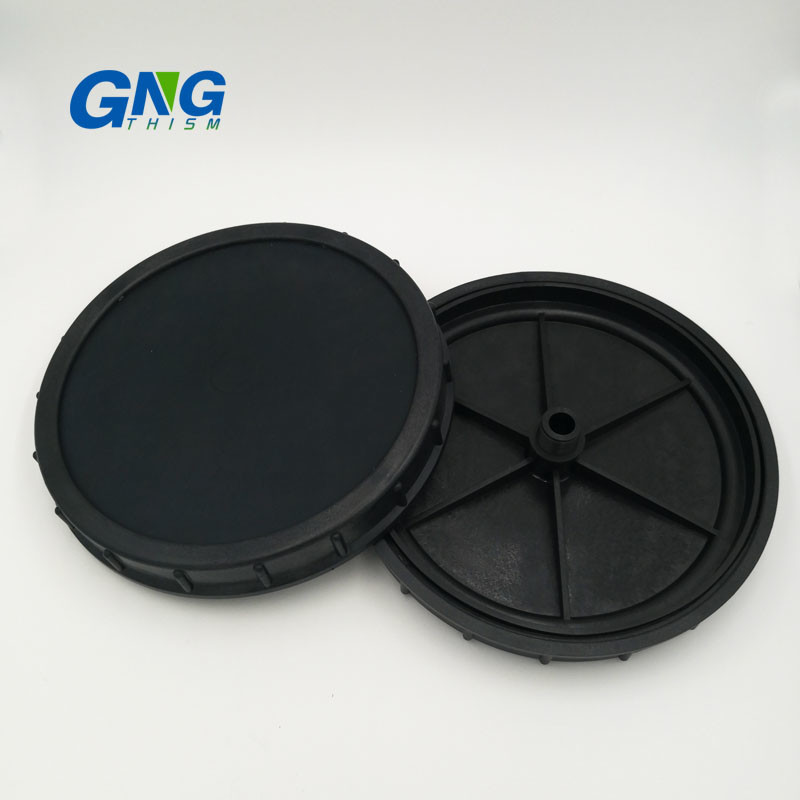

8 inch High oxygen Aerator Membrane Fine bubble Disc Diffuser
Fine bubble disc diffuser, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants.
GNGTHISM series fine bubble disc diffuser combines effective design, how installation costs, reliability and high performance in intermittent and continuous aeration processes. Special designed the slits cut opining, patterns and spacing between the slits for high oxygen transfer and longtime operation.
Technical Parameters
| Model | GNBQ-150/170 | GNBQ-215 | GNBQ-260 | GNBQ-350 | GNBQ-650 |
| Bubble Type | Coarse Bubble | Fine Bubble | Fine Bubble | Fine Bubble | Fine Bubble |
| Size | 5/6 inch | 8 inch | 9 inch | 12 inch | 675*215mm |
| Membrane Material | EPDM/SILICONE/PTFE | ||||
| Base Material | ABS | Strengthened PP + GF (Glass Fiber) | ABS | ||
| Connector | 3/4'' NPT male thread | ||||
| Membrane Thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Bubble Size | 4-5mm | 1-2mm | 1-2mm | 1-2mm | 1-2mm |
| Design Flow | 1-5m3/h | 1.5-2.5m3/h | 3-4m3/h | 5-6m3/h | 6-14m3/h |
| Flow Range | 6-9m3/h | 1-6m3/h | 1-8m3/h | 1-12m3/h | 1-16m3/h |
| SOTE | ≥10% | ≥38% | ≥38% | ≥38% | ≥40% |
| 6m submerged | 6m submerged | 6m submerged | 6m submerged | 6m submerged | |
| SOTR | ≥0.21kg O2/h | ≥0.31kg O2/h | ≥0.45kg O2/h | ≥0.75kg O2/h | ≥0.99kg O2/h |
| SAE | ≥7.5kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥9.2kg O2/kw.h |
| Headloss | 2000-3000Pa | 1500-4300Pa | 1500-4300Pa | 1500-4300Pa | 2000-3500Pa |
| Service Area | 0.5-0.8m2/pcs | 0.2-0.64m2/pcs | 0.25-1.0m2/pcs | 0.4-1.5m2/pcs | 0.5-2.5m2/pcs |
| Service Life | ＞5 years | ||||
Features
