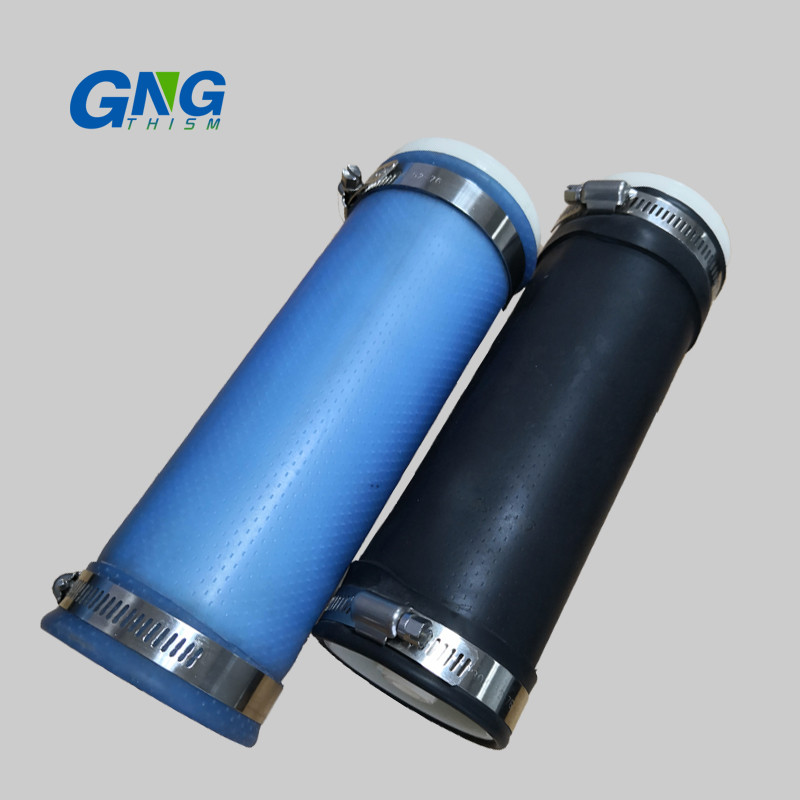

Aeration Fine Bubble Tube Diffuser / Membrane Micro Bubble Air Diffuser Tubing

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNBQ
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2~10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Type: Tube Membrane Material: EPDM/Silicone/TPU
Support Dish Material: UPVC/ABS Connector: 3/4'' NPT Male Thread
Application: Aquaculture/waste Water Treatment Certification: CE/ISO9001
High Light:

air diffuser tubing

,

epdm diffuser membrane

Aeration tubular membrane micro bubble air diffusion

Fine Bubble Tube Diffuser can be connected on one side or in pairs to different rectangular and round tubes (ABS material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation. The support tubes(ABS or PVC material)can be reused when membranes are replaced. The units offer maximum performance at minimum cost and require minimum maintenance.

Technical Parameters

Type Membrane Tube Diffuser
Model φ66 φ93 φ113
Length 500/750/1000mm 500/750/1000mm 500/750/1000mm
MOC EPDM/Silicon membrane ABS tube EPDM/Silicon membrane ABS/PP carrier plate EPDM/Silicon membrane ABS/PP carrier plate
Connector 1" NPT male thread 3/4" NPT male thread 1" NPT male thread 3/4" NPT male thread 1" NPT male thread 3/4" NPT male thread
Bubble Size 1-2mm 1-2mm 1-2mm
Design Flow 1.7-6.8m³/h 3.4-13.6m³/h 3.4-17.0m³/h
Flow Range 2-14m³/h 5-20m³/h 6-28m³/h
SOTE ≥40% (6m submerged) ≥40% (6m submerged) ≥40% (6m submerged)
SOTR ≥0.90kg O2/h ≥1.40kg O2/h ≥1.52kg O2/h
SAE ≥8.6kg O2/kw.h ≥8.6kg O2/kw.h ≥8.6kg O2/kw.h
Headloss 2200-4800Pa 2200-4800Pa 2200-4800Pa
Service Area 0.75-2.5m² 1.0-3.0m² 1.5-2.5m²
Service Life > 5 year > 5 year > 5 year

Diameter: 63mm, 93mm and 113mm
Length: 500mm-1000mm (500mm, 650mm, 750mm, 1000mm)
Interface: 3/4” male thread

Install Ways

Aeration Fine Bubble Tube Diffuser / Membrane Micro Bubble Air Diffuser Tubing 0

Application Fields

Packaging&Shipping

Aeration Fine Bubble Tube Diffuser / Membrane Micro Bubble Air Diffuser Tubing 1
