Place of Origin: | China |
---|---|
Brand Name: | GNGTHISM |
Certification: | CE/ISO9001 |
Model Number: | GNNBG |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | standard export package |
Delivery Time: | 3~15 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 30 sets per month |
Material: | SS304 Or SS316L | Application: | Wastewater Treatment |
---|---|---|---|
Color: | Silver | Certification: | CE &ISO9001 |
Origin: | Jiangsu, China | Customized: | Available |
High Light: | Micro Nano Bubble Generator,SS304 Nano Bubble Generator,Wastewater Treatment Nano Bubble Generator |

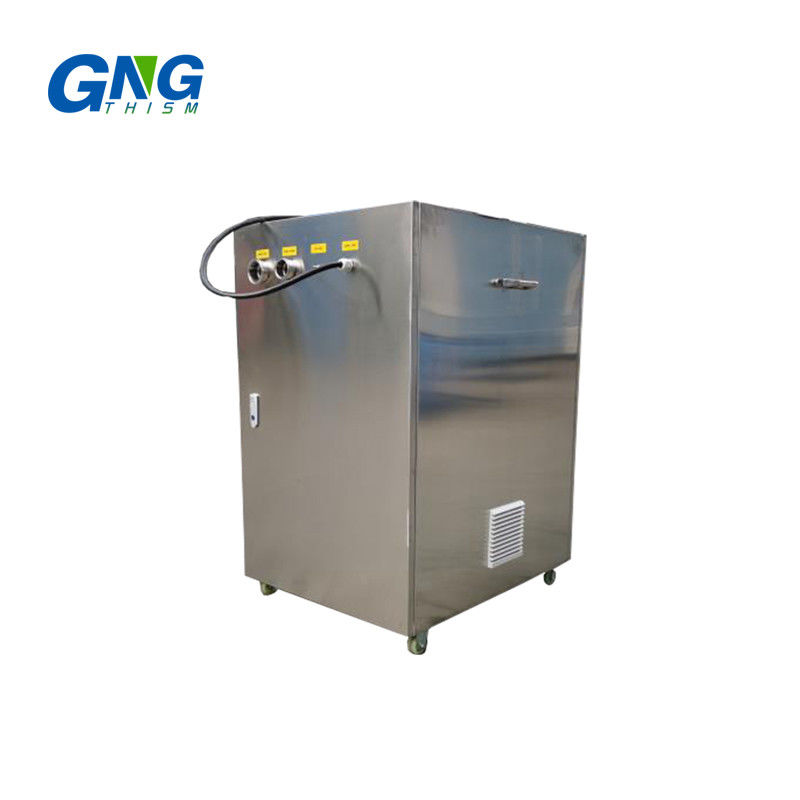

New Technology Dissolved Oxygen Micro Nano Bubble Generator
Nano bubbles are extremely small gas bubbles that have several unique physical properties that make them very different from normal bubbles. These properties make nanobubbles a superior aeration method for a number of applications around the world.
Technical Parameters
Model | GNNBG-01 | GNNBG-02 | GNNBG-05 | GNNBG-12 | GNNBG-30 |
Flow Rate | 1 | 2 | 5 | 12 | 30 |
(m3/h) | |||||
Power of Pump | 0.55 | 1.1 | 2.2 | 3 | 7 |
(KW) | |||||
Affected Water Area(m2/D) | 300-400 | 900-1200 | 1900-2600 | 4600-5300 | 12000-14000 |
Working Temps(℃) | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 |
Bubble Diameter(nm/μm) | 200nm-50μm | 200nm-50μm | 200nm-50μm | 200nm-50μm | 200nm-50μm |
Gas-liquid Mixture Ratio | 1:6-1:9 | 1:6-1:9 | 1:6-1:9 | 1:6-1:9 | 1:6-1:9 |
Gas-liquid Dissolving Rate | 85-90% | 85-90% | 85-90% | 85-90% | 85-90% |
Working Principle
Features
Stable performance, high efficiency, low noise.
Wide range of application, such as wastewater /gas treatment aquaculture, agricultural irrigation, bath and so on.
