Filter Mbbr Media / Plastic MBBR Moving Bed Biofilm Reactor Bio Packing

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNPE
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Double Woven Bag
Delivery Time: 3~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 cubic meters per month
Material: PE Application: Wastewater/Aquaculture
Color: Colorful Certification: CE Certificate /ISO9001
HS Code: 3926909090 Origin: China
High Light:

mbbr filter media

,

mbbr bio media

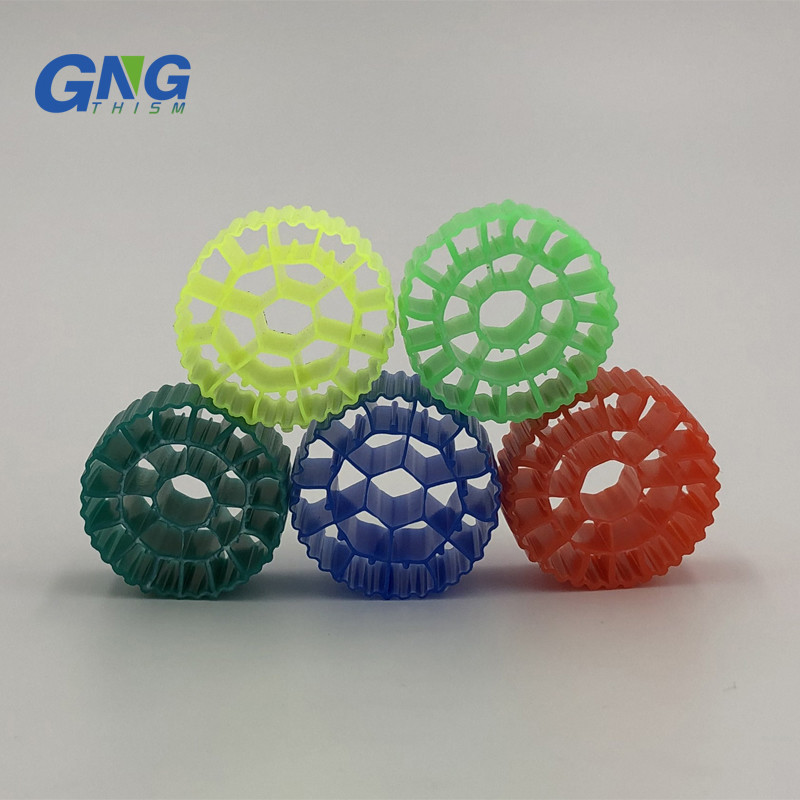

Plastic Biofilm Media Carrier Bio Packing Filter Mbbr Media

MBBR filter media, witch is short for moving bed bio-film reactor, is a novel biological active carrier. After researching on the different nature of water, we find that the micro-elements is conductive to micro-elements growing. So we adopt scientific formula and blend some micro-elements in the high polymer material. With special process modification, this kind of MBBR filter media possess the features of large surface area, good hydrophilic performance , high biological activity, short bio-film time, good erosive wear performance, long service time...etc.

Technical Parameter

Model   GNPE-01 GNPE-02 GNPE-03 GNPE-04 GNPE-05 GNPE-06 GNPE-07 GNPE-08 GNPE-09
Dimention mm φ12*9 φ11*7 φ10*7 φ16*10 φ25*10 φ25*10 φ35*18 φ6*10 φ15*15
Hole Numbers nos. 4 4 5 6 19 19 19 8 40
Protected surface area m2/m3 >800 >900 >1000 >800 >500 >500 >350 >3500 >900
Density g/cm3 0.96-0.98 0.96-0.98 0.96-0.98 0.96-0.98 0.96-0.98 1.02-1.05 0.96-0.98 1.02-1.05 0.96-0.98
Packing numbers pcs/m3 >630000 >830000 >850000 >260000 >97000 >97000 >33000 >2000000 >230000
Porosity % >85 >85 >85 >85 >90 >90 >92 >80 >85
Dosing ratio % 15-67 15-68 15-70 15-67 15-65 15-65 15-50 15-70 15-65
Membrane-forming time days 3--15 3--15 3--15 3--15 3--15 3--15 3--15 3--15 3--15
Nitrification efficiency gNH4-N/m3.d 400-1200 400-1200 400-1200 400-1200 400-1200 400-1200 300-800 500-1400 500-1400
BOD5 oxidation efficiency gBOD5/m3.d 2000-10000 2000-10000 2000-10000 2000-10000 2000-10000 2000-10000 1000-5000 2500-15000 2500-15000
COD oxidation efficiency gCOD/m3.d 2000-15000 2000-15000 2000-15000 2000-15000 2000-15000 2000-15000 1000-10000 2500-20000 2500-20000
Applicable temperature 5-60 5-60 5-60 5-60 5-60 5-60 5-60 5-60 5-60
Lifespan year >15 >15 >15 >15 >15 >15 >15 >15 >15



Main Features

1.Special formula and production technology, accelerating biological film formation ;
2.Larger effective surface area, obtaining more microorganism;
3.By bio-film decomposing technology, saving sludge return process;
4.High-efficiency in ammonia-nitrogen removing and dephosphorization, improving the water quality;
5.Lower energy consumption, saving space and shorten technology process.
6.Filter media's gravity is closed to the water.
