Municipal Sewage SS316L 10mm Perforations Spiral Screw Screen

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case/Container
Delivery Time: 10~20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Perforated Drum Perforations: 1.0 To 10 Mm Wedge Wire Mesh Drum Openings: 0.5 To 10 Mm
Mounting: Channel Or Tank Material: SS304
Origin: Jiangsu, China Capacity: 5-150 M3/h
Power: 0.75kw Keywords: Screw Screen For Wastewater Treatment
High Light:

10mm Perforations Spiral Screw Screen

,

SS316L Spiral Screw Screen

,

SS316L Perforated Screw Screen

Municipal Sewage SS 316L 10mm Perforations Spiral Screw Screen



Screw Screen Main Features


Screw Screen Technical Parameter

Model Flow Rate(m³/h) Grid Gap(mm) Power(kw) Dimension(m) Material
GNKGF-400 10-50 1-6mm 0.75KW 3.7*0.5*1.0m SS304/316L
GNKGF-500 10-80 1-6mm 0.75KW 3.8*0.6*1.0m SS304/316L
GNKGF-600 20-100 1-6mm 0.75KW 3.9*0.7*1.0m SS304/316L
GNKGF-700 20-150 1-6mm 1.1KW 4.0*0.8*1.0m SS304/316L



Screw Screen Suitable for the Following Industries;

Screw Screen Function

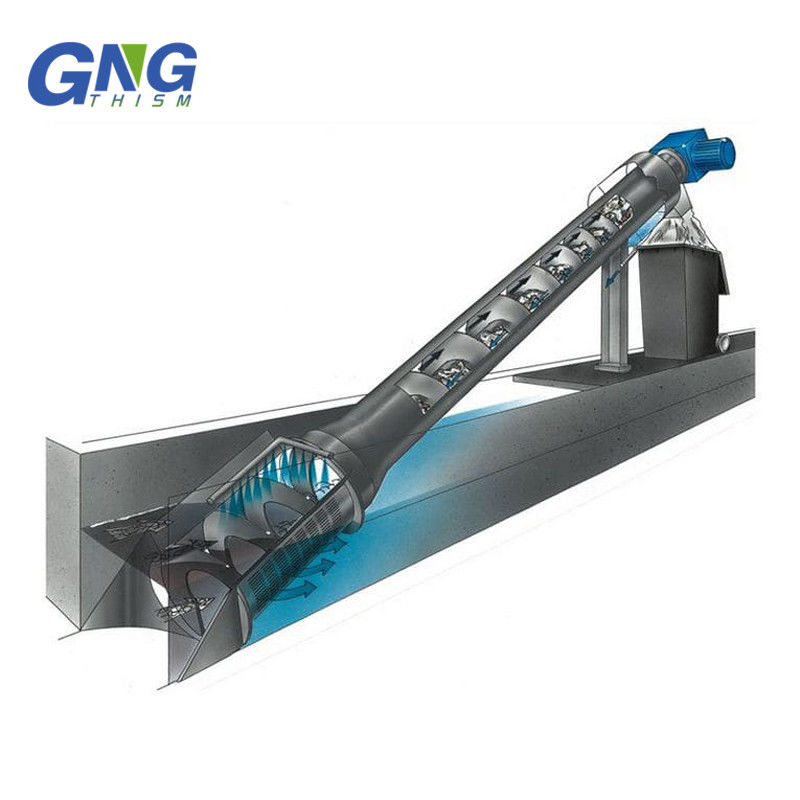

The process starts on the screen that holds back solids only. The internal part of the screen is continuously cleaned by brushes fixed on the outside diameter of the flighting. As the water runs through the screen the shaftless spiral conveys the solids up towards the compaction module where the material is further de-watered. Depending on the material properties, screenings can be reduced by more than 50% of their original volume.



We offer a complete line of in channel or in-tank screening systems. Each unit utilizes a perforated plate or v-wire screen section to effectively remove unwanted solids and debris from the influent. The screenings are transported via a shaftless conveyor to the compactor and washing zone, where they are cleaned, dewatered, then finally discarded into a receptacle or optional bagging system. Screens can be installed in-channel or in a self-contained stainless steel tank.

Municipal Sewage SS316L 10mm Perforations Spiral Screw Screen 0

Municipal Sewage SS316L 10mm Perforations Spiral Screw Screen 1



Company Introduction:

Jiangsu Guonong Environmental Protection Co., Ltd is the professional water treatment R&D manufacturer. It is located in Yixing city, Jiangsu Province, China. Our products include Fine Bubble Disc Diffuser, MBBR Media , Sludge Dewatering Machine, Automatic Chemical Dosing System. Dissolved Air Flotation(DAF), Drum Filter Screen, Screens and Fine Screens, Grit-water separator, Screw Conveyor, Nano Bubble Generator, etc.

After years of exploration and practice, our company has developed into a comprehensive service system.

Now ,more than 80% of our products are exported to Southeast Asia, The Middle East, Europe, North America, Latin America , and so on. We also have many agents in Southeast Asia, North America and Latin America.

We insist on "Quality first, Reputation Foremost", our mission is" To be the best integrated water treatment supplier Worldwide".





FAQ

Q: Whether your company is factory or trading company?
A: Our company has its own workshop, so we can provide the the best quality and the lowest price for you.



Q: How long is your warranty?
A: One year after the arrival of the goods. During this period, we will provide the damaged parts for free if not man-made damage.


Q: What about your delivery time?
A: Normally within 30 days against down payment.

Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.



Q. Is there any other equipment used in sludge treatment?

Yes, including sludge dewatering machine, polymer dosing system, sludge thickener, conveyor device, rotary drum screen, coarse screen, dissolved air flotation(daf system), sludge scraper bridge, etc. If you are interested, contact us for further information.
