Place of Origin: | China |
---|---|
Brand Name: | GNGTHISM |
Certification: | CE/ISO9001 |
Model Number: | GNPE |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Double Woven Bag |
Delivery Time: | 3~15 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 3000 cubic meters per month |
Material: | PE | Application: | Wastewater |
---|---|---|---|
Color: | White/Black | HS Code: | 3926909090 |
Method: | Biological Treatment | Lifespan: | >15 Years |
High Light: | mbbr bio media,moving bed bio filter media |

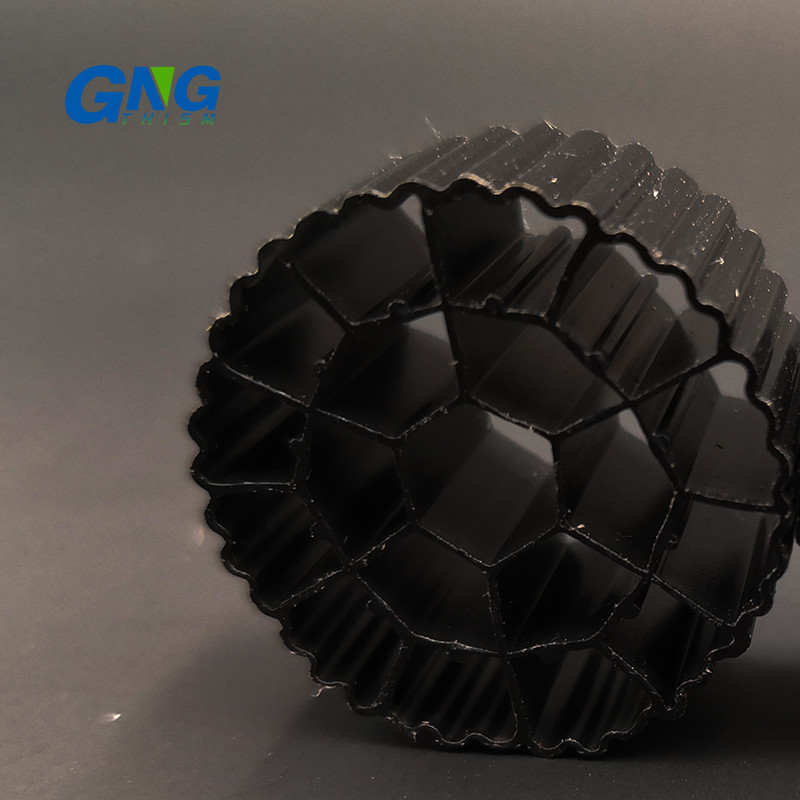

Plastic Mbbr Filter Bio Media for Water Treatment and Aquaculture
k5 mbbr media can be used in both aerobic process and anaerobic process.MBBR is a cost-effective solution for existing activated sludge plants that need more advanced treatment. Because little or no additional tankage is required, it is an ideal solution for plants with limited space for expansion. k5 mbbr media is also an excellent choice for space efficient, high performance new plant designs.
Technical Parameter
Model | GNPE-01 | GNPE-02 | GNPE-03 | GNPE-04 | GNPE-05 | GNPE-06 | GNPE-07 | GNPE-08 | GNPE-09 | |
Dimention | mm | φ12*9 | φ11*7 | φ10*7 | φ16*10 | φ25*10 | φ25*10 | φ35*18 | φ6*10 | φ15*15 |
Hole Numbers | nos. | 4 | 4 | 5 | 6 | 19 | 19 | 19 | 8 | 40 |
Protected surface area | m2/m3 | >800 | >900 | >1000 | >800 | >500 | >500 | >350 | >3500 | >900 |
Density | g/cm3 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 1.02-1.05 | 0.96-0.98 | 1.02-1.05 | 0.96-0.98 |
Packing numbers | pcs/m3 | >630000 | >830000 | >850000 | >260000 | >97000 | >97000 | >33000 | >2000000 | >230000 |
Porosity | % | >85 | >85 | >85 | >85 | >90 | >90 | >92 | >80 | >85 |
Dosing ratio | % | 15-67 | 15-68 | 15-70 | 15-67 | 15-65 | 15-65 | 15-50 | 15-70 | 15-65 |
Membrane-forming time | days | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 |
Nitrification efficiency | gNH4-N/m3.d | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 300-800 | 500-1400 | 500-1400 |
BOD5 oxidation efficiency | gBOD5/m3.d | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 1000-5000 | 2500-15000 | 2500-15000 |
COD oxidation efficiency | gCOD/m3.d | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 1000-10000 | 2500-20000 | 2500-20000 |
Applicable temperature | ℃ | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
Lifespan | year | >15 | >15 | >15 | >15 | >15 | >15 | >15 | >15 | >15 |
Main Features
1.Geometric configuration based on hydrodynamics to strengthen the surface adhesive ability. it is polymer material, having high shock resistance.
2.Large specific surface aera, many adhesive biologia. It not only provides the room for heterotrophic bacteria growing but also create the condition for autotrophic bacteria growing. Meanwhile, it is beneficial for the biologia to denitrification and dephosphorization.
3.No need of bracket, easy to fluidify, save energy consumption.The suitable specific weight makes the filler in suspended fluidization state, reducing the eneray consumption and increasing the shock and cutting of bubbles. In the same condition, the aeration amount can be lowered by above 10%.
Application Field
1. All types of industrial and domestic wastewater.
2. Both organic as nitrogen removal.
3. New plants or system upgrades.
4. Limited footprint.
