Self Cleaning 2.0m3/H SS304 Volute Sludge Dewatering Machine

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNDS-131
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case/Container
Delivery Time: 10~20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Material: SS304/SS316L Application: Sludge Treatment
Service Life: >5 Years Certification: CE/ISO9001
Dimension: 2000*736*950 Weight: 200Kg
Type: GNDS-353
High Light:

2.0m3/H Volute Sludge Dewatering Machine

,

SS304 Volute Sludge Dewatering Machine

,

SS304 volute dewatering press

Sludge Dewatering Machine Volute Dewatering Screw Press

As a new type of dewatering equipment, widely used for different industries wastewater treatment. To guarantee the high quality of our machine, we choose high-quality raw material, the component from famous brands.

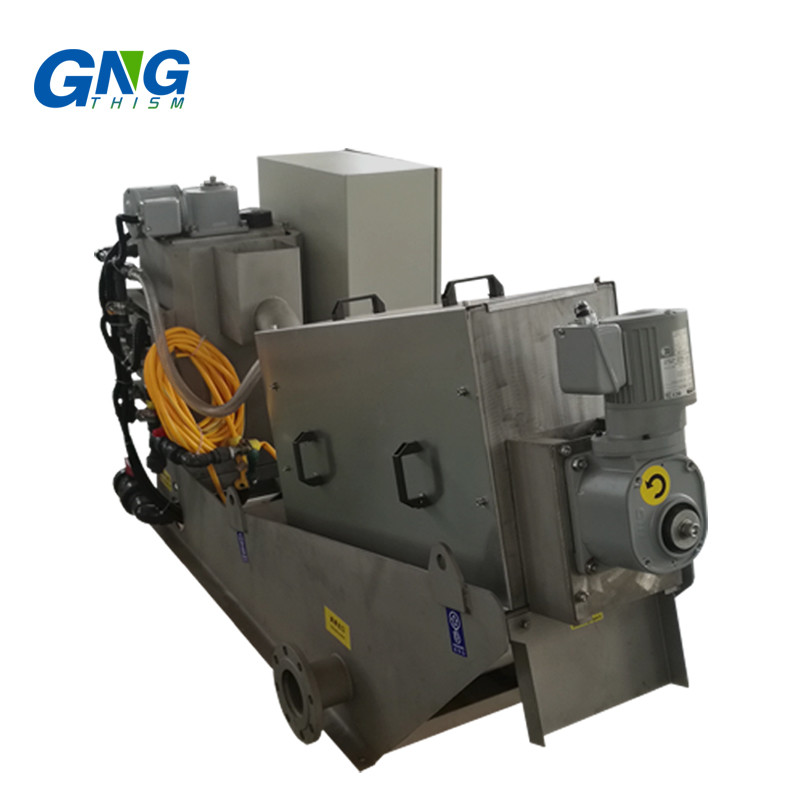

Self Cleaning 2.0m3/H SS304 Volute Sludge Dewatering Machine 0





Advantage

Low operation cost: 40% of Belt Press, 20% of Decanter Centrifugal
Power-saving: 5% of Decanter Centrifugal
Water-saving: 0.1% of Belt Press
Polymer-saving: Save 60% polymer in average
Compact Design: Save space and 60% construction cost
Non-clogging Design: Handle oily sludge easily

Working Principle

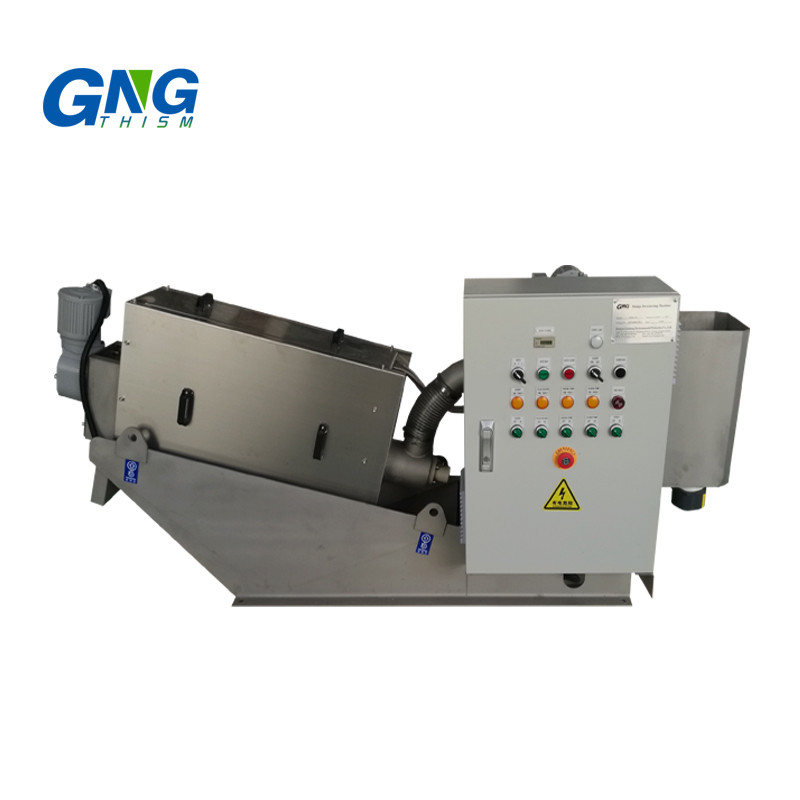

Self Cleaning 2.0m3/H SS304 Volute Sludge Dewatering Machine 1

Component Display

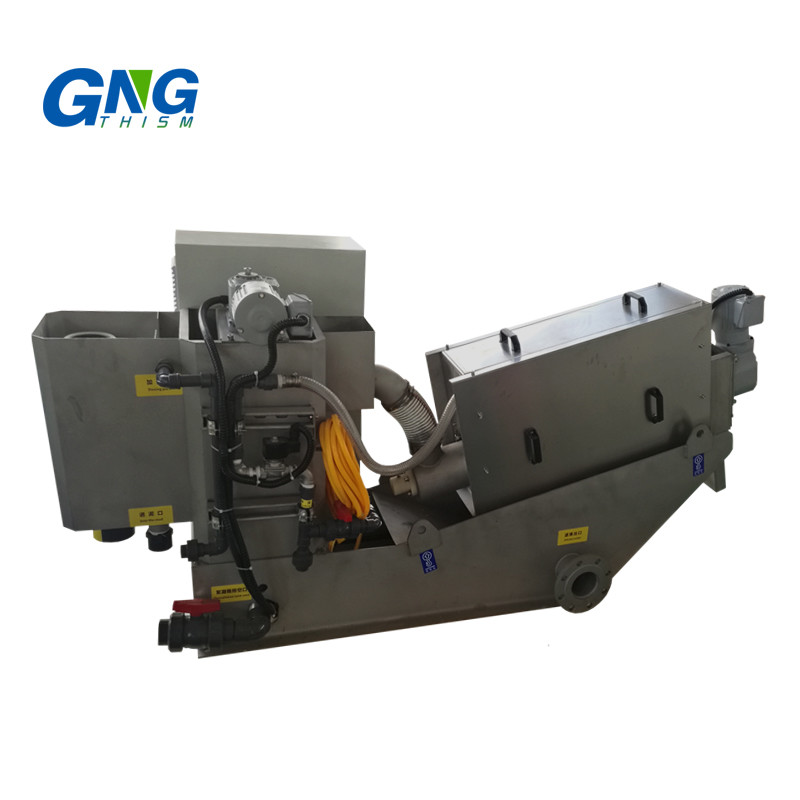

Self Cleaning 2.0m3/H SS304 Volute Sludge Dewatering Machine 2

Electrical Control

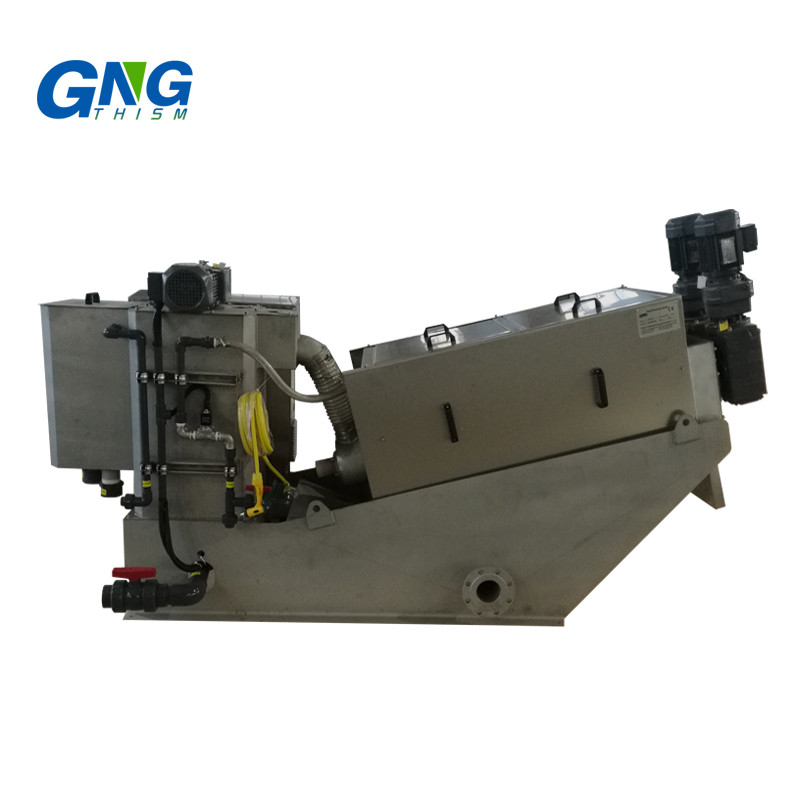

Self Cleaning 2.0m3/H SS304 Volute Sludge Dewatering Machine 3

Technical Parameters

Type Raw wastewater/waste actived sludge chemically precipitated Dissloved-air sludge Mixed raw
sludge
Sludge
concentration(TS)
0.2% 1.0% 2.0% 5.0% 3.0%
GNDS-131 4kg-DS/h
(2.0m³/h)
6kg-DS/h
(0.6m³/h)
10kg-DS/h
(0.5m³/h)
20kg-DS/h
(0.4m³/h)
26kg-DS/h
(0.87m³/h)
GNDS-132 8kg-DS/h
(4.0m³/h)
12kg-DS/h
(1.2m³/h)
20kg-DS/h
(1.0m³/h)
40kg-DS/h
(0.8m³/h)
52kg-DS/h
(1.73m³/h)
GNDS-133 12kg-DS/h
(6.0m³/h)
18kg-DS/h
(1.8m³/h)
30kg-DS/h
(1.5m³/h)
60kg-DS/h
(1.2m³/h)
72kg-DS/h
(2.61m³/h)
GNDS-201 8kg-DS/h
(4.0m³/h)
12kg-DS/h
(1.2m³/h)
20kg-DS/h
(1.0m³/h)
40kg-DS/h
(0.8m³/h)
52kg-DS/h
(1.73m³/h)
GNDS-202 16kg-DS/h
(8.0m³/h)
24kg-DS/h
(2.4m³/h)
40kg-DS/h
(2.0m³/h)
80kg-DS/h
(1.6m³/h)
104kg-DS/h
(3.47m³/h)
GNDS-203 24kg-DS/h
(12.0m³/h)
36kg-DS/h
(3.6m³/h)
60kg-DS/h
(3.0m³/h)
120kg-DS/h
(2.4m³/h)
156kg-DS/h
(5.20m³/h)
GNDS-301 20kg-DS/h
(10.0m³/h)
30kg-DS/h
(3.0m³/h)
50kg-DS/h
(2.5m³/h)
30kg-DS/h
(2.0m³/h)
30kg-DS/h
(4.33m³/h)
GNDS-302 40kg-DS/h
(20.0m³/h)
60kg-DS/h
(6.0m³/h)
100kg-DS/h
(5.0m³/h)
200kg-DS/h
(4.0m³/h)
260kg-DS/h
(8.67m³/h)
GNDS-303 60kg-DS/h
(30.0m³/h)
90kg-DS/h
(9.0m³/h)
150kg-DS/h
(7.5m³/h)
300kg-DS/h
(6.0m³/h)
390kg-DS/h
(13.0m³/h)
GNDS-304 80kg-DS/h
(40.0m³/h)
120kg-DS/h
(12.0m³/h)
200kg-DS/h
(10.0m³/h)
400kg-DS/h
(8.0m³/h)
520kg-DS/h
(17.3m³/h)
GNDS-351 40kg-DS/h
(20.0m³/h)
60kg-DS/h
(6.0m³/h)
100kg-DS/h
(5.0m³/h)
200kg-DS/h
(4.0m³/h)
260kg-DS/h
(8.67m³/h)
GNDS-352 80kg-DS/h
(40.0m³/h)
120kg-DS/h
(12.0m³/h)
200kg-DS/h
(10.0m³/h)
400kg-DS/h
(8.0m³/h)
520kg-DS/h
(17.3m³/h)
GNDS-353 120kg-DS/h
(60.0m³/h)
180kg-DS/h
(18.0m³/h)
300kg-DS/h
(15.0m³/h)
600kg-DS/h
(12.0m³/h)
780kg-DS/h
(26.0m³/h)
GNDS-354 160kg-DS/h
(80.0m³/h)
240kg-DS/h
(24.0m³/h)
400kg-DS/h
(20.0m³/h)
800kg-DS/h
(16.02m³/h)
1040kg-DS/h
(34.68m³/h)
GNDS-401 70kg-DS/h
(35m³/h)
100kg-DS/h
(10m³/h)
170kg-DS/h
(8.5m³/h)
340kg-DS/h
(6.5m³/h)
442kg-DS/h
(16.0m³/h)
GNDS-402 135kg-DS/h
(67.5m³/h)
200kg-DS/h
(20.0m³/h)
340kg-DS/h
(17.0m³/h)
680kg-DS/h
(13.6m³/h)
884kg-DS/h
(29.5m³/h)
GNDS-403 200kg-DS/h
(100m³/h)
300kg-DS/h
(30.0m³/h)
510kg-DS/h
(25.5m³/h)
1020kg-DS/h
(20.4m³/h)
1326kg-DS/h
(44.2m³/h)
GNDS-404 266kg-DS/h
(133m³/h)
400kg-DS/h
(40.0m³/h)
680kg-DS/h
(34.0m³/h)
1360kg-DS/h
(27.2m³/h)
1768kg-DS/h
(58.9m³/h)

Standardized Production

Self Cleaning 2.0m3/H SS304 Volute Sludge Dewatering Machine 4
