Place of Origin: | China |
---|---|
Brand Name: | GNGTHISM |
Certification: | CE/ISO9001 |
Model Number: | GNCF |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | standard export package |
Delivery Time: | 10~20days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20 sets per month |
Material: | SS304/SS316L | Power: | 0.37-1.5kw |
---|---|---|---|
Capacity: | 10-5000m³/d | Appliction: | Sewage Treatment |
MOQ: | 1 Set | OEM: | Yes |
High Light: | bar screen rake,bar rack water treatment |

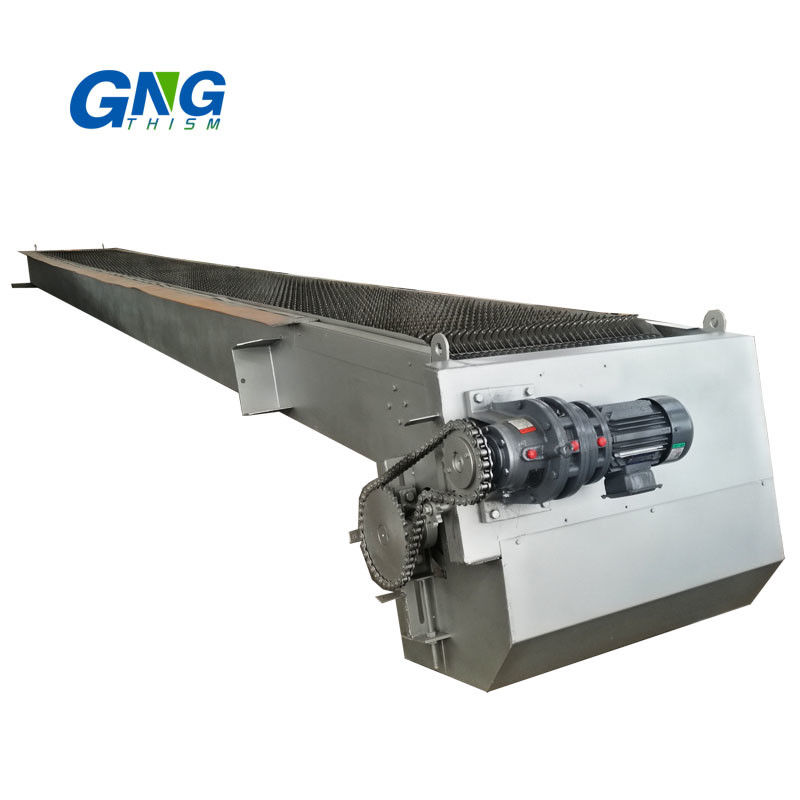

High quality mechanical rake bar screen for wastewater treatment
Fine bar screen is one of the important dirt pretreated and blocked equipment in the wastewater treatment. It can be applied for municipal sewage, drainage pumping plant, industrial wastewater.
Structure and Working Principles

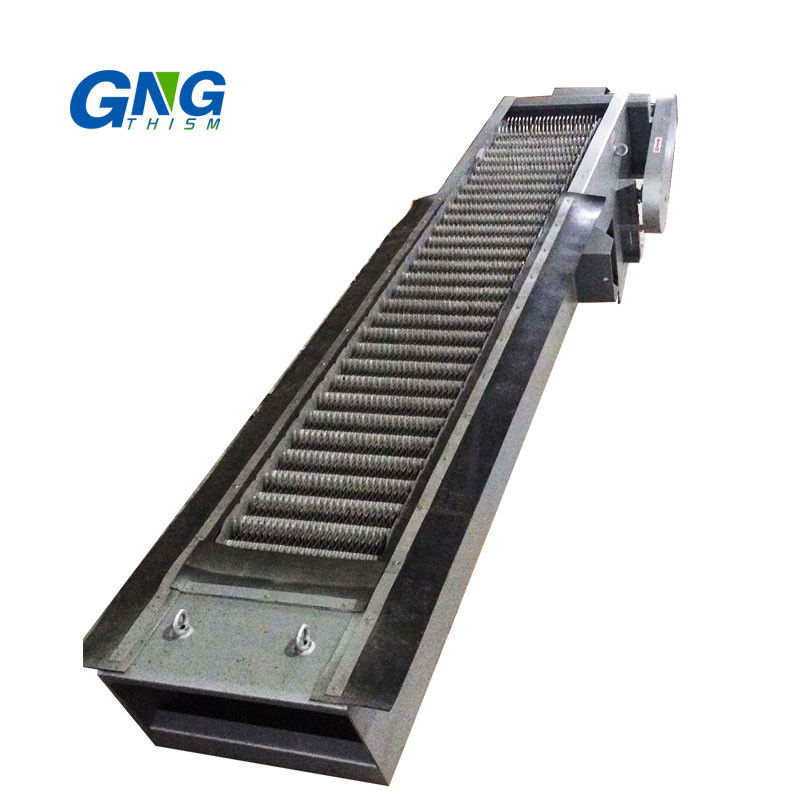

This device is provided with several special-shaped teeth which are assembled on the teeth axis based on certain ordering, forming the sealed teeth chain. The lower part is installed in the water inlet. If the chain wheel rotates directionally with even speed, the whole rake chain will move accordingly. Under such circumstances, the solid sundries attached to the tooth will be separated from the liquid and the fluid will flow away through the gap. When the rake chain arrives at its upper end, each group of rakes will carry on self-cleaning by dropping out most of the solid material under gravity and guideline rail, while the rest of the solid will be tidied clean by back running brush. The whole process is carried out continuously and automatically so as to achieve the goal of solid-liquid separation.
Technical Parameters
Model Parameter |
GNCF -500 |
GNCF -600 | GNCF -700 |
GNCF -800 |
GNCF -900 |
GNCF -1000 |
GNCF -1100 |
GNCF -1200 |
GNCF -1300 |
GNCF -1400 |
GNCF -1500 |
|
Device Width(mm) | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | |
Channel Width B1(mm) | B+100 | |||||||||||
Effective Grille Spacing B2(mm) | B-157 | |||||||||||
Anchor Bolts Spacing B3(mm) | B+200 | |||||||||||
Total Width B4(mm) | B+350 | |||||||||||
Teeth Spacing b(mm) | t=100 | 1≤b≤10 | ||||||||||
t=150 | 10<b≤50 | |||||||||||
Installing Angle α(˚) | 60-85 | |||||||||||
Channel Depth H(mm) | 800-12000 | |||||||||||
Height Between Discharge Port and Platform H1(mm) | 600-1200 | |||||||||||
Total Height H2(mm) | H+H1+1500 | |||||||||||
Back Rack Height H3(mm) | t=100 | ≈1000 | ||||||||||
t=150 | ≈1000 | |||||||||||
Screen Speed v(m/min) | ≈2.1 | |||||||||||
Motor Power N(kw) | 0.55-1.1 | 0.75-1.5 | 1.1-2.2 | 1.5-3.0 | ||||||||
Head Loss(mm) | ≤20(no jam) | |||||||||||
Civil Load | P1(KN) | 20 | 25 | |||||||||
P2(KN) | 8 | 10 | ||||||||||
△P(KN) | 1.5 | 2 |
Model Parameter |
GNCF-500 | GNCF-600 | GNCF-700 | GNCF-800 | GNCF-900 | GNCF-1000 | GNCF-1100 | GNCF-1200 | GNCF-1300 | GNCF-1400 | GNCF-1500 | ||
Flow Depth H3(m) | 1 | ||||||||||||
Flow Velocity V(m/s) | 0.8 | ||||||||||||
Grid Spacing b(mm) | 1 | Flow Rate Q(m3/s) | 0.03 | 0.04 | 0.05 | 0.06 | 0.07 | 0.08 | 0.08 | 0.09 | 0.1 | 0.11 | 0.12 |
3 | 0.07 | 0.09 | 0.1 | 0.12 | 0.14 | 0.16 | 0.18 | 0.2 | 0.22 | 0.24 | 0.26 | ||
5 | 0.09 | 0.11 | 0.14 | 0.16 | 0.18 | 0.21 | 0.23 | 0.26 | 0.28 | 0.31 | 0.33 | ||
10 | 0.11 | 0.14 | 0.17 | 0.21 | 0.24 | 0.27 | 0.3 | 0.33 | 0.37 | 0.4 | 0.43 | ||
15 | 0.13 | 0.16 | 0.2 | 0.24 | 0.27 | 0.31 | 0.34 | 0.38 | 0.42 | 0.45 | 0.49 | ||
20 | 0.14 | 0.17 | 0.21 | 0.25 | 0.29 | 0.33 | 0.37 | 0.41 | 0.45 | 0.49 | 0.53 | ||
25 | 0.14 | 0.18 | 0.22 | 0.27 | 0.31 | 0.35 | 0.39 | 0.43 | 0.47 | 0.51 | 0.55 | ||
30 | 0.15 | 0.19 | 0.23 | 0.27 | 0.32 | 0.36 | 0.4 | 0.45 | 0.49 | 0.53 | 0.57 | ||
40 | 0.15 | 0.2 | 0.24 | 0.29 | 0.33 | 0.38 | 0.42 | 0.46 | 0.51 | 0.55 | 0.6 | ||
50 | 0.16 | 0.2 | 0.25 | 0.29 | 0.34 | 0.39 | 0.43 | 0.48 | 0.52 | 0.57 | 0.61 |
Application
It is mainly used in municipal sewage treatment plants, residential quarters sewage pretreatment devices, municipal sewage pumping stations, waterworks and power plants, also it can widely be applied to water treatment projects of various industries, such as textile, printing and dyeing, food, fishery, paper, wine, butchery, curriery etc.
