1.1KW No Jamming Shaftless Perforated Inlet Wastewater Screw Screen

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case/Container
Delivery Time: 10~20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Flow Rate(m³/h): 20-150m3/H Grid Gap(mm): 6mm
Feature: No Jamming Material: SS304
Power(kw): 0.75KW Capacity: 5-150 M3/h
Power: 1.1KW Producti Name: Screw Sieve Screens
Troughs: U Shaped
High Light:

Shaftless wastewater screw screen


1.1KW wastewater screw screen


Shaftless Inlet Screw Screen

20-150m3/H 1.1KW U Troughs Economic Screw Sieve Screens​


GNG screw screen is a compact and economic screen for the separation, dewatering and transport of screenings. screw screen is specifically designed for the flow of the plant, separation requirements, separation requirements and outlet height. Also, for ease of maintenance and cleaning, U-troughs with removable covers are included.


Screw Screen Features:

Screw Screen Technical Parameter

Model Flow Rate(m³/h) Grid Gap(mm) Power(kw) Dimension(m) Material
GNKGF-400 10-50 1-6mm 0.75KW 3.7*0.5*1.0m SS304/316L
GNKGF-500 10-80 1-6mm 0.75KW 3.8*0.6*1.0m SS304/316L
GNKGF-600 20-100 1-6mm 0.75KW 3.9*0.7*1.0m SS304/316L
GNKGF-700 20-150 1-6mm 1.1KW 4.0*0.8*1.0m SS304/316L



Screw Screen Operating Principle

Particles that are collected on the filtering mesh of the screen are moved up along the barrel by a rotating spiral. At the same time, the mesh is thoroughly cleaned by peripheral brushes.


Waste compacting is achieved by the decreasing screw pitch. The organic contaminants are flushed from the waste by spray water from washing nozzles on the top of the barrel. Washing water and water pressed from the solid material is taken to the channel upstream of the screen by a pipeline. Washed and drained screenings are discharged into a waste bin at the discharge zone. The screen operation periodicity depends on the equipment automation scheme.


Screw Screen Function

The separation process starts inside the screen which holds back solids only. The internal part of the screen is continuously cleaned by special brushes fixed on the outside diameter of the spiral. As the water runs through the screen the shaftless spiral conveys the solids up towards the compacting module where the material is further de-watered. Depending on the material properties, screenings can be reduced by more than 35% of their original volume.

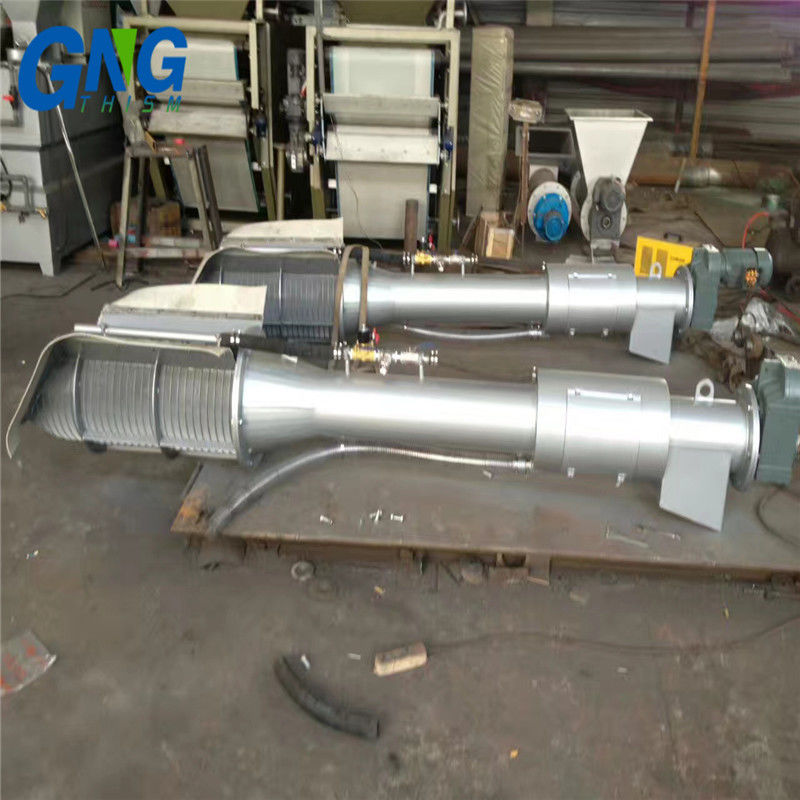

1.1KW No Jamming Shaftless Perforated Inlet Wastewater Screw Screen 0

1.1KW No Jamming Shaftless Perforated Inlet Wastewater Screw Screen 1


Company Introduction:

Jiangsu Guonong Environmental Protection Co., Ltd is the professional water treatment R&D manufacturer. It is located in Yixing city, Jiangsu Province, China. Our products include Fine Bubble Disc Diffuser, MBBR Media , Sludge Dewatering Machine, Automatic Chemical Dosing System. Dissolved Air Flotation(DAF), Drum Filter Screen, Screens and Fine Screens, Grit-water separator, Screw Conveyor, Nano Bubble Generator, etc.

After years of exploration and practice, our company has developed into a comprehensive service system.

Now ,more than 80% of our products are exported to Southeast Asia, The Middle East, Europe, North America, Latin America , and so on. We also have many agents in Southeast Asia, North America and Latin America.

We insist on "Quality first, Reputation Foremost", our mission is" To be the best integrated water treatment supplier Worldwide".




Q: Whether your company is factory or trading company?
A: Our company has its own workshop, so we can provide the the best quality and the lowest price for you.


Q: How long is your warranty?
A: One year after the arrival of the goods. During this period, we will provide the damaged parts for free if not man-made damage.

Q: What about your delivery time?
A: Normally within 30 days against down payment.

Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.


Q. Is there any other equipment used in sludge treatment?

Yes, including sludge dewatering machine, polymer dosing system, sludge thickener, conveyor device, rotary drum screen, coarse screen, dissolved air flotation(daf system), sludge scraper bridge, etc. If you are interested, contact us for further information.
