| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNXG |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 3~15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 cubic meters per month |
| Material: | PVC Material | Application: | Water Treatment Plant |
|---|---|---|---|
| After-sales Service: | Video Technical Support | Color: | Black |
| Aperture Size: | 25,30,50mm | ||
| High Light: | honeycomb packing tube settler media,hexagonal tube settler media,25mm tube settler media |
||

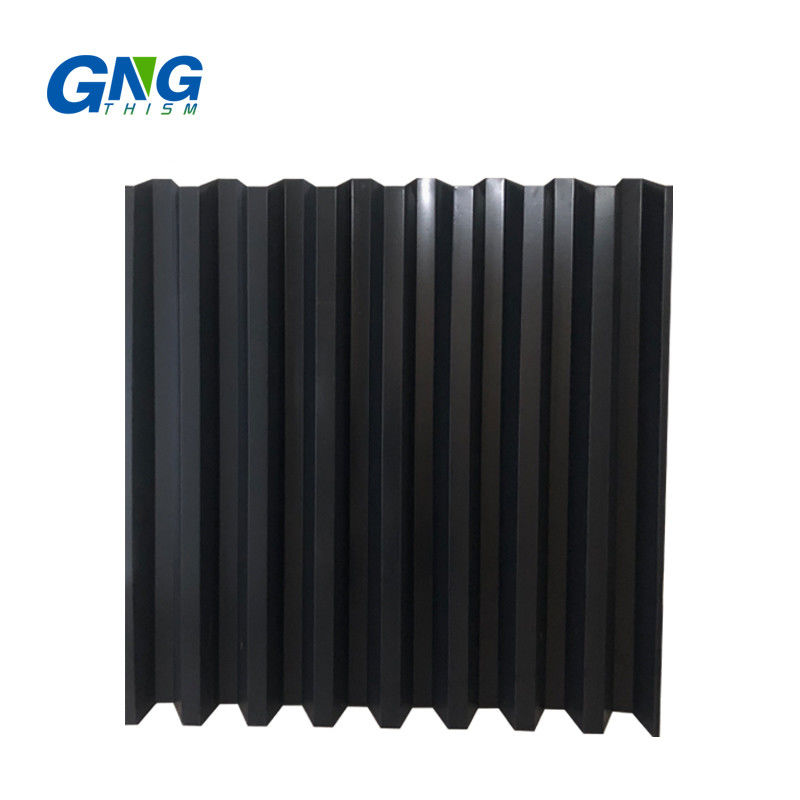

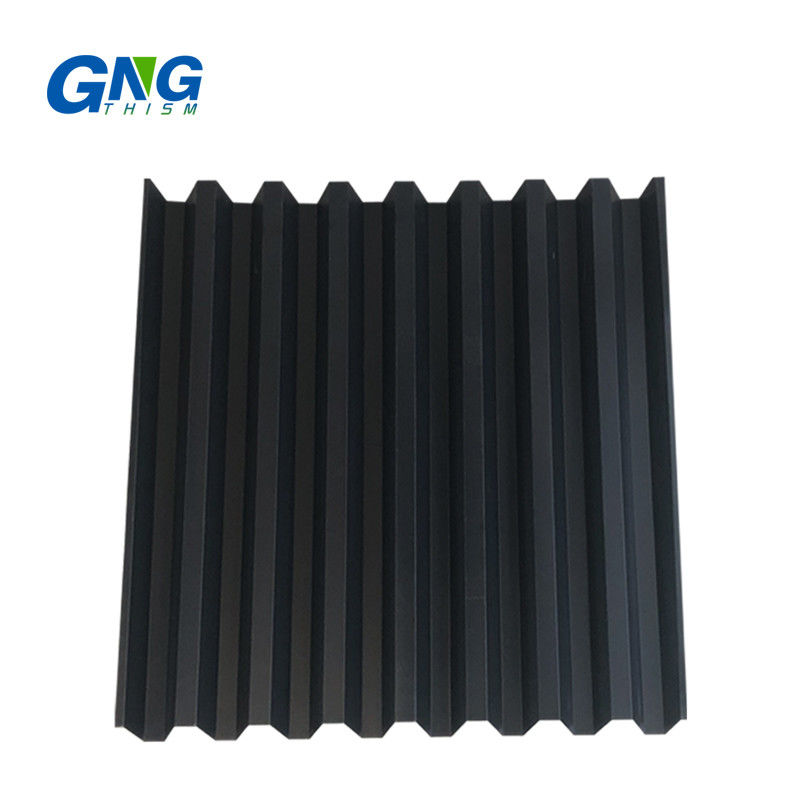

Hexagonal honeycomb packing tube settler media for waste water treatment
Clarification/Sedimentation is one of the most important stage in the field of waster water treatment. The most efficient sedimentation systems have high settling surface area whilst maintaining a small structure. tube settler media provides a large settling surface area within the specified volume thus giving high flow rates.

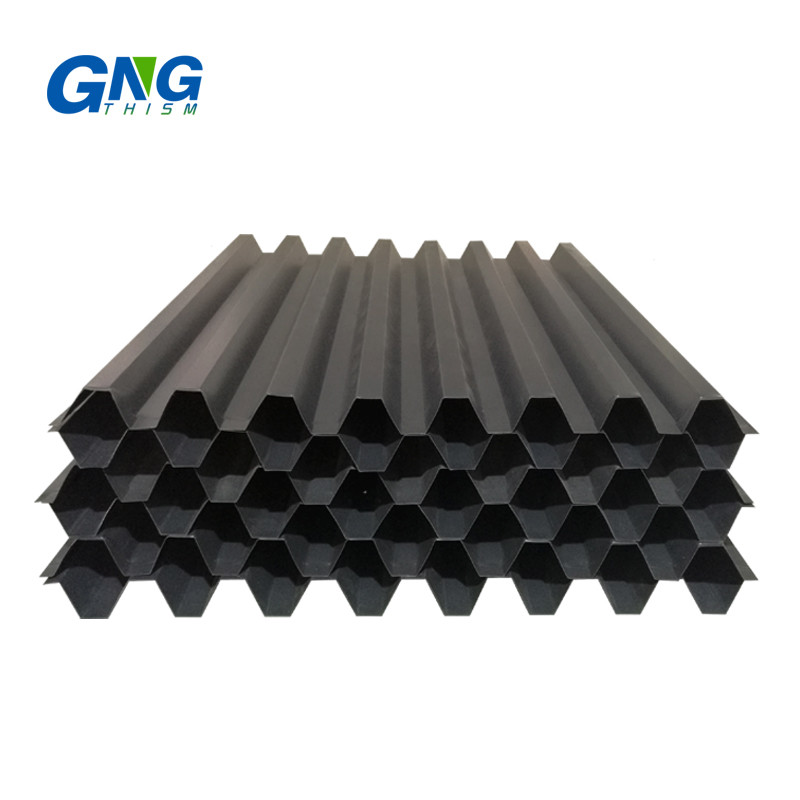

They have a chevron shaped self-supportin structure in a tubular form with six sides. They are primarily used in applications like watertreatment, primary & secondary clarifiers in wastewater treatment.
Technical Parameter
| Material | Aperture(mm) | Thickness(mm) | Pieces | Color |
| PP | ø25 | 0.4 | 60 | White |
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø30 | 0.4 | 50 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø35 | 0.4 | 44 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø40 | 0.4 | 40 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø50 | 0.4 | 32 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø60 | 1.2 | 28 | ||
| ø80 | 0.4 | 20 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1.2 | ||||
| PVC | Ø35 | 0.5 | 44 | Blue/Black |
| 0.8 | ||||
| ø50 | 0.4 | 32 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| ø80 | 0.4 | 20 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 |
Working Principle
Main Features
1. Ideal in dirty water applications.
2. Far more forgiving of poor water distribution caused by clogged or missing nozzles.
3. Water easily redistributes itself.
4. Ideal in dusty or wooded environments.
5. Easy maintenance.
Advantages
1. Process efficiency
From multiplication of the sedimentation area, chevron equidistant channel shape and adaptation of the settling area spacing and slope.
2. Flexible dimensions
It can be adapted to all kinds of shapes, inclinations, round settlers and allows cut outs.
3. Easy handling
Simple on site assembly method grants low cost, safe delivery to any place in the world.
