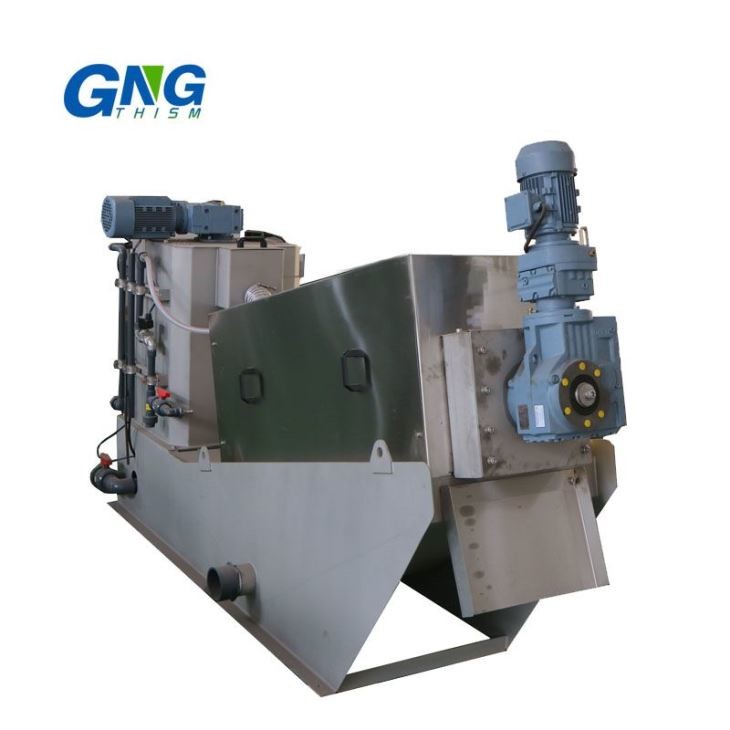

2.0m3/H Oil Grease Sludge Dewatering Equipment Screw Press

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNDS-302
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case/Container
Delivery Time: 10~20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Material: SS304/SS316L Usage: Sludge Treatment
Service Life: >5 Years Dimension: 3570*1260*1670
Weight: 2130Kg Customized: Available
High Light:

2.0m3/h sludge dewatering screw press

,

grease sludge dewatering screw press

,

grease Sludge Dewatering Equipment

Good quality factory directly screw press for sludge dewatering machine

The screw press dewatering machine is composed of screw body, driving device, filtrate receiver, mixing system and frame. When the screw press dewatering unit operation, sludge will be transported to the mixing tank by a sludge feed pump, at the same time, the solid polymer has been added to the mixing tank quantitatively by the polymer feed pump. Mixing motor drives the whole mixing system to make the sludge and polymer fully mixed and then flocs will be produced. When the liquid level arrives at the superior level of the liquid level sensor, the liquid level sensor gets the signal to make the motor of screw body operates, then begins to press the sludge which has flows into the screw body. Sludge will be transported to the outlet step by step by the effect of screw shaft, filtrate will flow out by the space of fixed rings and moveable rings.

2.0m3/H Oil Grease Sludge Dewatering Equipment Screw Press 0

Advantages

1- Low energy consumption.
2- Minimal water consumption.
3- Minimal noise.
4- Low polymer consumption.
5- No need for proceeding sludge thickening.
6- Suitable for any type of sludge even suitable for dewatering oil/grease rich sludge.
7- Minimal maintenance and operational cost.
8- Capable for working 24/7.

Working Principle

2.0m3/H Oil Grease Sludge Dewatering Equipment Screw Press 1

Component Display

2.0m3/H Oil Grease Sludge Dewatering Equipment Screw Press 2

Electrical Control

2.0m3/H Oil Grease Sludge Dewatering Equipment Screw Press 3

Technical Parameters

Type Raw wastewater/waste actived sludge chemically precipitated Dissloved-air sludge Mixed raw
sludge
Sludge
concentration(TS)
0.2% 1.0% 2.0% 5.0% 3.0%
GNDS-131 4kg-DS/h
(2.0m³/h)
6kg-DS/h
(0.6m³/h)
10kg-DS/h
(0.5m³/h)
20kg-DS/h
(0.4m³/h)
26kg-DS/h
(0.87m³/h)
GNDS-132 8kg-DS/h
(4.0m³/h)
12kg-DS/h
(1.2m³/h)
20kg-DS/h
(1.0m³/h)
40kg-DS/h
(0.8m³/h)
52kg-DS/h
(1.73m³/h)
GNDS-133 12kg-DS/h
(6.0m³/h)
18kg-DS/h
(1.8m³/h)
30kg-DS/h
(1.5m³/h)
60kg-DS/h
(1.2m³/h)
72kg-DS/h
(2.61m³/h)
GNDS-201 8kg-DS/h
(4.0m³/h)
12kg-DS/h
(1.2m³/h)
20kg-DS/h
(1.0m³/h)
40kg-DS/h
(0.8m³/h)
52kg-DS/h
(1.73m³/h)
GNDS-202 16kg-DS/h
(8.0m³/h)
24kg-DS/h
(2.4m³/h)
40kg-DS/h
(2.0m³/h)
80kg-DS/h
(1.6m³/h)
104kg-DS/h
(3.47m³/h)
GNDS-203 24kg-DS/h
(12.0m³/h)
36kg-DS/h
(3.6m³/h)
60kg-DS/h
(3.0m³/h)
120kg-DS/h
(2.4m³/h)
156kg-DS/h
(5.20m³/h)
GNDS-301 20kg-DS/h
(10.0m³/h)
30kg-DS/h
(3.0m³/h)
50kg-DS/h
(2.5m³/h)
30kg-DS/h
(2.0m³/h)
30kg-DS/h
(4.33m³/h)
GNDS-302 40kg-DS/h
(20.0m³/h)
60kg-DS/h
(6.0m³/h)
100kg-DS/h
(5.0m³/h)
200kg-DS/h
(4.0m³/h)
260kg-DS/h
(8.67m³/h)
GNDS-303 60kg-DS/h
(30.0m³/h)
90kg-DS/h
(9.0m³/h)
150kg-DS/h
(7.5m³/h)
300kg-DS/h
(6.0m³/h)
390kg-DS/h
(13.0m³/h)
GNDS-304 80kg-DS/h
(40.0m³/h)
120kg-DS/h
(12.0m³/h)
200kg-DS/h
(10.0m³/h)
400kg-DS/h
(8.0m³/h)
520kg-DS/h
(17.3m³/h)
GNDS-351 40kg-DS/h
(20.0m³/h)
60kg-DS/h
(6.0m³/h)
100kg-DS/h
(5.0m³/h)
200kg-DS/h
(4.0m³/h)
260kg-DS/h
(8.67m³/h)
GNDS-352 80kg-DS/h
(40.0m³/h)
120kg-DS/h
(12.0m³/h)
200kg-DS/h
(10.0m³/h)
400kg-DS/h
(8.0m³/h)
520kg-DS/h
(17.3m³/h)
GNDS-353 120kg-DS/h
(60.0m³/h)
180kg-DS/h
(18.0m³/h)
300kg-DS/h
(15.0m³/h)
600kg-DS/h
(12.0m³/h)
780kg-DS/h
(26.0m³/h)
GNDS-354 160kg-DS/h
(80.0m³/h)
240kg-DS/h
(24.0m³/h)
400kg-DS/h
(20.0m³/h)
800kg-DS/h
(16.02m³/h)
1040kg-DS/h
(34.68m³/h)
GNDS-401 70kg-DS/h
(35m³/h)
100kg-DS/h
(10m³/h)
170kg-DS/h
(8.5m³/h)
340kg-DS/h
(6.5m³/h)
442kg-DS/h
(16.0m³/h)
GNDS-402 135kg-DS/h
(67.5m³/h)
200kg-DS/h
(20.0m³/h)
340kg-DS/h
(17.0m³/h)
680kg-DS/h
(13.6m³/h)
884kg-DS/h
(29.5m³/h)
GNDS-403 200kg-DS/h
(100m³/h)
300kg-DS/h
(30.0m³/h)
510kg-DS/h
(25.5m³/h)
1020kg-DS/h
(20.4m³/h)
1326kg-DS/h
(44.2m³/h)
GNDS-404 266kg-DS/h
(133m³/h)
400kg-DS/h
(40.0m³/h)
680kg-DS/h
(34.0m³/h)
1360kg-DS/h
(27.2m³/h)
1768kg-DS/h
(58.9m³/h)

Application

The sludge dewatering screw press can be widely used for dewatering sludge of municipal administration wastewater, food, beverage, drink, slaughtering and breeding, printing, petrochemical engineering, papermaking, tannery and pharmaceutical.

2.0m3/H Oil Grease Sludge Dewatering Equipment Screw Press 4
