5m3/H Wastewater Nonaxial Tank Mounted Screw Screens

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case/Container
Delivery Time: 10~20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Flow Rate(m³/h): 20-100 Grid Gap(mm): 1-6mm
Mounting: Channel Or Tank Material: SS304
Power(kw): 0.75KW Capacity: 5-150 M3/h
Power: 0.75kw Keywords: Screw Screen For Wastewater Treatment
High Light:

nonaxial Tank Mounted Screw Screens


5m3/h Tank Mounted Screw Screens


nonaxial Wastewater Screw Screens

SS304 100m3/H Tank Mounted Waste Water Screw Screens

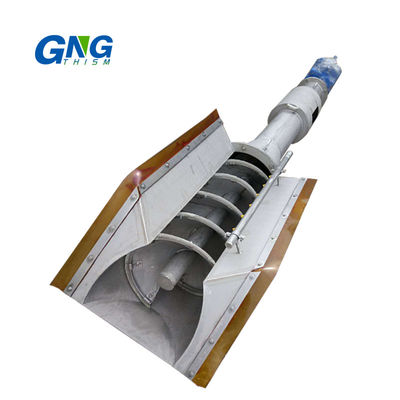

The screen is mounted in open channels or a tank with an incline of up to 45°. The slotted or perforated mesh is mounted in the bottom of the screen. Particles with sizes larger than the filtering mesh openings are collected on the mesh surface as wastewater flows through the mesh. The non-axial spiral with varied pitch screw is designated to remove waste from the filtering mesh, and transports material to the discharge zone on top of the screen. For better filtering mesh cleaning, the screw is equipped with a peripheral brush. The screen includes waste washing and compacting zones at the top of the screen before the discharge zone.

Screw Screen Technical Parameter

Model Flow Rate(m³/h) Grid Gap(mm) Power(kw) Dimension(m) Material
GNKGF-400 10-50 1-6mm 0.75KW 3.7*0.5*1.0m SS304/316L
GNKGF-500 10-80 1-6mm 0.75KW 3.8*0.6*1.0m SS304/316L
GNKGF-600 20-100 1-6mm 0.75KW 3.9*0.7*1.0m SS304/316L
GNKGF-700 20-150 1-6mm 1.1KW 4.0*0.8*1.0m SS304/316L


Screw Screen Operating Principle

Particles that are collected on the filtering mesh of the screen are moved up along the barrel by a rotating spiral. At the same time, the mesh is thoroughly cleaned by peripheral brushes.


Waste compacting is achieved by the decreasing screw pitch. The organic contaminants are flushed from the waste by spray water from washing nozzles on the top of the barrel. Washing water and water pressed from the solid material is taken to the channel upstream of the screen by a pipeline. Washed and drained screenings are discharged into a waste bin at the discharge zone. The screen operation periodicity depends on the equipment automation scheme.


Screw Screen Features:


Screw Screen Function

The process starts on the screen that holds back solids only. The internal part of the screen is continuously cleaned by brushes fixed on the outside diameter of the flighting. As the water runs through the screen the shaftless spiral conveys the solids up towards the compaction module where the material is further de-watered. Depending on the material properties, screenings can be reduced by more than 50% of their original volume.


We offer a complete line of in channel or in-tank screening systems. Each unit utilizes a perforated plate or v-wire screen section to effectively remove unwanted solids and debris from the influent. The screenings are transported via a shaftless conveyor to the compactor and washing zone, where they are cleaned, dewatered, then finally discarded into a receptacle or optional bagging system. Screens can be installed in-channel or in a self-contained stainless steel tank.
