| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNBQ |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2~10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pieces per month |
| Type: | Disc | Material Of Membrane Material: | EPDM/Silicone/PTFE |
|---|---|---|---|
| Support Dish Material: | Strengthened PP+glass Fiber | Size: | 8 Inch |
| HS Code: | 8421999090 | Warranty: | 1 Yesr |
| High Light: | fine bubble membrane diffusers,micro bubble air diffuser |
||

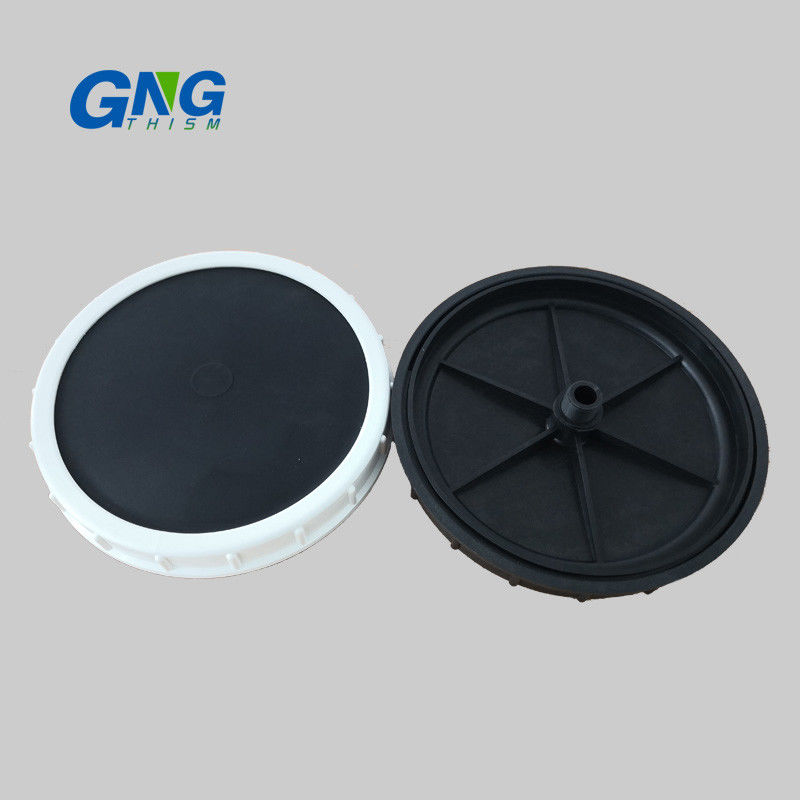

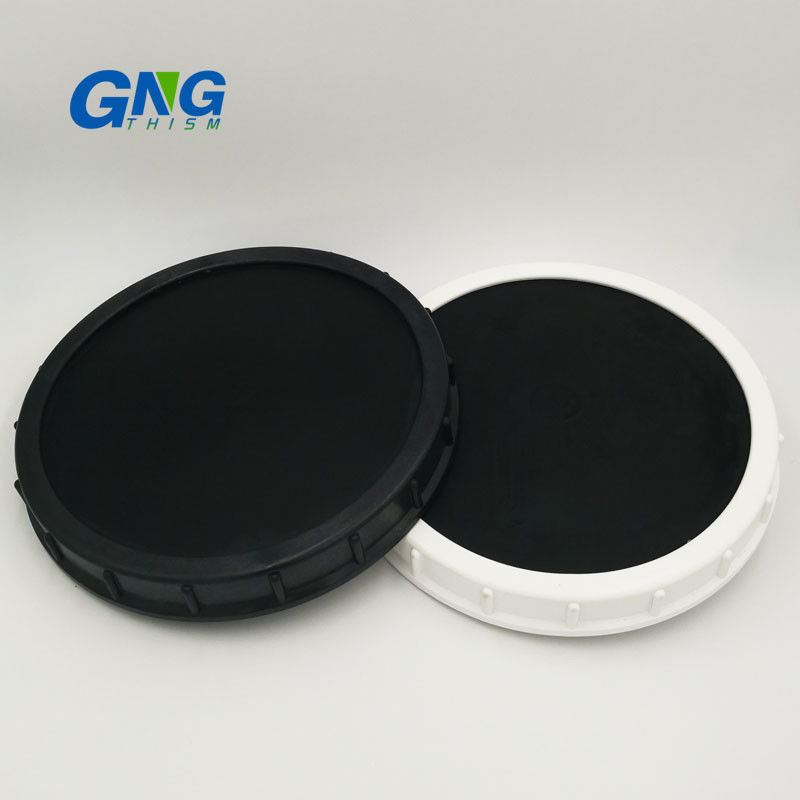

8 inch micro bubble air waste water treatment disc diffuser
The reinforced EPDM can continuously create fine bubble from slots on the EPDM membrane of 12 inch disc diffuser. The expected duty of life may be over 5 years without tearing or bursting. There are other material selections of self-sink silicon rubber membrane, ceramic diffuser, air stone, and coil looking diffuser. There is also course bubble air diffuser for the application of liquid mixture. The 12 inch disc diffuser can be used for roots blower, ring blower and linear air pump. The diffuser also has advantage of much energy reduction.
Technical Parameters
| Model | GNBQ-150/170 | GNBQ-215 | GNBQ-260 | GNBQ-350 | GNBQ-650 |
| Bubble Type | Coarse Bubble | Fine Bubble | Fine Bubble | Fine Bubble | Fine Bubble |
| Size | 5/6 inch | 8 inch | 9 inch | 12 inch | 675*215mm |
| Membrane Material | EPDM/SILICONE/PTFE | ||||
| Base Material | ABS | Strengthened PP + GF (Glass Fiber) | ABS | ||
| Connector | 3/4'' NPT male thread | ||||
| Membrane Thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Bubble Size | 4-5mm | 1-2mm | 1-2mm | 1-2mm | 1-2mm |
| Design Flow | 1-5m3/h | 1.5-2.5m3/h | 3-4m3/h | 5-6m3/h | 6-14m3/h |
| Flow Range | 6-9m3/h | 1-6m3/h | 1-8m3/h | 1-12m3/h | 1-16m3/h |
| SOTE | ≥10% | ≥38% | ≥38% | ≥38% | ≥40% |
| 6m submerged | 6m submerged | 6m submerged | 6m submerged | 6m submerged | |
| SOTR | ≥0.21kg O2/h | ≥0.31kg O2/h | ≥0.45kg O2/h | ≥0.75kg O2/h | ≥0.99kg O2/h |
| SAE | ≥7.5kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥9.2kg O2/kw.h |
| Headloss | 2000-3000Pa | 1500-4300Pa | 1500-4300Pa | 1500-4300Pa | 2000-3500Pa |
| Service Area | 0.5-0.8m2/pcs | 0.2-0.64m2/pcs | 0.25-1.0m2/pcs | 0.4-1.5m2/pcs | 0.5-2.5m2/pcs |
| Service Life | ＞5 years | ||||
Main Features
The disc diffuser adopts energy-saving design, low installation cost, high reliability and excellent performance in intermittent and continuous aeration process fine.
1. Use imported material, good elasticity, long lifetime
2. Little bubble diameter, high oxygenate efficiency
3. Proof deposit, install conveniently
