| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNNBG |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | standard export package |
| Delivery Time: | 3~15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets per month |
| Material: | SS304/SS316L | Application: | Fish Tank |
|---|---|---|---|
| Color: | Silver | Model: | GNNBG-02 |
| Flow Rate: | 1 M3/h | Package: | Wooden Case |
| High Light: | micro bubble machine,nano ozone generator |
||

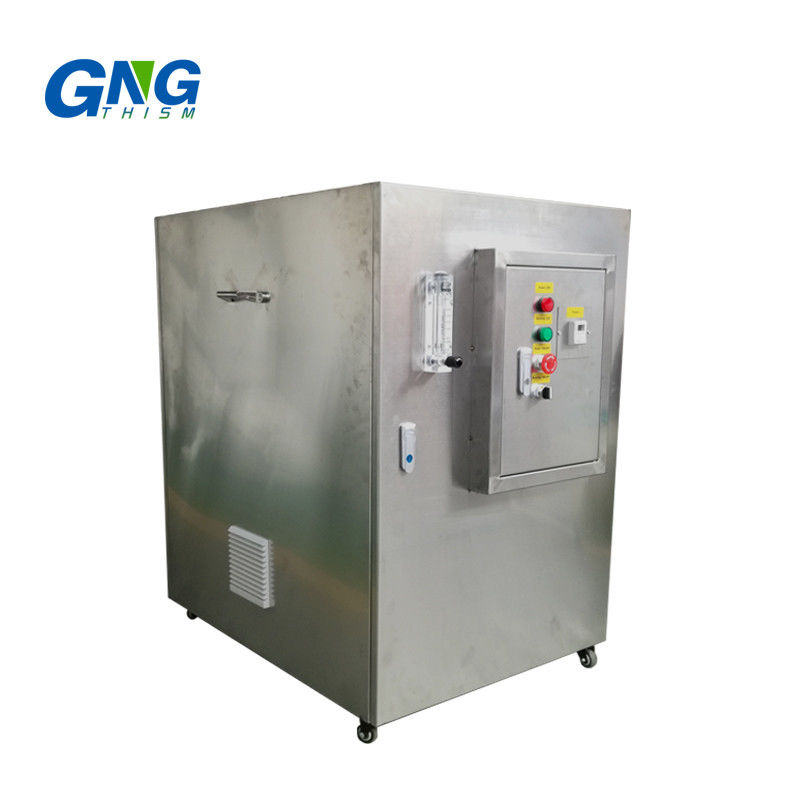

Fish tank high oxygen air diffuser micro nano bubble generator
Micro nano bubble generator is the core part of CAF cavitation air flotation machine, it is mainly used in Industrial Wastewater Purification to generate micro nano bubbles underwater to float the micro size impurities to the water surface for solid-liquid separation to remove the suspended solids(TSS). Surely it can be used for other applications.
Technical Parameters
| Model | GNNBG-01 | GNNBG-02 | GNNBG-05 | GNNBG-12 | GNNBG-30 |
| Flow Rate | 1 | 2 | 5 | 12 | 30 |
| (m3/h) | |||||
| Power of Pump | 0.55 | 1.1 | 2.2 | 3 | 7 |
| (KW) | |||||
| Affected Water Area(m2/D) | 300-400 | 900-1200 | 1900-2600 | 4600-5300 | 12000-14000 |
| Working Temps(℃) | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 |
| Bubble Diameter(nm/μm) | 200nm-50μm | 200nm-50μm | 200nm-50μm | 200nm-50μm | 200nm-50μm |
| Gas-liquid Mixture Ratio | 1:6-1:9 | 1:6-1:9 | 1:6-1:9 | 1:6-1:9 | 1:6-1:9 |
| Gas-liquid Dissolving Rate | 85-90% | 85-90% | 85-90% | 85-90% | 85-90% |
