| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNPE |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Double Woven Bag |
| Delivery Time: | 3~15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 cubic meters per month |
| Material: | 100% Virgin HDPE | Application: | Wastewater/Aquaculture |
|---|---|---|---|
| Method: | Physical Treatment | Model NO.: | GNPE |
| Specification: | 10*7/12*9/25*10 | Transport Package: | Woven Bag Packing |
| High Light: | mbbr filter media,moving bed bio filter media |
||

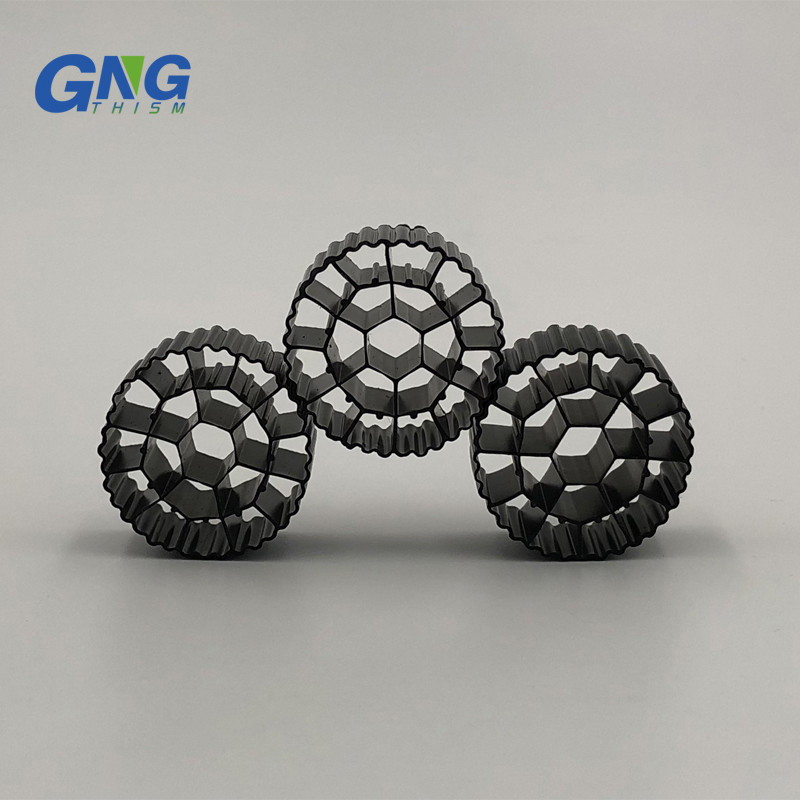

Aquaculture Fish Farm Mbbr Bio Filter Media
The K1 MBBR Bio Media is the biofilm carrier elements that are made from polyethylene that provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture to grow and thrive. The biofilm also provides a more stable "home" for the bacteria to grow, so there is less space required compared to other biological systems and far less controls. K1 MBBR Bio Media can be designed for new facilities to remove BOD/COD from waste water streams or for nitrogen removal.
Technical Parameter
| Model | GNPE-01 | GNPE-02 | GNPE-03 | GNPE-04 | GNPE-05 | GNPE-06 | GNPE-07 | GNPE-08 | GNPE-09 | |
| Dimention | mm | φ12*9 | φ11*7 | φ10*7 | φ16*10 | φ25*10 | φ25*10 | φ35*18 | φ6*10 | φ15*15 |
| Hole Numbers | nos. | 4 | 4 | 5 | 6 | 19 | 19 | 19 | 8 | 40 |
| Protected surface area | m2/m3 | >800 | >900 | >1000 | >800 | >500 | >500 | >350 | >3500 | >900 |
| Density | g/cm3 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 1.02-1.05 | 0.96-0.98 | 1.02-1.05 | 0.96-0.98 |
| Packing numbers | pcs/m3 | >630000 | >830000 | >850000 | >260000 | >97000 | >97000 | >33000 | >2000000 | >230000 |
| Porosity | % | >85 | >85 | >85 | >85 | >90 | >90 | >92 | >80 | >85 |
| Dosing ratio | % | 15-67 | 15-68 | 15-70 | 15-67 | 15-65 | 15-65 | 15-50 | 15-70 | 15-65 |
| Membrane-forming time | days | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 |
| Nitrification efficiency | gNH4-N/m3.d | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 300-800 | 500-1400 | 500-1400 |
| BOD5 oxidation efficiency | gBOD5/m3.d | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 1000-5000 | 2500-15000 | 2500-15000 |
| COD oxidation efficiency | gCOD/m3.d | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 1000-10000 | 2500-20000 | 2500-20000 |
| Applicable temperature | ℃ | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
| Lifespan | year | >15 | >15 | >15 | >15 | >15 | >15 | >15 | >15 | >15 |
Main Features
1.Adding hydrophiic groups and other trace elements,the biofilm formation time only 3-15 days.
2.Excellent impact strength,strong gas shear capacity.
3.Without any holder,easy to cure,save energy and space.
