CE good quality Solid Liquid Separation of GNKGF screw screen for sludge treatment

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case/Container
Delivery Time: 10~20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Material: SS304/316L Usage: Wastewater Treatment
Brand: GNGTHISM Certification: CE Certificate、ISO
Origin: Mainland, China

Solid Liquid Separation of GNKGF screw screen for sludge treatment

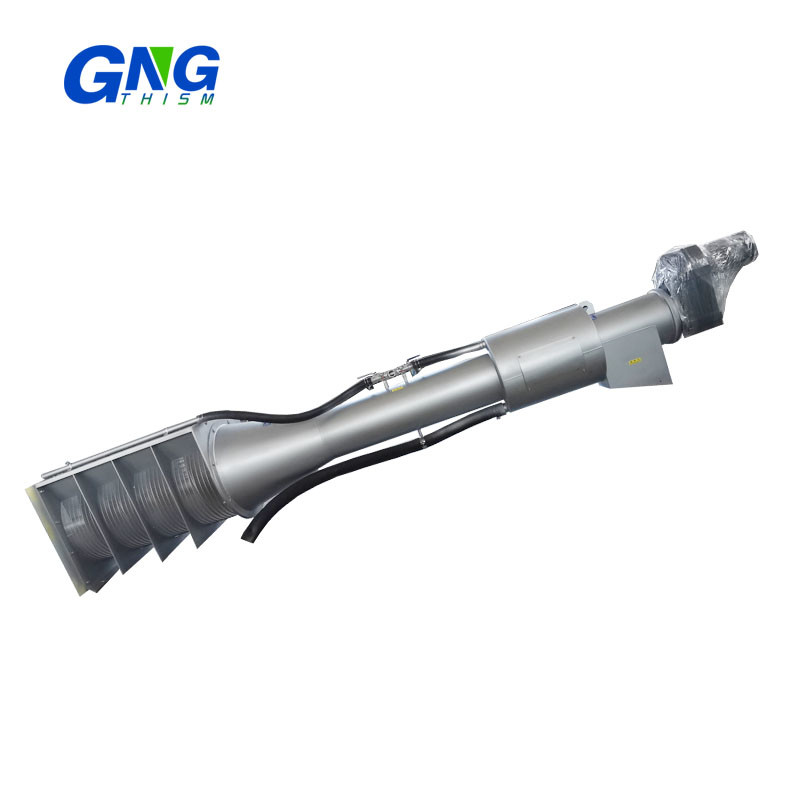

CE good quality Solid Liquid Separation  of GNKGF screw screen for sludge treatment 0



Screw Screen Introduction:

Screw screen for wastewater treatment is a Screw Screen that consists of a screen basket, a conveyor screw, and a compaction section. GE is almost identical with GCP but misses the compaction section. It is suitable for applications where screenings may not or cannot be compacted.


Screw ScreenTechnical Parameter

Model Flow Rate(m³/h) Grid Gap(mm) Power(kw) Dimension(m) Material
GNKGF-400 10-50 1-6mm 0.75KW 3.7*0.5*1.0m SS304/316L
GNKGF-500 10-80 1-6mm 0.75KW 3.8*0.6*1.0m SS304/316L
GNKGF-600 20-100 1-6mm 0.75KW 3.9*0.7*1.0m SS304/316L
GNKGF-700 20-150 1-6mm 1.1KW 4.0*0.8*1.0m SS304/316L



Screw Screen Function

The process starts on the screen that holds back solids only. The internal part of the screen is continuously cleaned by brushes fixed on the outside diameter of the flighting. As the water runs through the screen the shaftless spiral conveys the solids up towards the compaction module where the material is further de-watered. Depending on the material properties, screenings can be reduced by more than 50% of their original volume.



Screw Screen Main Features

● Screen mesh size ranging from 1mm to 6mm.

● Screen width ranging from 400mm to 700mm.

● Volume reduction up to 50%.

● Absence of inside bearings.

● No mechanical components in contact with the product handled.

● Slow r.p.m.

● Long-life screw brushes.

● Low investment costs.

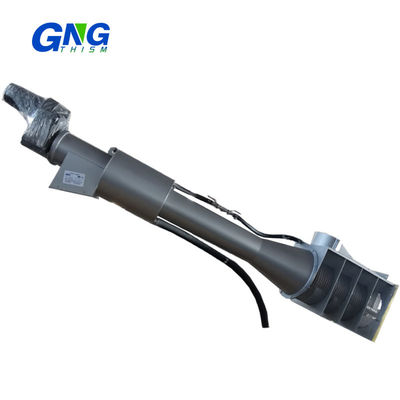

CE good quality Solid Liquid Separation  of GNKGF screw screen for sludge treatment 1
