Place of Origin: | China |
---|---|
Brand Name: | GNGTHISM |
Certification: | CE/ISO9001 |
Model Number: | GNBQ |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Carton |
Delivery Time: | 2~10days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10000 pieces per month |
Model: | DN66/93/113 | Color: | Blue And Black |
---|---|---|---|
Carrier Plate: | ABS | Connector: | 3/4'' Or 1" NPT Male Thread |
Length: | 1000mm | Service Life: | > 5 Years |
High Light: | DN93 ABS air diffuser pipe,micro bubble air diffuser pipe,DN93 ABS air diffuser tube |

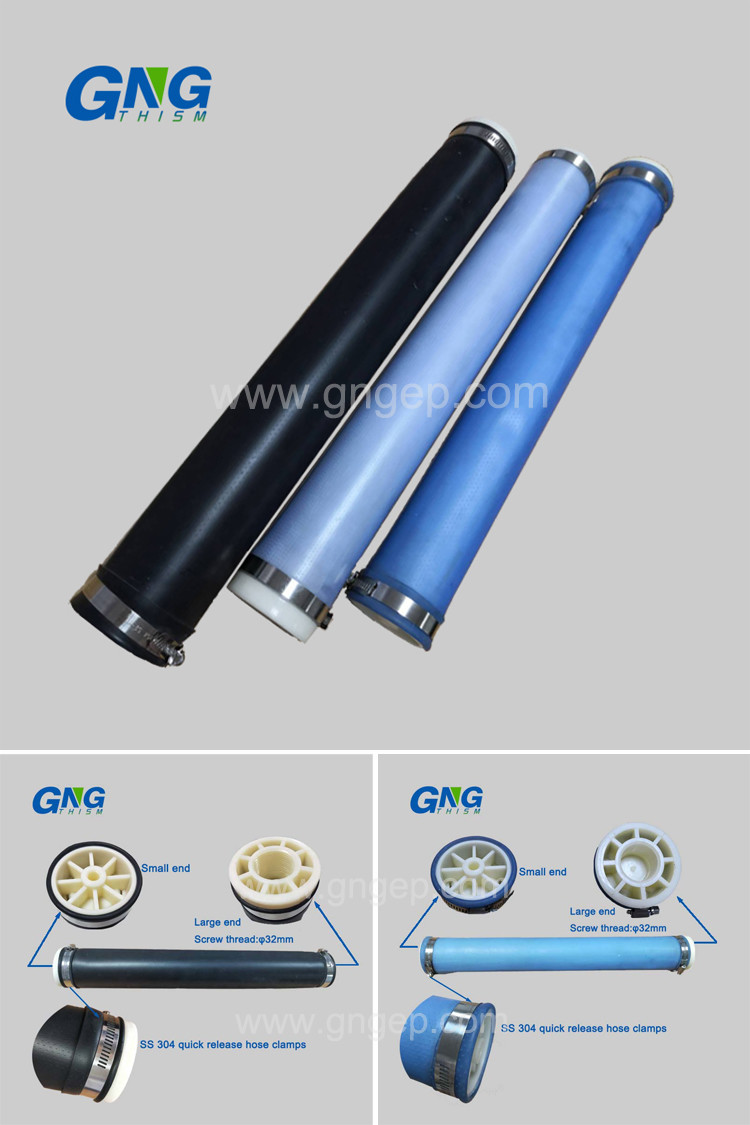

Fish pond fine micro bubble membrane tube air diffusers
The fine bubble tube diffuser is a new type of oxygenation aerator and the core equipment of A/O process (activated sludge biochemistry technology). It can be applied to every position of the sewage pool. It is featured by easy and convenient installation and maintenance, even oxygenation and low energy consumption.
Flexible, easy and convenient installation. It can be installed during normal operation, not necessary to drain water. Simple maintenance.
Technical Parameters
Type | Membrane Tube Diffuser | ||
Model | φ66 | φ93 | φ113 |
Length | 500/750/1000mm | 500/750/1000mm | 500/750/1000mm |
MOC | EPDM/Silicon membrane ABS tube | EPDM/Silicon membrane ABS/PP carrier plate | EPDM/Silicon membrane ABS/PP carrier plate |
Connector | 1" NPT male thread 3/4" NPT male thread | 1" NPT male thread 3/4" NPT male thread | 1" NPT male thread 3/4" NPT male thread |
Bubble Size | 1-2mm | 1-2mm | 1-2mm |
Design Flow | 1.7-6.8m³/h | 3.4-13.6m³/h | 3.4-17.0m³/h |
Flow Range | 2-14m³/h | 5-20m³/h | 6-28m³/h |
SOTE | ≥40% (6m submerged) | ≥40% (6m submerged) | ≥40% (6m submerged) |
SOTR | ≥0.90kg O2/h | ≥1.40kg O2/h | ≥1.52kg O2/h |
SAE | ≥8.6kg O2/kw.h | ≥8.6kg O2/kw.h | ≥8.6kg O2/kw.h |
Headloss | 2200-4800Pa | 2200-4800Pa | 2200-4800Pa |
Service Area | 0.75-2.5m² | 1.0-3.0m² | 1.5-2.5m² |
Service Life | > 5 year | > 5 year | > 5 year |
Feature
* High oxygen transfer efficiency.
* High resistance to clogging.
* High resistance to corrosion.
* Wide air flow range.
* Low energy cost.
* Easy installation.
* Uniform fine bubble.
* Back flow prevention.
* Self cleaning operation.
* Intermittent operation capability.
* Slide-off prevention designed.
Application
1. Industrial Wastewater Aeration
2. Portable And Versatile Aeration System
3. Efficient Mixing & Aeration
4. Emergency Wastewater Aeration
