| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNBQ |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2~10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pieces per month |
| Membrane Material: | EPDM/Silicone/PTFE | Support Dish Material: | Strengthened PP+glass Fiber |
|---|---|---|---|
| Connector: | 3/4'' NPT Male Thread | Feature: | High Oxygen Transfer Efficiency |
| Application: | Aquaculture/sewage Treatment | Oxygen Transfer Rate: | 25-30 |
| High Light: | fine bubble membrane diffusers,fine bubble aeration system |
||

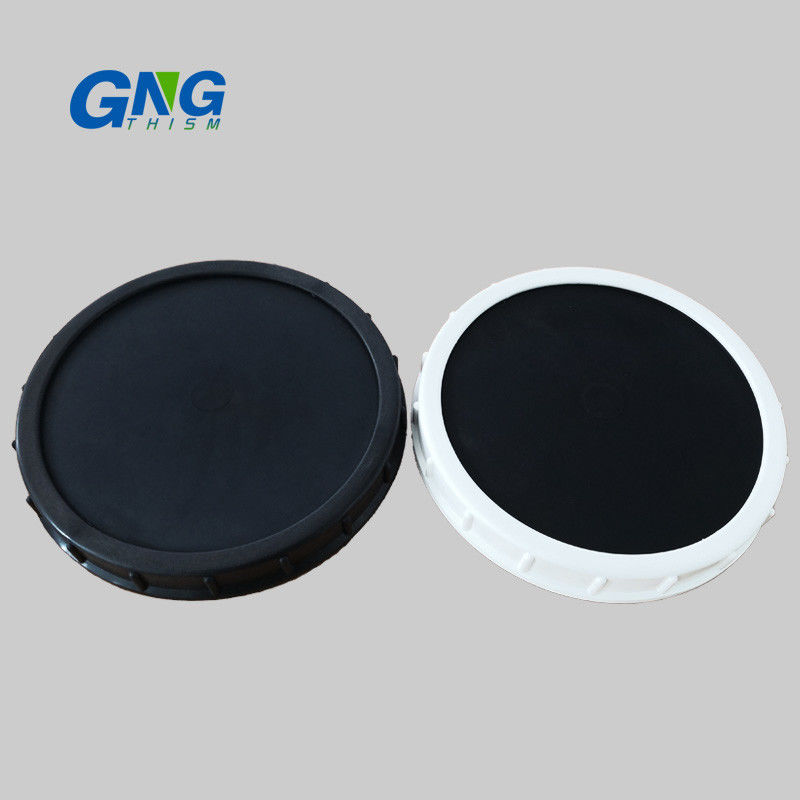

High oxygen membrane fine bubble disc diffuser
The purpose of fine bubble diffuser is to dissolve oxygen into waste water so that the microorganisms can utilize it while they break down organic material. Micro bubble diffuser is a subsurface form of diffusion in which air is introduced in the form of very small bubbles to aid or enhance the treatment of wastewater.

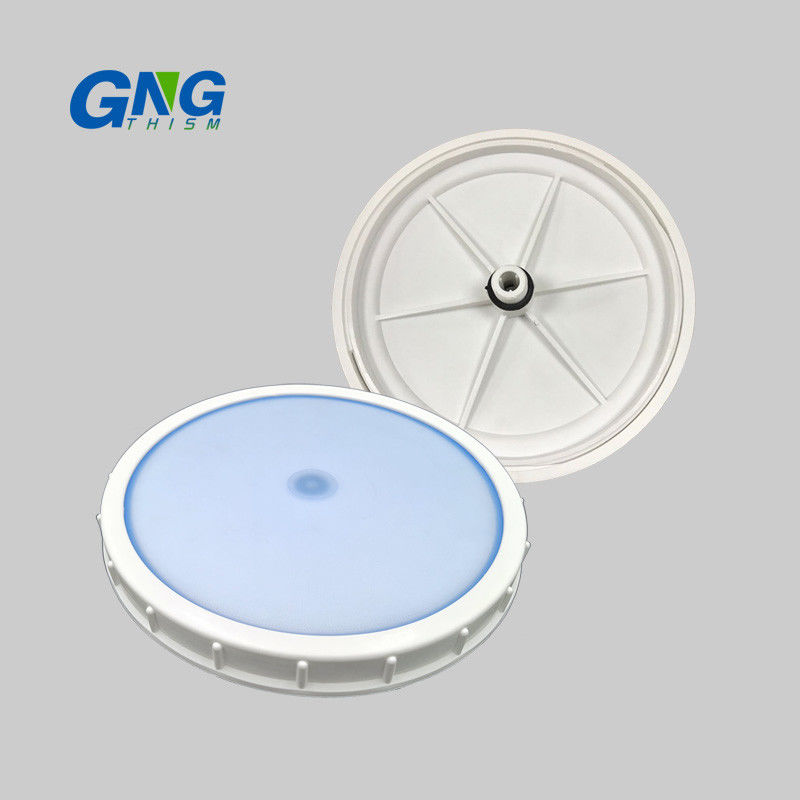

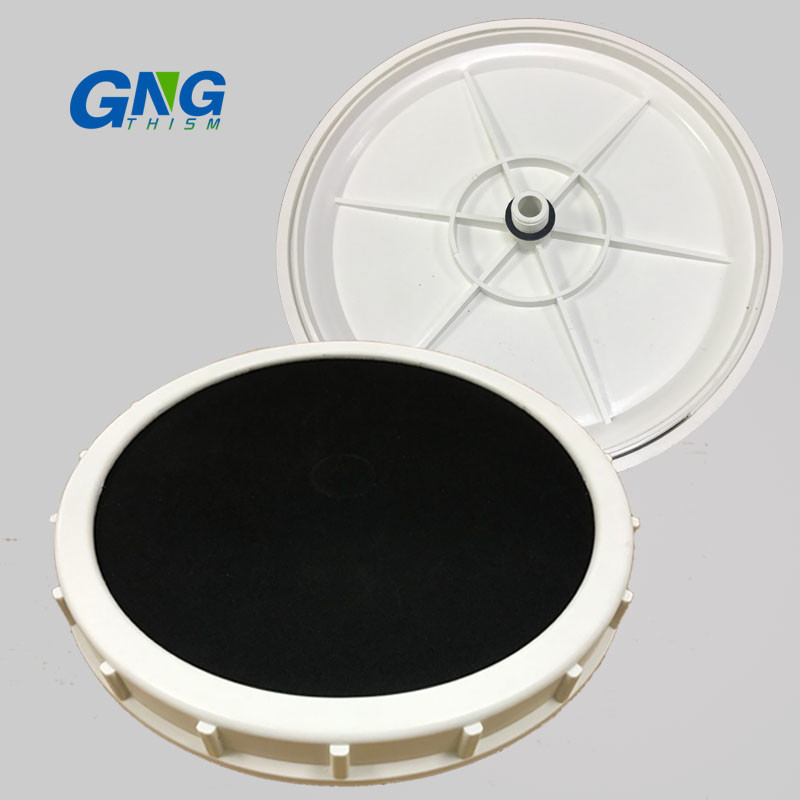

Component Display
Technical Parameters
| Model | GNBQ-150/170 | GNBQ-215 | GNBQ-260 | GNBQ-350 | GNBQ-650 |
| Bubble Type | Coarse Bubble | Fine Bubble | Fine Bubble | Fine Bubble | Fine Bubble |
| Size | 5/6 inch | 8 inch | 9 inch | 12 inch | 675*215mm |
| Membrane Material | EPDM/SILICONE/PTFE | ||||
| Base Material | ABS | Strengthened PP + GF (Glass Fiber) | ABS | ||
| Connector | 3/4''NPT male thread | ||||
| Membrane Thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Bubble Size | 4-5mm | 1-2mm | 1-2mm | 1-2mm | 1-2mm |
| Design Flow | 1-5m3/h | 1.5-2.5m3/h | 3-4m3/h | 5-6m3/h | 6-14m3/h |
| Flow Range | 6-9m3/h | 1-6m3/h | 1-8m3/h | 1-12m3/h | 1-16m3/h |
| SOTE | ≥10% | ≥38% | ≥38% | ≥38% | ≥40% |
| 6m submerged | 6m submerged | 6m submerged | 6m submerged | 6m submerged | |
| SOTR | ≥0.21kg O2/h | ≥0.31kg O2/h | ≥0.45kg O2/h | ≥0.75kg O2/h | ≥0.99kg O2/h |
| SAE | ≥7.5kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥9.2kg O2/kw.h |
| Headloss | 2000-3000Pa | 1500-4300Pa | 1500-4300Pa | 1500-4300Pa | 2000-3500Pa |
| Service Area | 0.5-0.8m2/pcs | 0.2-0.64m2/pcs | 0.25-1.0m2/pcs | 0.4-1.5m2/pcs | 0.5-2.5m2/pcs |
| Service Life | ＞5 years | ||||
Application Fields
Packaging&Shipping
