| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNBQ |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2~10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pieces per month |
| Type: | Disc/plate | Membrane Material: | EPDM/Silicone/PTFE |
|---|---|---|---|
| Support Dish Material: | Strengthened PP+glass Fiber | Size: | 5/6/8/9/12 Inch |
| Feature: | High Oxygen Transfer Efficiency | Application: | Aquaculture |
| High Light: | fine bubble membrane diffusers,fine bubble aeration system |
||

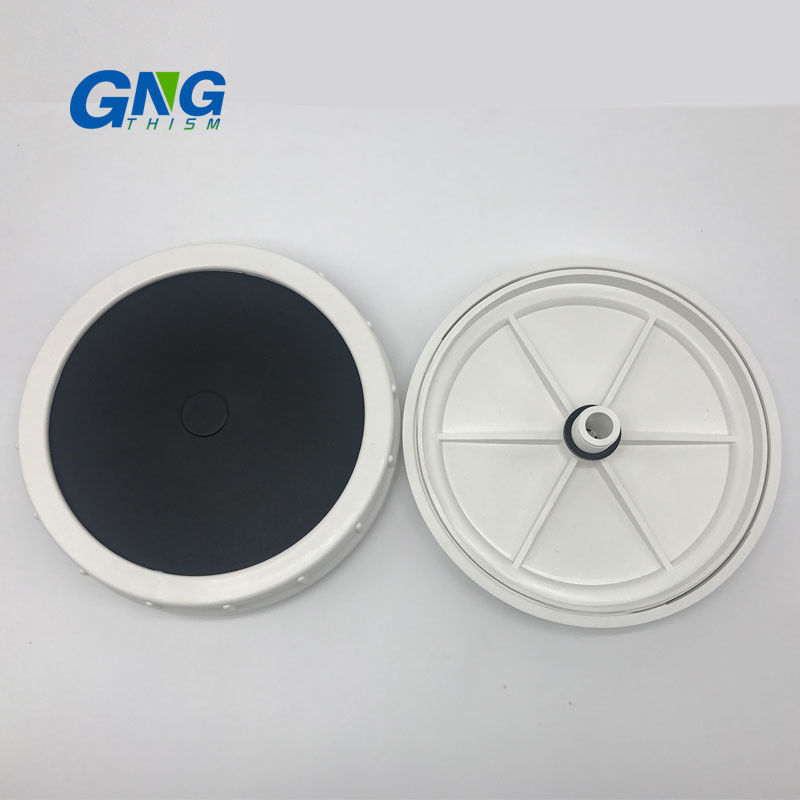

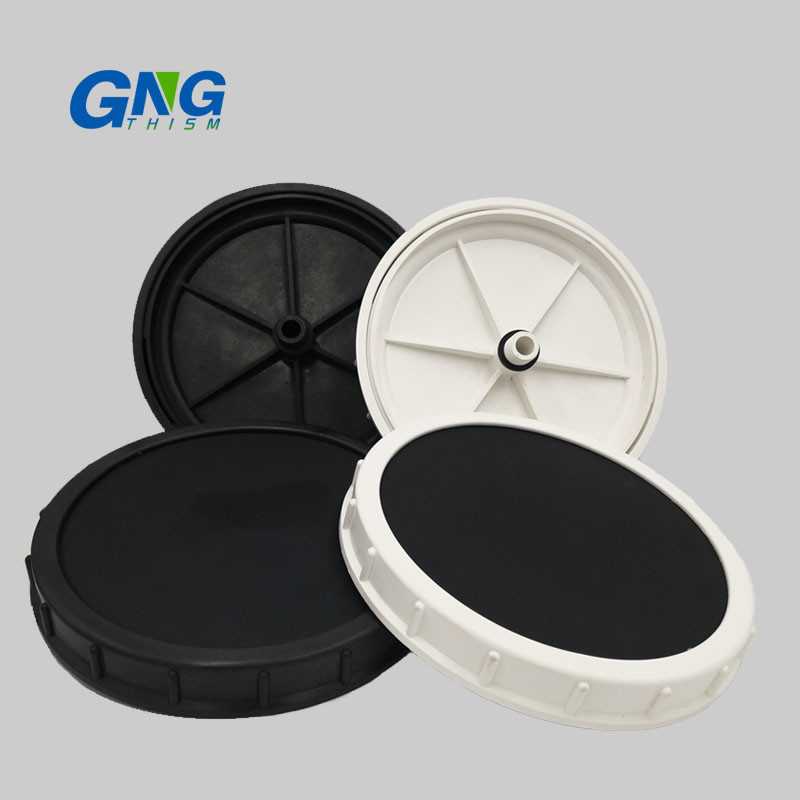

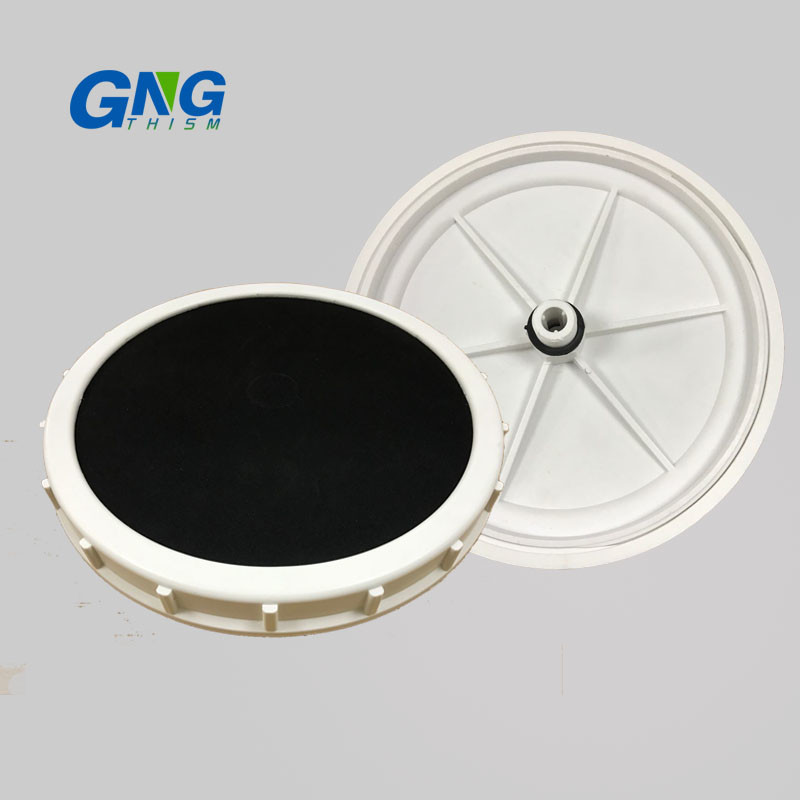

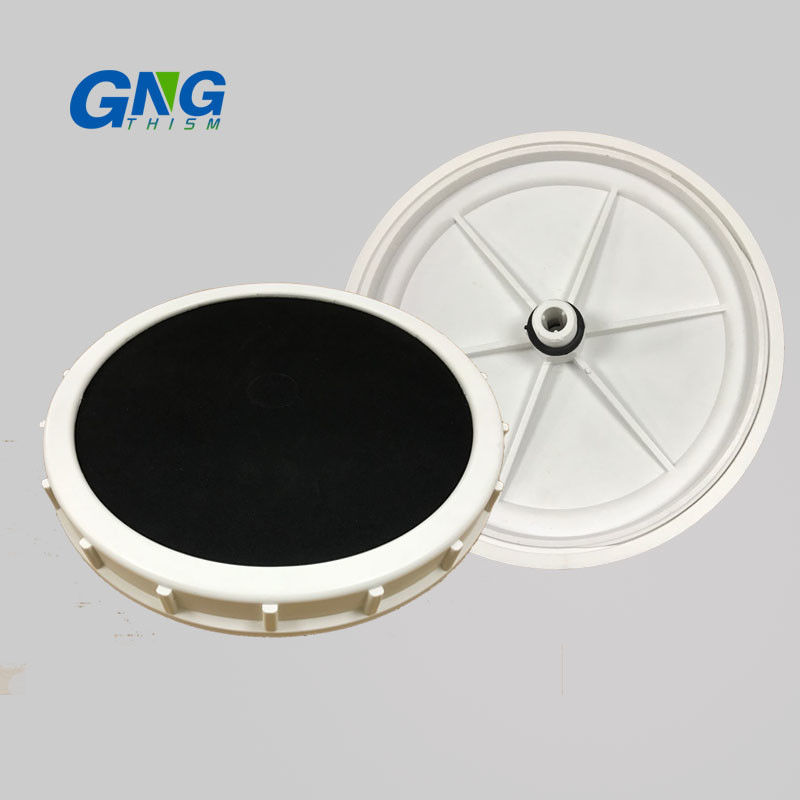

New design fine bubble disc diffuser with high efficiency
High oxygen nano bubble diffuser features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency.
A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications.
Technical Parameters
| Model | GNBQ-150/170 | GNBQ-215 | GNBQ-260 | GNBQ-350 | GNBQ-650 |
| Bubble Type | Coarse Bubble | Fine Bubble | Fine Bubble | Fine Bubble | Fine Bubble |
| Size | 5/6 inch | 8 inch | 9 inch | 12 inch | 675*215mm |
| Membrane Material | EPDM/SILICONE/PTFE | ||||
| Base Material | ABS | Strengthened PP + GF (Glass Fiber) | ABS | ||
| Connector | 3/4''NPT male thread | ||||
| Membrane Thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Bubble Size | 4-5mm | 1-2mm | 1-2mm | 1-2mm | 1-2mm |
| Design Flow | 1-5m3/h | 1.5-2.5m3/h | 3-4m3/h | 5-6m3/h | 6-14m3/h |
| Flow Range | 6-9m3/h | 1-6m3/h | 1-8m3/h | 1-12m3/h | 1-16m3/h |
| SOTE | ≥10% | ≥38% | ≥38% | ≥38% | ≥40% |
| 6m submerged | 6m submerged | 6m submerged | 6m submerged | 6m submerged | |
| SOTR | ≥0.21kg O2/h | ≥0.31kg O2/h | ≥0.45kg O2/h | ≥0.75kg O2/h | ≥0.99kg O2/h |
| SAE | ≥7.5kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥9.2kg O2/kw.h |
| Headloss | 2000-3000Pa | 1500-4300Pa | 1500-4300Pa | 1500-4300Pa | 2000-3500Pa |
| Service Area | 0.5-0.8m2/pcs | 0.2-0.64m2/pcs | 0.25-1.0m2/pcs | 0.4-1.5m2/pcs | 0.5-2.5m2/pcs |
| Service Life | ＞5 years | ||||
Features
Standard Membrane Materials

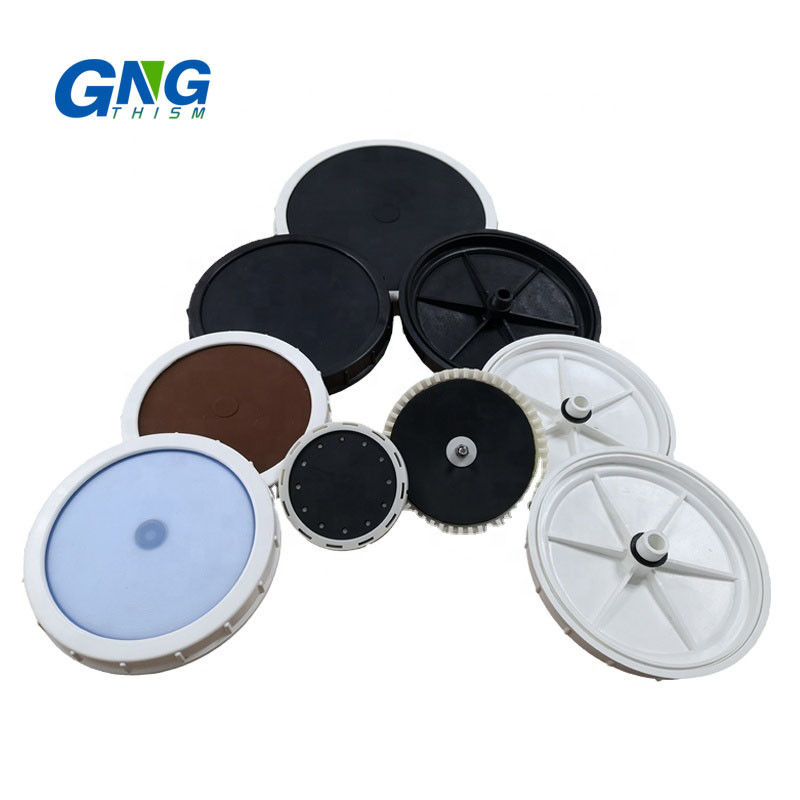

We provide disc diffusers that are specially designed for a plethora of applications.
The special low plasticizer EPDM is aimed at beverage production, and food and animal processing. The silicone membrane diffuser is specifically created for refining processes, petrochemicals, and the paper industry.
Anti-fouling Surface for Membrane Materials
Relatively based on the latest nano technology, the surface of the membrane materials are meant to prevent the accumulation of both biological and solid encrustations.
Reinforced Polypropylene Support Dish and Ring
We provide disc diffusers with rings and support dishes that are strengthened and well-protected by glass fibers for optimum chemical resistance. With this sturdy support dish, it can endure varying temperatures and resist harmful UV rays.
All disc diffusers come with built-in non-return valves to ensure safety and security of the water treatment process. This valve controls the build-up of sludge and prevents its infiltration into the aeration system, especially when the airflow is sporadic.
