High Efficiency Sludge Dewatering Equipment SS304 SS316L Long Service Life

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNDS-402
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case/Container
Delivery Time: 10~20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Material: SS304/SS316L Usage: Polymer Industry Wastewater Treatment
Service Life: >5 Years Dimension: 4900*1640*2400mm
Operating Weight: 5200kg Origin: Yixing City, Jiangsu China
High Light:

volute filter press

,

dewatering screw press machine

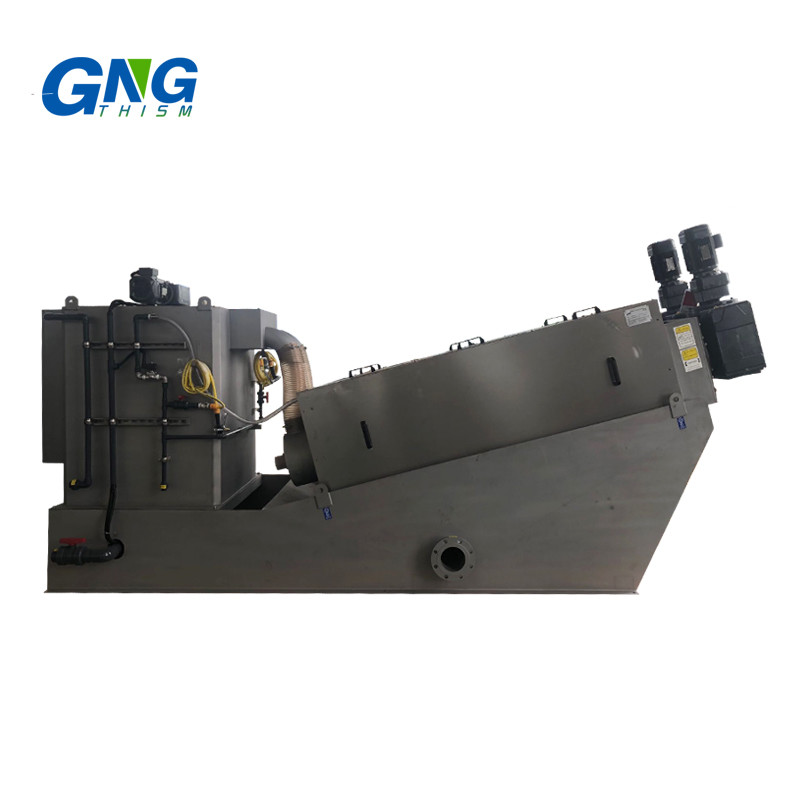

High Efficiency Sludge Dewatering Machine with Long Service Life

Sludge dewatering is the practice of minimizing waste by volume to prepare for its effective disposal. Dewatering the sludge with a dewatering filter press significantly reduces its weight and its volume before disposal.

High Efficiency Sludge Dewatering Equipment SS304 SS316L Long Service Life 0

Main Features

♦ Exclusive pre-thickening device enables a wide solid concentration ranging from 3000mg/l to 50000mg/l

♦ Fixed and moving plates replace filter cloth, self-cleaning, clog-free, easy to handle oily sludge

♦ Low running speed, low noise, low power consumption, 1 /8 of Belt Press and 1 /20 of

   centrifuge

♦ Less capital construction cost, more excellent working performance

♦ Fully automatic control, Easy operation and simple maintenance

Electrical Control

High Efficiency Sludge Dewatering Equipment SS304 SS316L Long Service Life 1

Technical Parameters

Type Raw wastewater/waste actived sludge chemically precipitated Dissloved-air sludge Mixed raw
sludge
Sludge
concentration(TS)
0.2% 1.0% 2.0% 5.0% 3.0%
GNDS-131 4kg-DS/h
(2.0m³/h)
6kg-DS/h
(0.6m³/h)
10kg-DS/h
(0.5m³/h)
20kg-DS/h
(0.4m³/h)
26kg-DS/h
(0.87m³/h)
GNDS-132 8kg-DS/h
(4.0m³/h)
12kg-DS/h
(1.2m³/h)
20kg-DS/h
(1.0m³/h)
40kg-DS/h
(0.8m³/h)
52kg-DS/h
(1.73m³/h)
GNDS-133 12kg-DS/h
(6.0m³/h)
18kg-DS/h
(1.8m³/h)
30kg-DS/h
(1.5m³/h)
60kg-DS/h
(1.2m³/h)
72kg-DS/h
(2.61m³/h)
GNDS-201 8kg-DS/h
(4.0m³/h)
12kg-DS/h
(1.2m³/h)
20kg-DS/h
(1.0m³/h)
40kg-DS/h
(0.8m³/h)
52kg-DS/h
(1.73m³/h)
GNDS-202 16kg-DS/h
(8.0m³/h)
24kg-DS/h
(2.4m³/h)
40kg-DS/h
(2.0m³/h)
80kg-DS/h
(1.6m³/h)
104kg-DS/h
(3.47m³/h)
GNDS-203 24kg-DS/h
(12.0m³/h)
36kg-DS/h
(3.6m³/h)
60kg-DS/h
(3.0m³/h)
120kg-DS/h
(2.4m³/h)
156kg-DS/h
(5.20m³/h)
GNDS-301 20kg-DS/h
(10.0m³/h)
30kg-DS/h
(3.0m³/h)
50kg-DS/h
(2.5m³/h)
30kg-DS/h
(2.0m³/h)
30kg-DS/h
(4.33m³/h)
GNDS-302 40kg-DS/h
(20.0m³/h)
60kg-DS/h
(6.0m³/h)
100kg-DS/h
(5.0m³/h)
200kg-DS/h
(4.0m³/h)
260kg-DS/h
(8.67m³/h)
GNDS-303 60kg-DS/h
(30.0m³/h)
90kg-DS/h
(9.0m³/h)
150kg-DS/h
(7.5m³/h)
300kg-DS/h
(6.0m³/h)
390kg-DS/h
(13.0m³/h)
GNDS-304 80kg-DS/h
(40.0m³/h)
120kg-DS/h
(12.0m³/h)
200kg-DS/h
(10.0m³/h)
400kg-DS/h
(8.0m³/h)
520kg-DS/h
(17.3m³/h)
GNDS-351 40kg-DS/h
(20.0m³/h)
60kg-DS/h
(6.0m³/h)
100kg-DS/h
(5.0m³/h)
200kg-DS/h
(4.0m³/h)
260kg-DS/h
(8.67m³/h)
GNDS-352 80kg-DS/h
(40.0m³/h)
120kg-DS/h
(12.0m³/h)
200kg-DS/h
(10.0m³/h)
400kg-DS/h
(8.0m³/h)
520kg-DS/h
(17.3m³/h)
GNDS-353 120kg-DS/h
(60.0m³/h)
180kg-DS/h
(18.0m³/h)
300kg-DS/h
(15.0m³/h)
600kg-DS/h
(12.0m³/h)
780kg-DS/h
(26.0m³/h)
GNDS-354 160kg-DS/h
(80.0m³/h)
240kg-DS/h
(24.0m³/h)
400kg-DS/h
(20.0m³/h)
800kg-DS/h
(16.02m³/h)
1040kg-DS/h
(34.68m³/h)
GNDS-401 70kg-DS/h
(35m³/h)
100kg-DS/h
(10m³/h)
170kg-DS/h
(8.5m³/h)
340kg-DS/h
(6.5m³/h)
442kg-DS/h
(16.0m³/h)
GNDS-402 135kg-DS/h
(67.5m³/h)
200kg-DS/h
(20.0m³/h)
340kg-DS/h
(17.0m³/h)
680kg-DS/h
(13.6m³/h)
884kg-DS/h
(29.5m³/h)
GNDS-403 200kg-DS/h
(100m³/h)
300kg-DS/h
(30.0m³/h)
510kg-DS/h
(25.5m³/h)
1020kg-DS/h
(20.4m³/h)
1326kg-DS/h
(44.2m³/h)
GNDS-404 266kg-DS/h
(133m³/h)
400kg-DS/h
(40.0m³/h)
680kg-DS/h
(34.0m³/h)
1360kg-DS/h
(27.2m³/h)
1768kg-DS/h
(58.9m³/h)

Advantages



♦ Low operation cost: 40% of Belt Press, 20% of Decanter Centrifugal

♦ Power-saving: 5% of Decanter Centrifugal

♦ Water-saving: 0.1% of Belt Press

♦ Polymer-saving: Save 60% polymer in average

♦ Compact Design: Save space and 60% construction cost

♦ Non-clogging Design: Handle oily sludge easily

Standardized Production

High Efficiency Sludge Dewatering Equipment SS304 SS316L Long Service Life 2
