| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNXG |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 3~15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 cubic meters per month |
| Material: | PVC, PP | Application: | Water Treatment |
|---|---|---|---|
| After-sales Service: | Video Technical Support | Color: | Black, White |
| Aperture Size: | 25mm | ||
| High Light: | Inclined Tube Settler Media,Wastewater Purification Tube Settler Media,Tube Settler Clarifier |
||

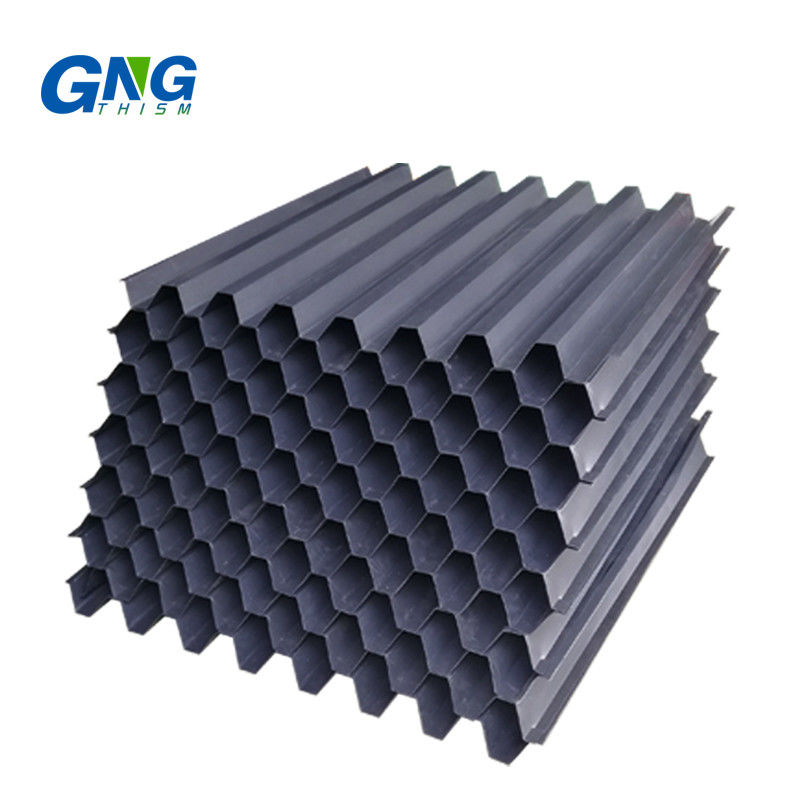

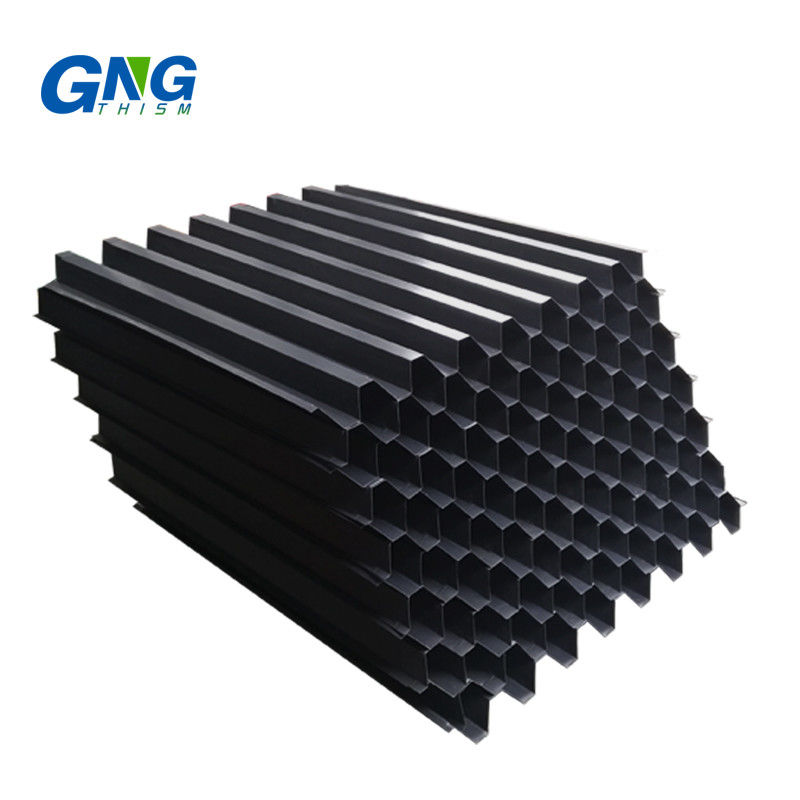

Inclined Plate Lamella Tube Settler Clarifier PVC/PP Material For Wastewater Purification
Tube settler pvc captures the settleable fine floc that escapes the clarification zone beneath the tube settlers and allows the larger floc to travel to the tank bottom in a more settleable form. The tube settler's channel collects solids into a compact mass which promotes the solids to slide down the tube channel.
Technical Parameter
| Material | Aperture(mm) | Thickness(mm) | Pieces | Color |
| PP | ø25 | 0.4 | 60 | White |
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø30 | 0.4 | 50 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø35 | 0.4 | 44 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø40 | 0.4 | 40 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø50 | 0.4 | 32 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø60 | 1.2 | 28 | ||
| ø80 | 0.4 | 20 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1.2 | ||||
| PVC | Ø35 | 0.5 | 44 | Blue/Black |
| 0.8 | ||||
| ø50 | 0.4 | 32 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| ø80 | 0.4 | 20 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 |
Main Features
1. Large wetted perimeter, hydraulic radius is small.
2. The laminar good condition, particles falling from flocculent flow interference.
3. When the tube for 1 m long, effective load by 5 tons/square meter design. And V control in 2.5- 3.0 mm/SEC effluent water, within the scope of the best.
4. In the water inlet place inclined pipe length, the honeycomb 2.0-3.0 meters, may in the 50-100 kg/m3 clay sand content of high turbidity safe operation of processing.
5. The plastic inclined packing, which the processing ability is to destabilize the flat streaming traps three to five times, accelerate
the clear pool and pulse clarify pool two to three times.
6. The material is with UV radiation protection.
