| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNNBG |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | standard export package |
| Delivery Time: | 3~15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets per month |
| Material: | SS304/SS316L | Application: | Aquaculture Water Treatment |
|---|---|---|---|
| Color: | Silver | Model: | GNNBG-01 |
| MOQ: | 1 Set | Package: | Standard Export Package |
| High Light: | nano ozone generator,dissolved oxygen generator |
||

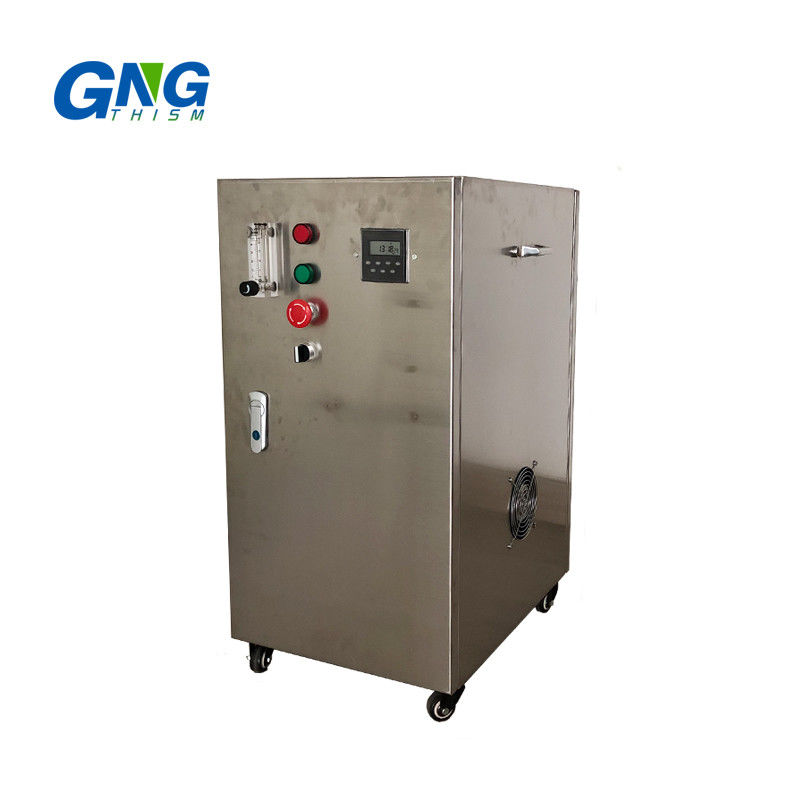

Industrial micro bubble nano oxygen generator for aquaculture water treatment
The micro nano bubble generator is using a simple method to generate micro bubbles in a liquid. This bubble generator uses the properties of the vortex pump turbine and effectively absorbs gas with a liquid or two liquids, and adding it under pressure into a process. A device that can be useful for efficient mixing and dissolving of the gaseous products in fluids. It is for this purpose equipped with a special impeller and can be used for continuous operation.
Technical Parameters
| Model | GNNBG-01 | GNNBG-02 | GNNBG-05 | GNNBG-12 | GNNBG-30 |
| Flow Rate | 1 | 2 | 5 | 12 | 30 |
| (m3/h) | |||||
| Power of Pump | 0.55 | 1.1 | 2.2 | 3 | 7 |
| (KW) | |||||
| Affected Water Area(m2/D) | 300-400 | 900-1200 | 1900-2600 | 4600-5300 | 12000-14000 |
| Working Temps(℃) | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 |
| Bubble Diameter(nm/μm) | 200nm-50μm | 200nm-50μm | 200nm-50μm | 200nm-50μm | 200nm-50μm |
| Gas-liquid Mixture Ratio | 1:6-1:9 | 1:6-1:9 | 1:6-1:9 | 1:6-1:9 | 1:6-1:9 |
| Gas-liquid Dissolving Rate | 85-90% | 85-90% | 85-90% | 85-90% | 85-90% |
Features
Ozone wastewater treatment will have a nanoscale mix water and air, greatly improve the water solubility from bottom to top.(water solubility is greater than 5 mg/L), the residence time of nanobubbles in the water 100 times longer than ordinary bubbles, cover a broader, mixing, achieve the goal of overall aerobic.
Normal aerator water oxygen absorption rate is 3% 5%, nano bubbler generator water oxygen absorption rate of 25% or more, can make the breeding density increased by more than 50%, the use of the more effective area.
