Internal Feed Rotary Drum Filter Screen / Solid Liquid Separation Equipment

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNWLN
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: standard export package
Delivery Time: 10~20days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Material: SS314/SS361L Type: Internal Feed
Application: Sewage Treatment Certification: CE/ISO9001
Capacity: 100-520m3/h
High Light:

trommel drum screen

,

rotary drum filtration

Sewage Treatment Equipment internal Feed rotary Drum Filter Screen

GNGEP drum screen filters are trusted by facilities worldwide for critical filtration needs. Constructed of the highest-quality materials and engineered for the rigors of commercial aquaculture, they provide exceptional reliability and long service life. Designed with the needs of the commercial operator in mind, the filters are also inexpensive to operate.

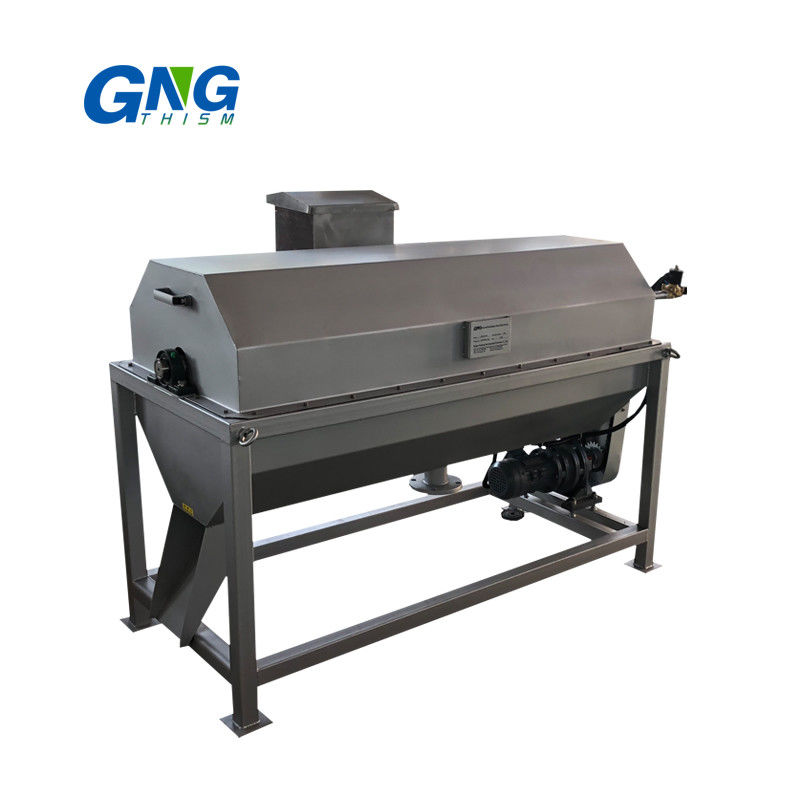

Internal Feed Rotary Drum Filter Screen / Solid Liquid Separation Equipment 0

Overall Structure

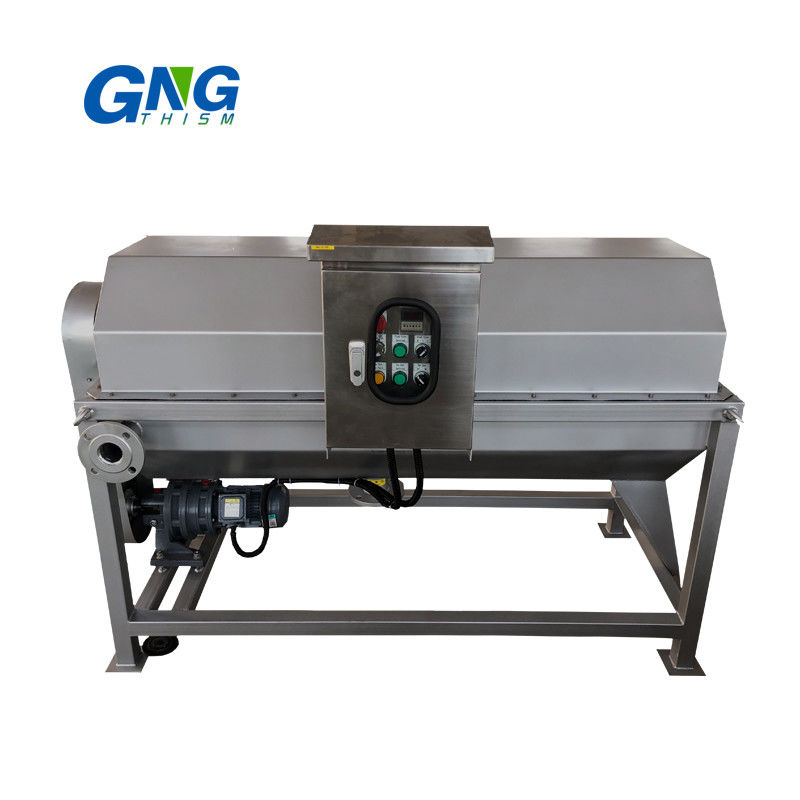

Internal Feed Rotary Drum Filter Screen / Solid Liquid Separation Equipment 1

Features

1. The uniformity of water-distribution increases the treating capacity.

2. The machine is driven by chain transmission, of high efficiency.

3. It is equipped with a reverse flushing device to prevent screen clogging.

4. Double overflow plate to prevent wastewater splash.

Technical Parameters

Dimensions Power Materia Removal rate
Solid size
>0.75mm
Solid size
>0.37mm
1500*500*1200mm 0.55KW SS304 95% 55%
1800*700*1300mm 0.75KW SS304 95% 55%
2700*900*1500mm 0.75KW SS304 95% 55%
2800*1000*1500mm 1.1KW SS304 95% 55%
3000*1100*1600mm 1.5KW SS304 95% 55%
3200*1200*1600mm 1.5KW SS304 95% 55%

Packaging & Shipping

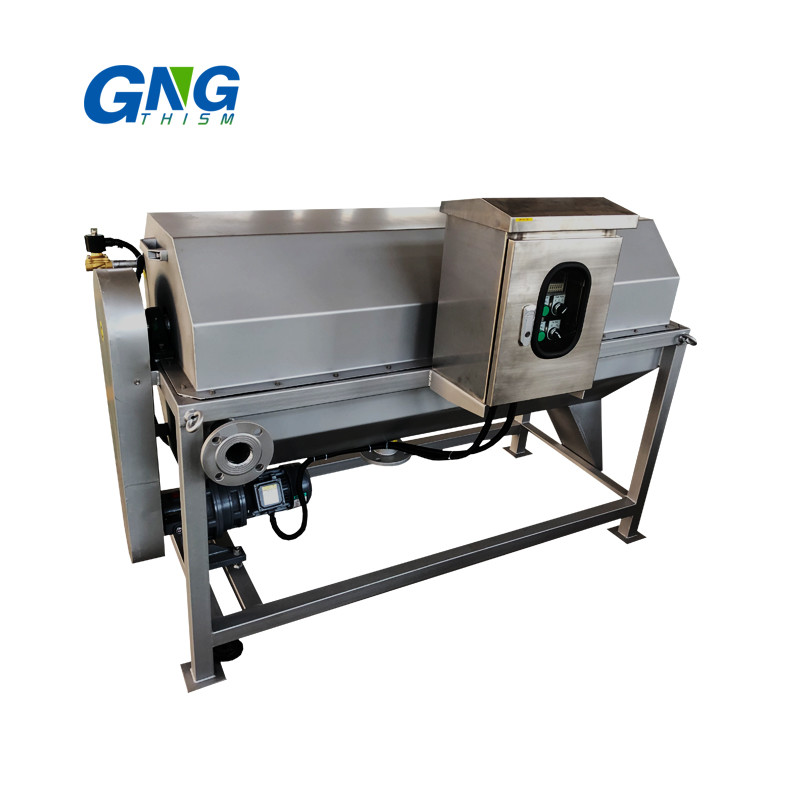

Internal Feed Rotary Drum Filter Screen / Solid Liquid Separation Equipment 2
