| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNWLN |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | standard export package |
| Delivery Time: | 10~20days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Material: | SS304/SS316L | Type: | Internal Drum FIlter Screen |
|---|---|---|---|
| Certification: | CE/ISO9001 | Usage: | Sewage Treatment |
| Color: | Silver | OEM: | Yes |
| High Light: | trommel drum screen,rotary drum filtration |
||

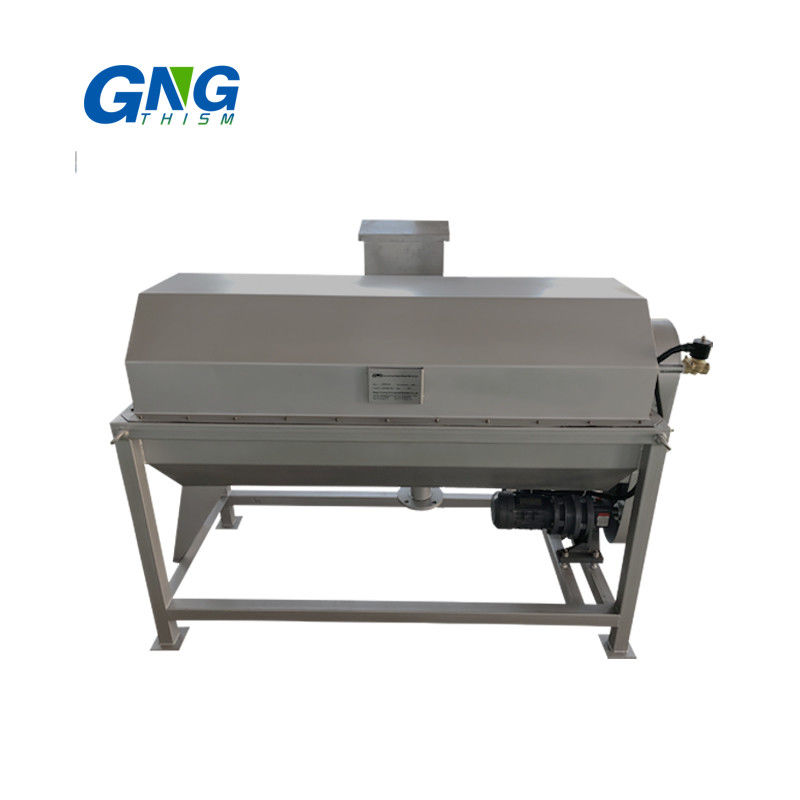

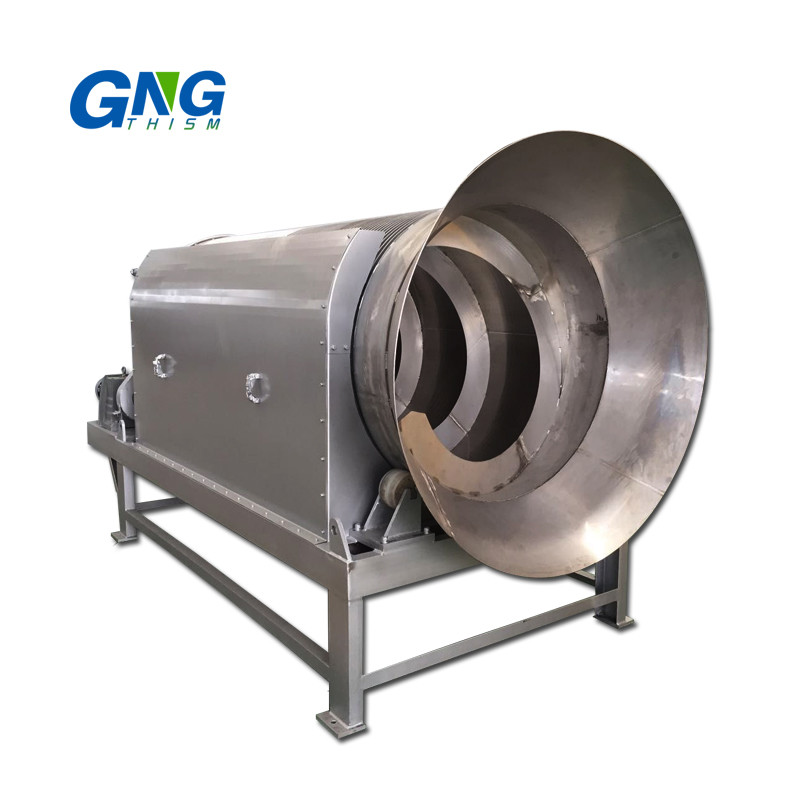

Sewage Treatment Equipment internal Feed rotary Drum Filter Screen
Drum filter screen, which is also called rotary drum screen, is suitable for the solid-liquid separation of industrial wastewater and domestic sewage. It can remove the waste solid whose size is more than 0.2mm. The effluent enters the inside of rotary drum through the feed inlet and then passing over the distribution weir on to the drum surface. The particles and water separate as the drum rotate with the solids staying on the screen and passing down the length of the drum helped by internal flights or a continuous scroll.
Overall Structure
Technical Parameters
| Dimensions | Power | Material | Removal rate | |
| Solid size >0.75mm |
Solid size >0.37mm |
|||
| 1500*500*1200mm | 0.55KW | SS304 | 95% | 55% |
| 1800*700*1300mm | 0.75KW | SS304 | 95% | 55% |
| 2700*900*1500mm | 0.75KW | SS304 | 95% | 55% |
| 2800*1000*1500mm | 1.1KW | SS304 | 95% | 55% |
| 3000*1100*1600mm | 1.5KW | SS304 | 95% | 55% |
| 3200*1200*1600mm | 1.5KW | SS304 | 95% | 55% |
Main Features
Packaging & Shipping
