| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNBQ |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2~10days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pieces per month |
| Model: | DN66 | Color: | Blue |
|---|---|---|---|
| Support Dish Material: | UPVC/ABS | Membrane: | EPDM |
| Length: | 750mm, 1000mm | Service Life: | ＞ 5 Years |
| High Light: | Silicone Fine Bubble Tube Diffuser,EPDM Fine Bubble Tube Diffuser,Membrane Aerators air diffuser tube |
||

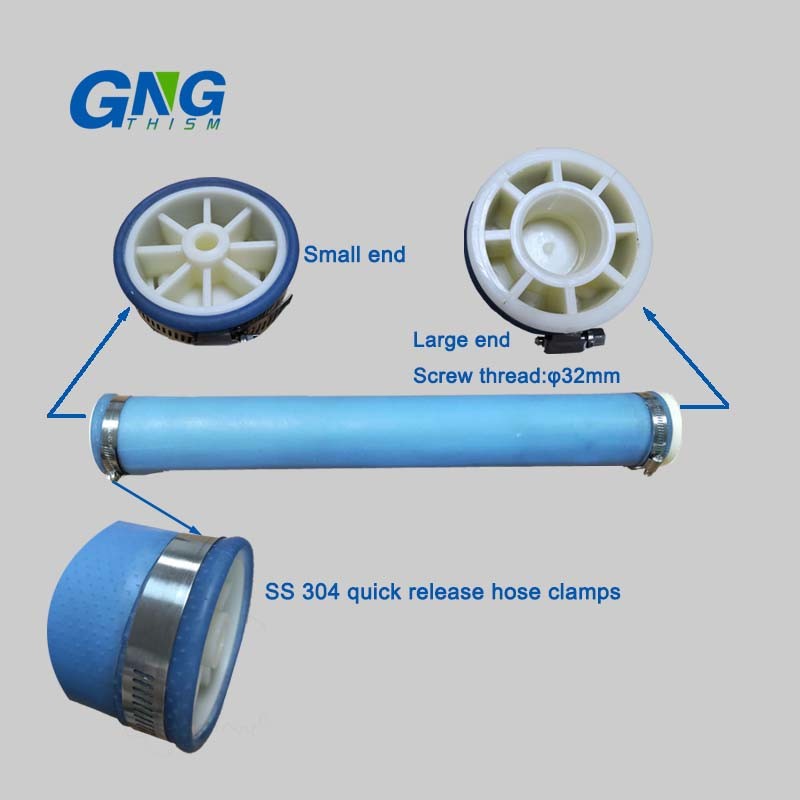

Air Diffuser Membrane Tube Aerators EPDM/Silicone Fine Bubble Tube Diffuser
The rubber membrane pipe is made from imported ethylene-propylene-diene copolymer (EPDM) or silicon rubber, which makes the membrane anti-aging, corrosion-resisting and long service life, as long as 5 to 8 years.
The aerating hole is evenly formed, leading to good expandability and instant closing. During aerating work, the fine bubbles (1 – 3 mm) can be generated and the oxygenation utilization can be as high 35 – 42%.
Technical Parameters
| Type | Membrane Tube Diffuser | ||
| Model | φ66 | φ93 | φ113 |
| Length | 500/750/1000mm | 500/750/1000mm | 500/750/1000mm |
| MOC | EPDM/Silicon membrane ABS tube | EPDM/Silicon membrane ABS/PP carrier plate | EPDM/Silicon membrane ABS/PP carrier plate |
| Connector | 1" NPT male thread 3/4" NPT male thread | 1" NPT male thread 3/4" NPT male thread | 1" NPT male thread 3/4" NPT male thread |
| Bubble Size | 1-2mm | 1-2mm | 1-2mm |
| Design Flow | 1.7-6.8m³/h | 3.4-13.6m³/h | 3.4-17.0m³/h |
| Flow Range | 2-14m³/h | 5-20m³/h | 6-28m³/h |
| SOTE | ≥40% (6m submerged) | ≥40% (6m submerged) | ≥40% (6m submerged) |
| SOTR | ≥0.90kg O2/h | ≥1.40kg O2/h | ≥1.52kg O2/h |
| SAE | ≥8.6kg O2/kw.h | ≥8.6kg O2/kw.h | ≥8.6kg O2/kw.h |
| Headloss | 2200-4800Pa | 2200-4800Pa | 2200-4800Pa |
| Service Area | 0.75-2.5m² | 1.0-3.0m² | 1.5-2.5m² |
| Service Life | > 5 year | > 5 year | > 5 year |
Install Ways
Feature
1. Increased dissolved oxygen DO
2. Declining biochemical oxygen demand BOD
3. Improved treatment of TSS total suspended solids
4. Short notice emergency aeration and simplified treatment repair
5. Aeration system energy savings
6. Overall reduction in maintenance
