Micro Nano Bubble Generator For Aquaculture Equipment SS304 SS316L Material

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNNBG
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: standard export package
Delivery Time: 3~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Material: SS304/SS316L Usage: Nano Bubble Generator
Gas-liquid Dissolving Rate: 85-90% Model: GNNBG-30
Flow Rate: 30m3/h Bubble Diameter: 200nm-50μm
High Light:

nano ozone generator


dissolved oxygen generator

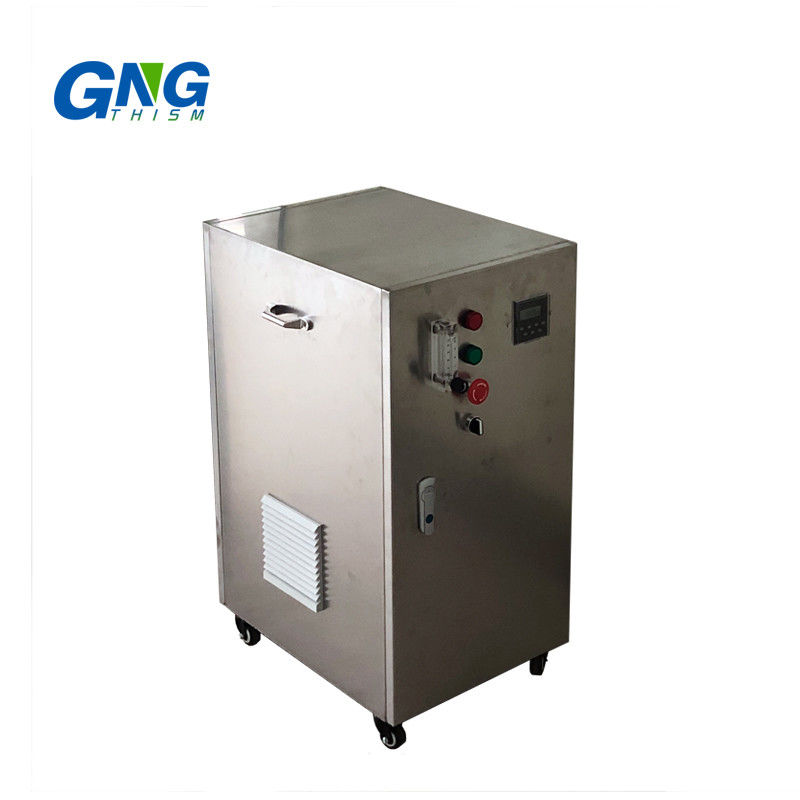

The micro nano bubble generator for aquaculture equipment

Our Micro-Nano bubble generator is the most efficient gas injection technology available to dissolve virtually any gas into any liquid. The bubble generator produces trillions of micro-nanobubbles, 200 nm to 50 microns in size. Our micro-nano bubble generators transfer gas with greater than 85% efficiency, providing maximum gas utilization, improving the functionality of water, and enhancing treatment processes. The micro-nanobubbles remain suspended in water, creating a reserve of available gas and allowing for residual disinfection.

Technical Parameters

Flow Rate 1 2 5 12 30
Power of Pump 0.55 1.1 2.2 3 7
Affected Water Area(m2/D) 300-400 900-1200 1900-2600 4600-5300 12000-14000
Working Temps(℃) 0-100 0-100 0-100 0-100 0-100
Bubble Diameter(nm/μm) 200nm-50μm 200nm-50μm 200nm-50μm 200nm-50μm 200nm-50μm
Gas-liquid Mixture Ratio 1:6-1:9 1:6-1:9 1:6-1:9 1:6-1:9 1:6-1:9
Gas-liquid Dissolving Rate 85-90% 85-90% 85-90% 85-90% 85-90%


The bubble which is 0.001 mm to 0.05 mm in size is defined as micro-nano-bubble (ultrafine bubble)

With this, Micro Bubbles can be widely adapted to different industries by integrating Micro Bubbles with various gases.

  1. Air + Water: (1) decreasing COD and SS for waste water processing (2) generating anions for bathing system (3) increasing oxygen levels in the water for hydroponics and fishery
  2. Ozone + Water: (1) rinsing food to kill bacteria and remove pesticides (2) cleaning panels and wafers of semi-conductors
  3. CO2 + Water: (1) seaweed raising (2) Nano CaCO3 coating (3) carbon capture and storage applications.
  4. H2 + Water: Creates negative ORP (Oxidation-Reduction Potential), negative hydrogen water.

Packaging & Shipping

Micro Nano Bubble Generator For Aquaculture Equipment SS304 SS316L Material 0
