| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNWLW |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | standard export package |
| Delivery Time: | 10~20days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Material: | SS304/SS316L | Type: | External Drum Filter Screen |
|---|---|---|---|
| Application: | Sewage Treatment | Usage: | Solid-liquid Seperator |
| Package: | Wooden Case | HS Code: | 8402190000 |
| High Light: | pond drum filter,trommel drum screen |
||

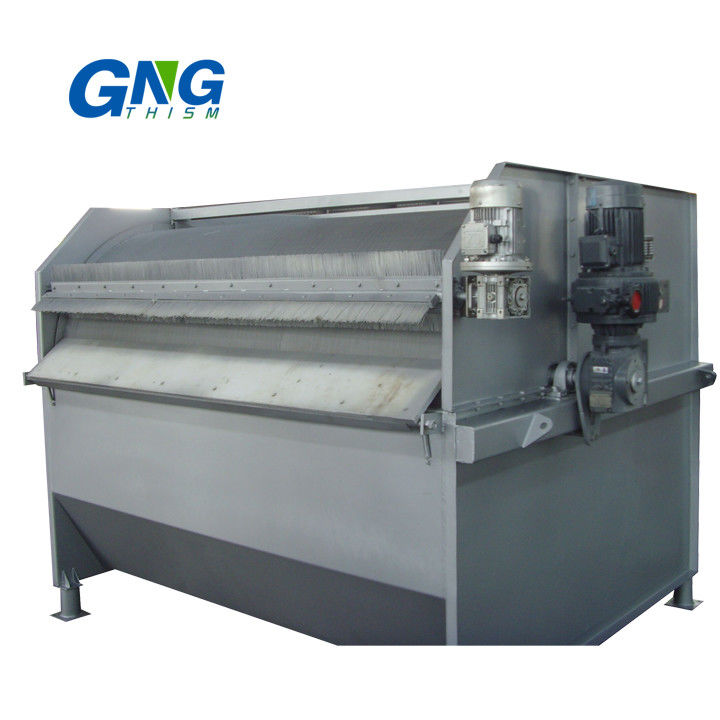

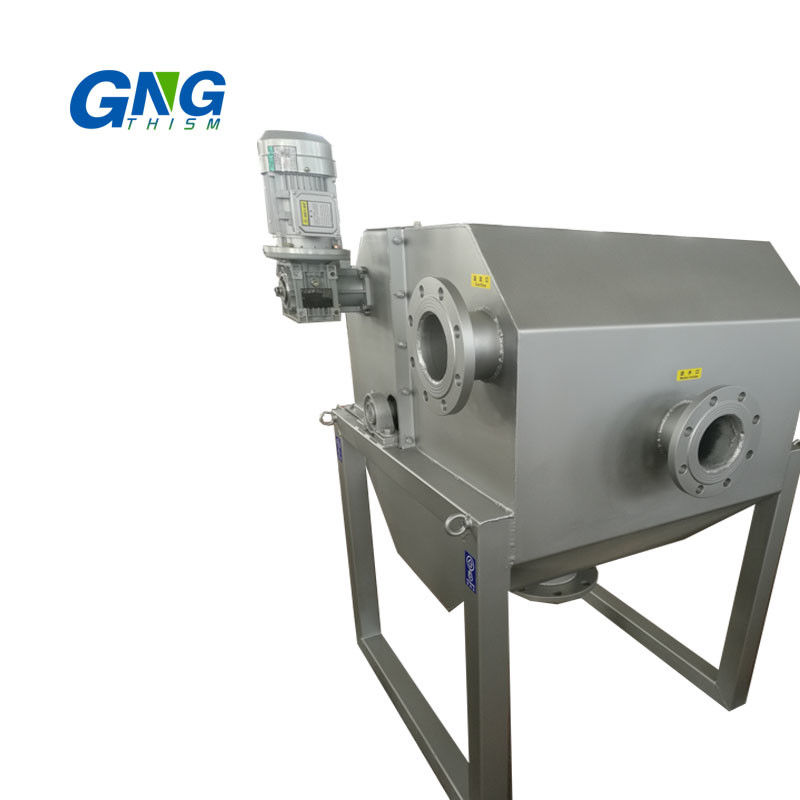

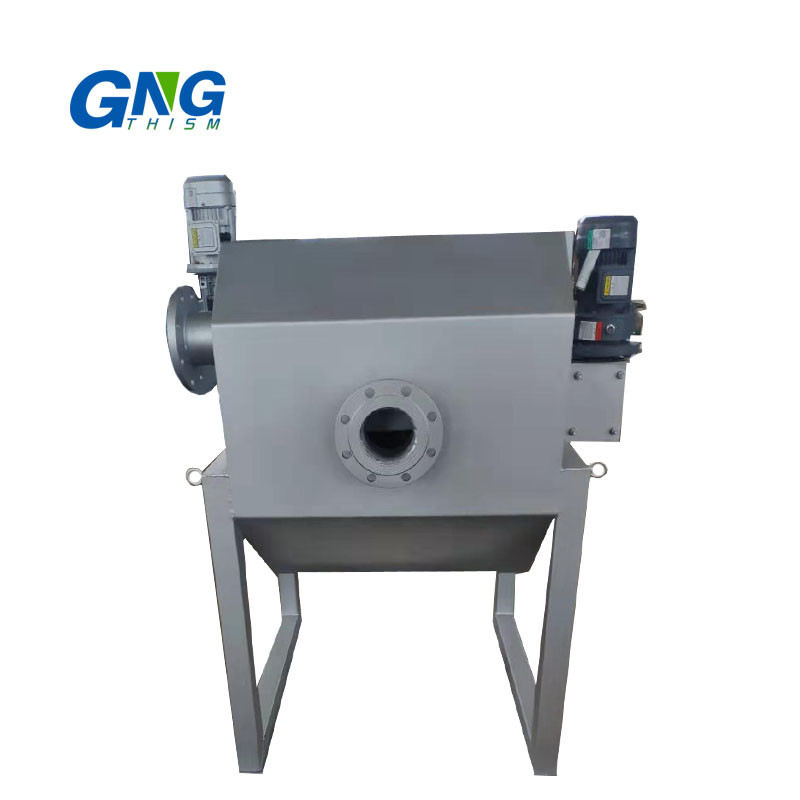

Custom stainless steel micro screen filter mesh =
Spiral Rotary Drum Screens are integrated machines consisting of a drum screen, screw conveyor and compactor. Effluent enters the screen drum and solids are captured. When the drum rotates the solids fall into the spiral conveyor. The spiral feeds the screenings into a compactor where they are compressed and disposed. Screen water continues downstream. The rotating screen drum ensures the screen does not blind. Filtration rates of between 1-7 mm are available, alongside flow rates of up to 7600m3/h.
Working Principle
Technical Parameters
| Model | Screen Size | Power | Material | Backwash water | Dimension (MM) |
|
| GNWLW-300 | Φ300*500mm Space:0.15-5mm |
0.55KW | SS304 | 2.5-3 | ≥0.4 | 760*700*1200 |
| GNWLW-400 | Φ400*600mm Space:0.15-5mm |
0.55KW | SS304 | 2.5-3 | ≥0.4 | 860*800*1300 |
| GNWLW-500 | Φ500*750mm Space:0.15-5mm |
0.75KW | SS304 | 2.5-3 | ≥0.4 | 1050*900*1500 |
| GNWLW-600 | Φ600*900mm Space:0.15-5mm |
0.75KW | SS304 | 3.5-4 | ≥0.4 | 1160*1000*1500 |
| GNWLW-700 | Φ700*1000mm Space:0.15-5mm |
0.75KW | SS304 | 3.5-4 | ≥0.4 | 1260*1100*1600 |
| GNWLW-800 | Φ800*1200mm Space:0.15-5mm |
1.1KW | SS304 | 4.5-5 | ≥0.4 | 1460*1200*1700 |
| GNWLW-900 | Φ900*1350mm Space:0.15-5mm |
1.5KW | SS304 | 4.5-5 | ≥0.4 | 1600*1300*1800 |
| GNWLW-1000 | Φ1000*1500mm Space:0.15-5mm |
1.5KW | SS304 | 4.5-5 | ≥0.4 | 1600*1300*1800 |
Production Process
Application Scope
The equipment can remove fine particles with a diameter of 0.25mm or more in water, and is most suitable for wastewater treatment in various industries such as paper making, tanning, slaughtering, brewing, food, chemical fiber and textile.Water separation treatment of industrial waste water in these industries:
