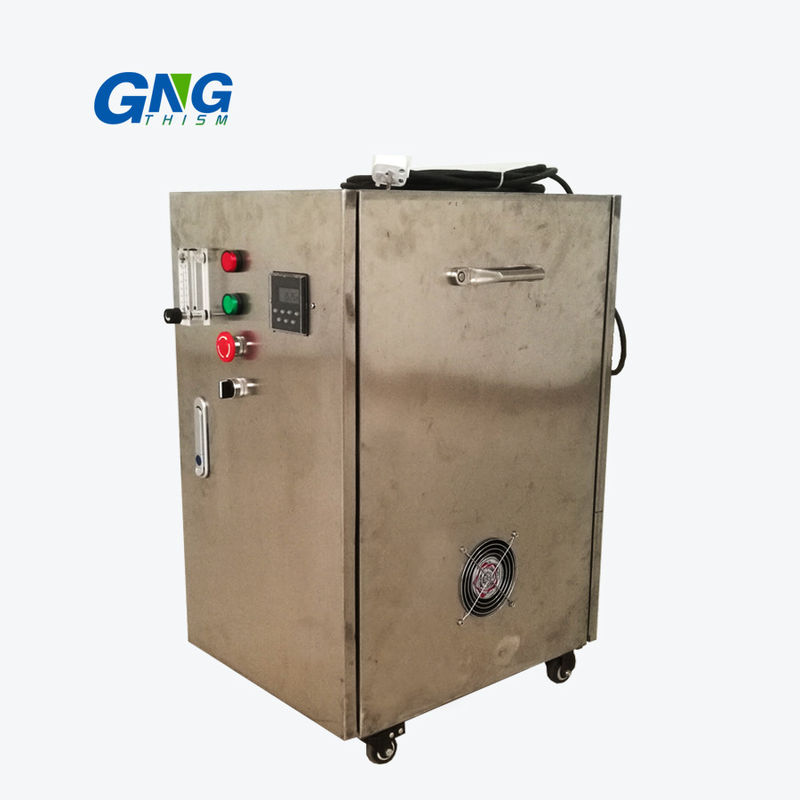

Nano Ultra Fine Bubble Generator Hydrogen Water For Fish Tank 1 - 30m3/H

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNNBG
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: standard export package
Delivery Time: 3~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Material: SS304/SS316L Application: Fish Tank
Color: Silver Working Temps: 0-100℃
Flow Rate: 1-30m3/h Power Frequency: 50HZ/60HZ
High Light:

micro bubble machine

,

dissolved oxygen generator

Hydrogen water and china oxygen Micro Nano Bubble Generator for aquaculture

When the nano bubble generator starts working, the water pump produces water flow and form high-velocity flow by the nozzle, around the nozzle will form negative pressure and get air, the air will mix with water in mix chamber. The mixed air and water will jet out at high speed by diffuser. The air-water mixing will take on aeration processing in a wastewater pond. Besides, the axial power will not change when the depth change, the air inflow can change. So the nano bubble generator can be used in the water level change large.

Technical Parameters

Model GNNBG-01 GNNBG-02 GNNBG-05 GNNBG-12 GNNBG-30
Flow Rate 1 2 5 12 30
(m3/h)
Power of Pump 0.55 1.1 2.2 3 7
(KW)
Affected Water Area(m2/D) 300-400 900-1200 1900-2600 4600-5300 12000-14000
Working Temps(℃) 0-100 0-100 0-100 0-100 0-100
Bubble Diameter(nm/μm) 200nm-50μm 200nm-50μm 200nm-50μm 200nm-50μm 200nm-50μm
Gas-liquid Mixture Ratio 1:6-1:9 1:6-1:9 1:6-1:9 1:6-1:9 1:6-1:9
Gas-liquid Dissolving Rate 85-90% 85-90% 85-90% 85-90% 85-90%

Application

1. Medical treatment industry: disinfect sickroom, operating room, medical treatment equipment, aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Seafood factory: Remove the smell of seafood factory and kill bacterias, disinfect production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacterias, disinfect production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacterias, disinfect water for poultry feeding.
6. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop, etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Bactria, Virus to fresh air.
Water purifier: Disinfect production Water supply.
7. Bottled Water, Domestic Water, Well Water, Pool Water Disinfection & Sterilization
