| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNDAF |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | standard export package |
| Delivery Time: | 10~20days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Material: | Stainless Steel 304/SS316L | Application: | Sewage Treatment |
|---|---|---|---|
| Function: | Removing COD/BOD | Warranty: | 1 Year |
| Control: | Automatic | Brand: | GNGTHISM |
| High Light: | Oil Removal Daf Machine,Leather Wastewater Treatment Daf Machine |
||

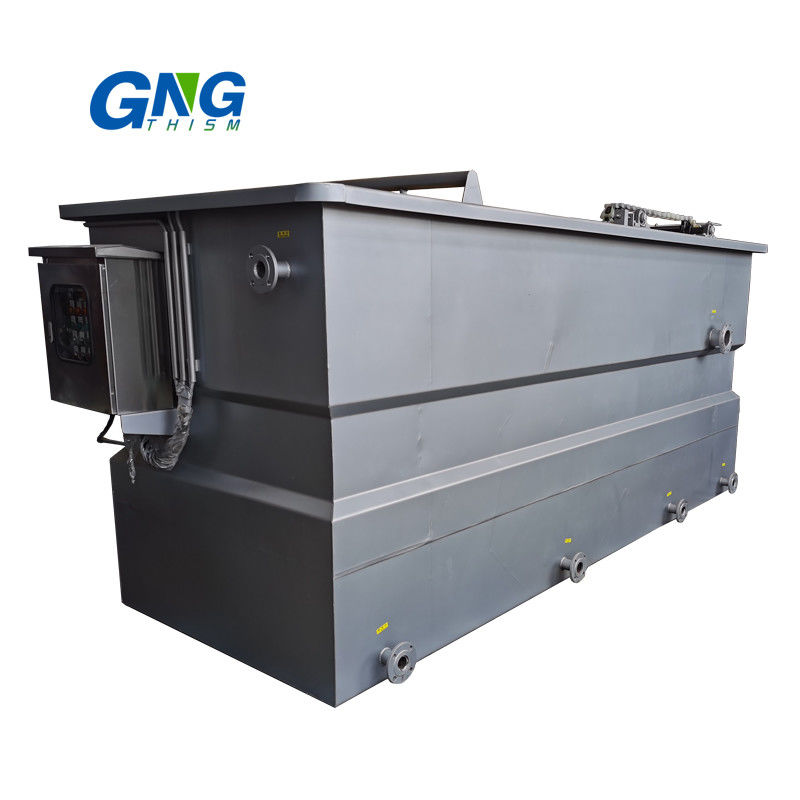

Oil Removal Dissolved Air Flotation Equipment Applied To Leather Wastewater Treatment Dissolved Air Flotation Equipment
Dissolved Air Floatation is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.
Technical Parameters
| Model |
Capacity (m3/h) |
Dissolved Air Water Volume (m3/h) |
Main Motor Power (KW) |
Scraper Power (KW) |
Air Compressor Power (kw) |
Dimentions (mm) |
| GNDAF-5 | 4-5 | 2 | 3 | 0.55 | 0.75 | 2800*2100*2200 |
| GNDAF-10 | 8-10 | 3.5 | 3 | 0.55 | 0.75 | 3700*2100*2200 |
| GNDAF-15 | 10-15 | 5 | 4 | 0.55 | 1.5 | 4500*2200*2300 |
| GNDAF-20 | 15-20 | 8 | 5.5 | 0.55 | 1.5 | 4650*2400*2300 |
| GNDAF-30 | 20-30 | 10 | 5.5 | 0.75 | 1.5 | 5840*2700*2300 |
| GNDAF-40 | 35-40 | 15 | 7.5 | 0.75 | 1.5 | 6800*2700*2300 |
| GNDAF-50 | 45-50 | 25 | 7.5 | 0.75 | 2.2 | 7500*2900*2300 |
| GNDAF-60 | 55-60 | 25 | 7.5 | 1.1 | 2.2 | 8500*2900*2300 |
| GNDAF-70 | 65-70 | 30 | 15 | 1.1 | 2.2 | 9000*2900*2300 |
| GNDAF-80 | 75-80 | 30 | 15 | 1.1 | 2.2 | 9300*3500*2300 |
| GNDAF-100 | 95-100 | 50 | 15 | 1.1 | 3 | 11750*3750*2300 |
| GNDAF-150 | 140-150 | 50 | 15 | 1.5 | 3 | 12100*3750*2300 |
| GNDAF-200 | 190-200 | 80-100 | 22 | 1.5 | 3 | 12400*3750*2860 |
| GNDAF-250 | 240-250 | 100 | 22 | 1.5 | 3 | 14700*3750*2860 |
| GNDAF-300 | 280-300 | 100 | 22 | 1.5 | 3 | 19100*3750*3150 |
Advantage
1. Flow rate of one set: 1-300 m³/h.
2. Recycle flow dissolved air flotation.
3. High efficiency pressurization system providing high quantity dissolved-air water to create large quantities of small bubbles.
4. Custom design on different dissolved air flotation equipment and recycle flow ratio according to the type of wastewater and treatment requirement to achieve target removal effect and stability.
5. Adjustable stainless steel chain type skimmer to suit the different quantity of sludge.
6. Integrated coagulation tank and or flocculation tank and cleaning water tank(as optional)is
available to save the space and cost.
7. Automatic and remote controllable.
8. Material of construction: carbon steel epoxy painted, carbon steel FRP line, stainless steel
SS304/SS316L.
