Place of Origin: | China |
---|---|
Brand Name: | GNGTHISM |
Certification: | CE/ISO9001 |
Model Number: | GNDAF |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | standard export package |
Delivery Time: | 10~20days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20 sets per month |
Material: | SS304/SS316L | Application: | Water Treatment |
---|---|---|---|
Function: | Removing TSS | Warranty: | 1 Year |
Control: | Automatic Control Box | Origin: | Jiangsu, China |
High Light: | Oil Water Separated Daf Unit,Sewage Treatment Daf Unit,Sewage Treatment daf equipment |

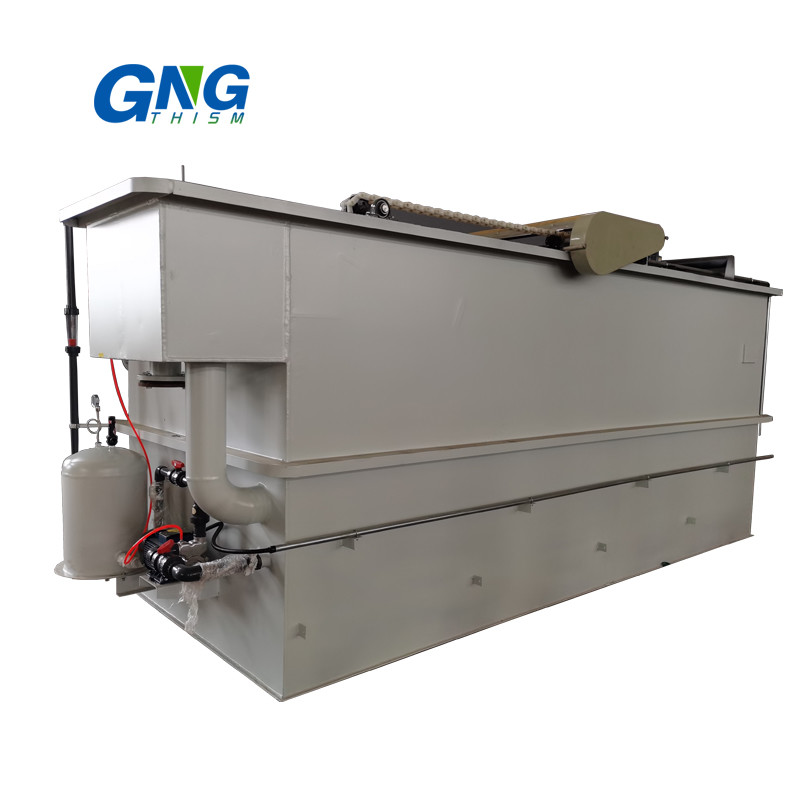

Automatic Oil Water Separated For Sewage Treatment Dissolved Air Flotation Equipment
By the compressor,the air will be sent into air tank.Then it will be taken in air dissolved tank by jet flow device.In the dissolved tank,the air will be liquefied under 0.35Mpa pressure.Then the liquefied are will be sent to air flotation tank.When released suddenly, the air will be dissolved out and turn into a microbubble group.The group will meet the flocculating suspension in the sewage which is sent by pump and already medicated.It will be absorded in the flocculated suspension while slowly rising up.Along with reduction of the suspension's density,the suspension will go up to the water surface.Finally,the SS and CODcr will be removed.
Advantage
1. Adjustable stainless steel chain type skimmer to suit the different quantity of sludge.
2. Integrated coagulation tank and or flocculation tank and cleaning water tank(as optional)is
available to save the space and cost.
3. Automatic and remote controllable.
4. Material of construction: carbon steel epoxy painted, carbon steel FRP line, stainless steel
SS304/SS316L.
Technical Parameters
Model |
Capacity (m3/h) |
Dissolved Air Water Volume (m3/h) |
Main Motor Power (KW) |
Scraper Power (KW) |
Air Compressor Power (kw) |
Dimentions (mm) |
GNDAF-5 | 4-5 | 2 | 3 | 0.55 | 0.75 | 2800*2100*2200 |
GNDAF-10 | 8-10 | 3.5 | 3 | 0.55 | 0.75 | 3700*2100*2200 |
GNDAF-15 | 10-15 | 5 | 4 | 0.55 | 1.5 | 4500*2200*2300 |
GNDAF-20 | 15-20 | 8 | 5.5 | 0.55 | 1.5 | 4650*2400*2300 |
GNDAF-30 | 20-30 | 10 | 5.5 | 0.75 | 1.5 | 5840*2700*2300 |
GNDAF-40 | 35-40 | 15 | 7.5 | 0.75 | 1.5 | 6800*2700*2300 |
GNDAF-50 | 45-50 | 25 | 7.5 | 0.75 | 2.2 | 7500*2900*2300 |
GNDAF-60 | 55-60 | 25 | 7.5 | 1.1 | 2.2 | 8500*2900*2300 |
GNDAF-70 | 65-70 | 30 | 15 | 1.1 | 2.2 | 9000*2900*2300 |
GNDAF-80 | 75-80 | 30 | 15 | 1.1 | 2.2 | 9300*3500*2300 |
GNDAF-100 | 95-100 | 50 | 15 | 1.1 | 3 | 11750*3750*2300 |
GNDAF-150 | 140-150 | 50 | 15 | 1.5 | 3 | 12100*3750*2300 |
GNDAF-200 | 190-200 | 80-100 | 22 | 1.5 | 3 | 12400*3750*2860 |
GNDAF-250 | 240-250 | 100 | 22 | 1.5 | 3 | 14700*3750*2860 |
GNDAF-300 | 280-300 | 100 | 22 | 1.5 | 3 | 19100*3750*3150 |
Application
* Slaughterhouse Wastewater Treatment
* Dairy and Milk Wastewater Treatment
* Metal Plating and Finishing Wastewater Treatment
* Lake Water River Water Purification
* Micro-algae Collection
* Petrochemical Wastewater Treatment
