Pond Drum Filter External Feed Type Sewage Treatment Solid Liquid Separation

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNWLW
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: standard export package
Delivery Time: 10~20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Material: SS304/SS316L Type: Roatry
Application: Sewage Treatment Usage: Solid-liquid Seperator
Cutomized: Available OEM: Yes
High Light:

pond drum filter

,

rotary drum filtration

External feed type drum filters for koi ponds

Drum filter screen external feed is composed of a case made up of stainless steel plate and section bars. The stainless steel filter, whose surface is made up of a stainless steel "v" profile wedge wire type winded up as a spiral, rotates inside the case. The distance between each coil is the same as the desired filtering slot.

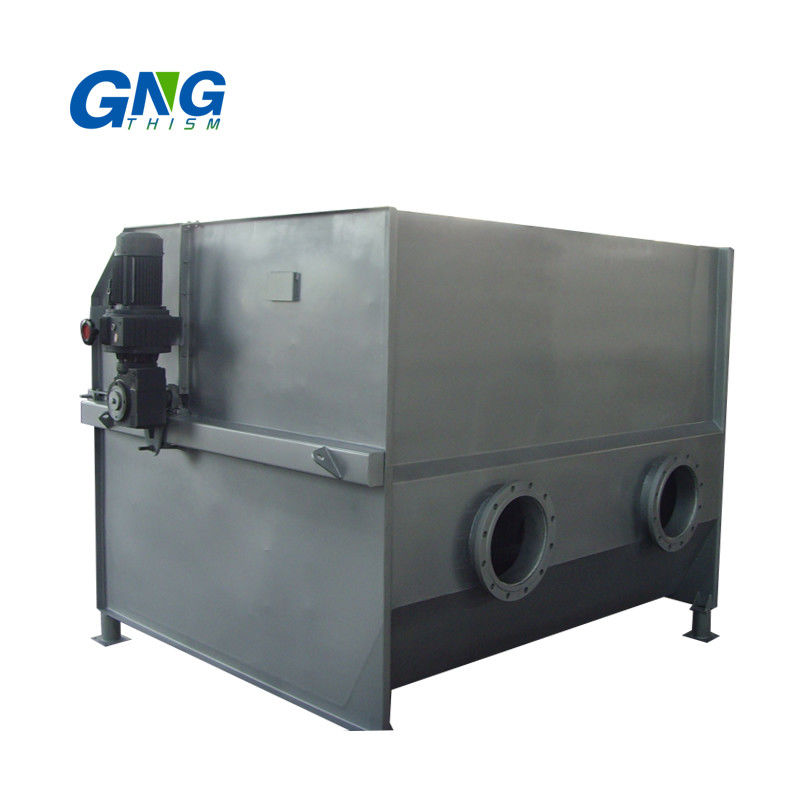

Pond Drum Filter External Feed Type Sewage Treatment Solid Liquid Separation 0

Working Principle

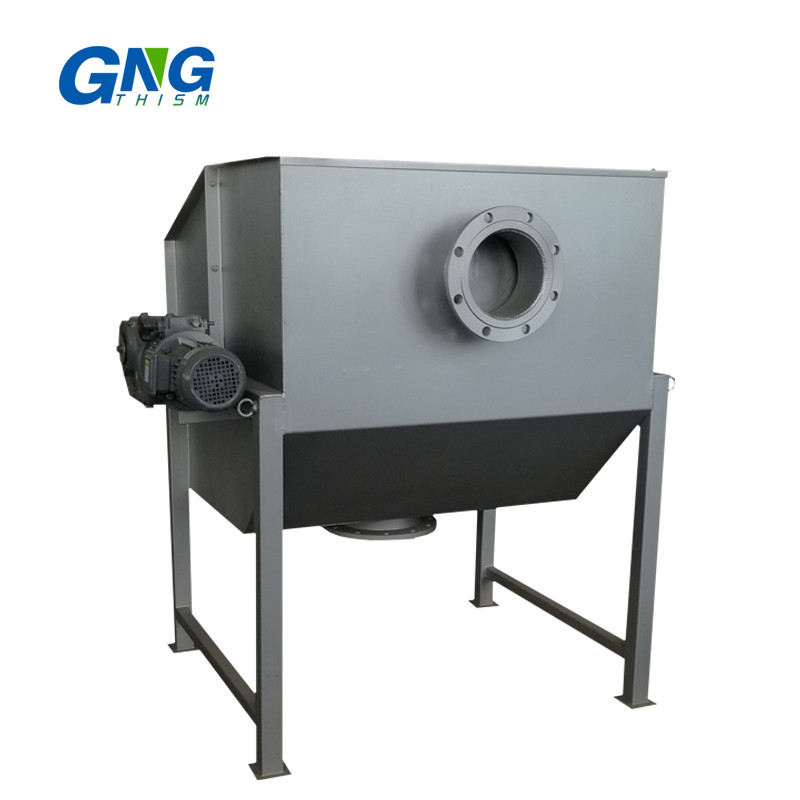

Pond Drum Filter External Feed Type Sewage Treatment Solid Liquid Separation 1

Technical Parameters

Model Screen Size Power Material Backwash water Dimension
(MM)
GNWLW-300 Φ300*500mm
Space:0.15-5mm
0.55KW SS304 2.5-3 ≥0.4 760*700*1200
GNWLW-400 Φ400*600mm
Space:0.15-5mm
0.55KW SS304 2.5-3 ≥0.4 860*800*1300
GNWLW-500 Φ500*750mm
Space:0.15-5mm
0.75KW SS304 2.5-3 ≥0.4 1050*900*1500
GNWLW-600 Φ600*900mm
Space:0.15-5mm
0.75KW SS304 3.5-4 ≥0.4 1160*1000*1500
GNWLW-700 Φ700*1000mm
Space:0.15-5mm
0.75KW SS304 3.5-4 ≥0.4 1260*1100*1600
GNWLW-800 Φ800*1200mm
Space:0.15-5mm
1.1KW SS304 4.5-5 ≥0.4 1460*1200*1700
GNWLW-900 Φ900*1350mm
Space:0.15-5mm
1.5KW SS304 4.5-5 ≥0.4 1600*1300*1800
GNWLW-1000 Φ1000*1500mm
Space:0.15-5mm
1.5KW SS304 4.5-5 ≥0.4 1600*1300*1800

Benefits

• With factory-direct service and spare parts.

• Removes excess feed, and other organic matter.

• Continuous filtering, even during backwashing.

• Very low operating cost and minimal backwash water consumption.

• Superior screen design for long service life.

• Ideal for sand filter backwash recovery.

Packaging & Shipping

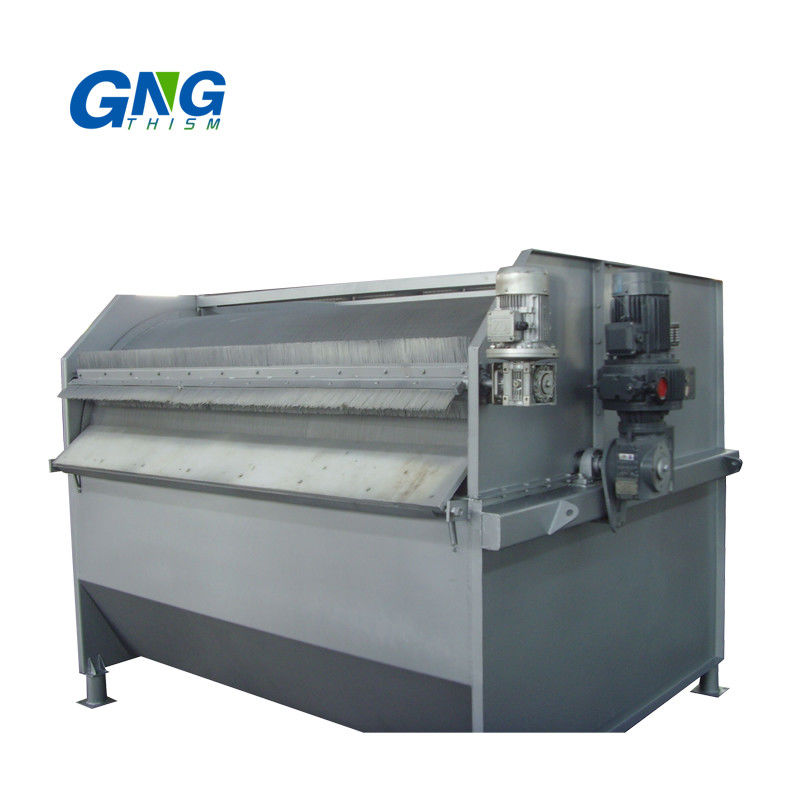

Pond Drum Filter External Feed Type Sewage Treatment Solid Liquid Separation 2
