| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNXG |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 3~15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 cubic meters per month |
| Material: | PP/PVC | Application: | Wastewater |
|---|---|---|---|
| After-sales Service: | Video Technical Support | Color: | White/Black |
| Aperture Size: | 25 30 35 50mm | ||
| High Light: | water treatment plate settler clarifier,papermaking plate settler clarifier,PP Plate Settler Clarifier |
||

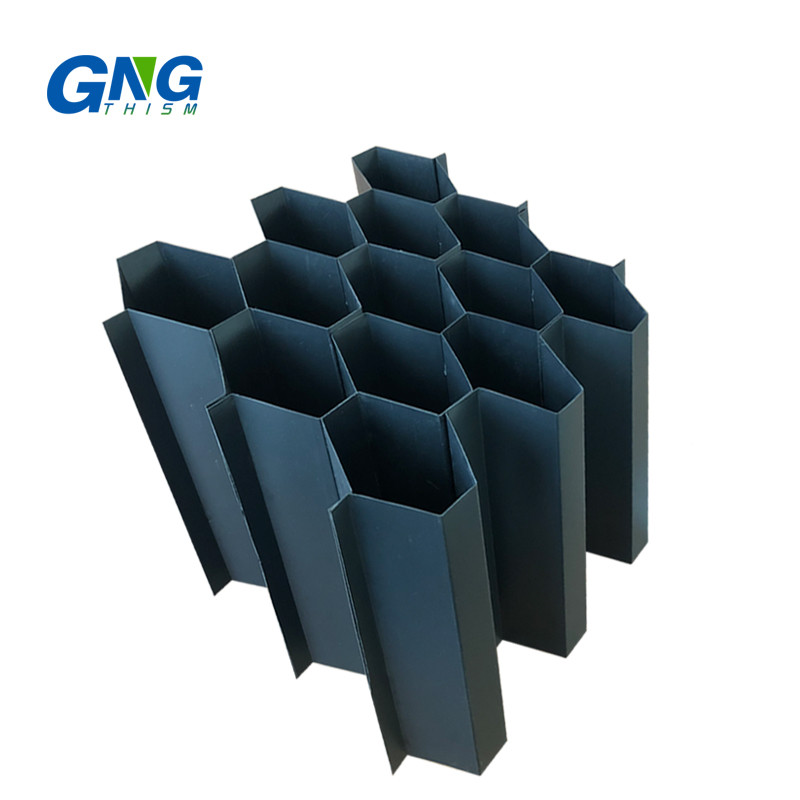

Plate Settler Clarifier Widely Used In Papermaking Water Treatment Tube Settler Media
PP PVC lamella clarifier inclined tube settler media is very suitable in all different clarifiers and removing sand. It is regarded as universal water treatment equipment in water supply and drainage engineering. It has a wide application, high handling efficiency, small area, etc. It is suitable in removing sand in inlet, industry and drinking water precipitation, separation in oil & water.

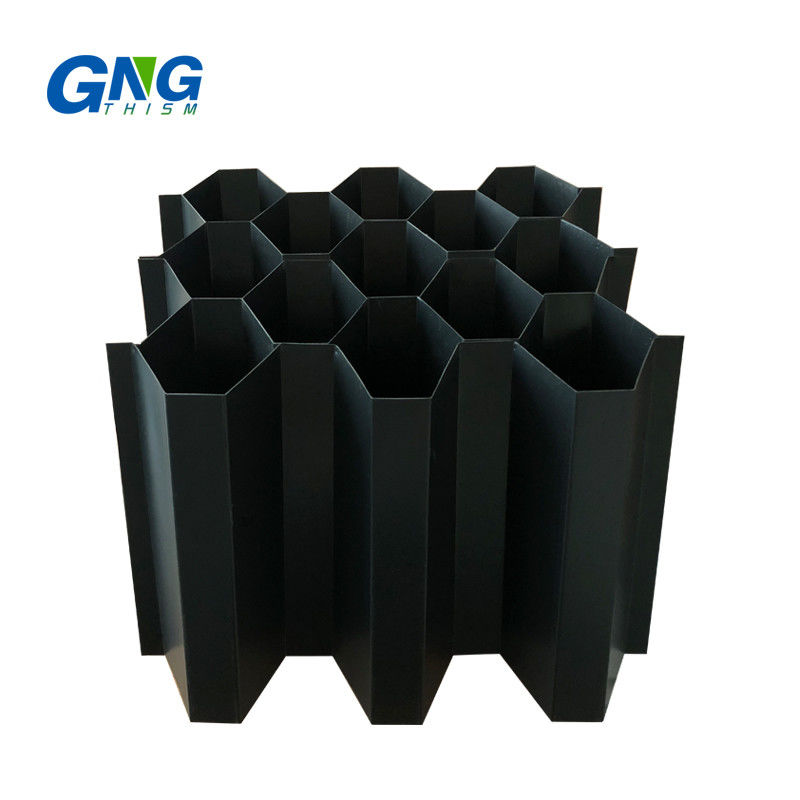

The modular and cubical self-supporting settler design of honeycombed inclined tube settler aids handling during installation and any subsequent maintenance.
PP PVC lamella clarifier tube settler media for trickling filter for sewage water treatment design avoids thin wall membranes and utilizes forming techniques to minimize component stress and subsequent environmental stress cracking fatigue.
PP PVC lamella clarifier inclined tube settler media for sewage water treatment offers an inexpensive method of upgrading existing water treatment plant clarifiers and sedimentation basins to improve performance. They can also reduce the tankage/footprint required in new installations or improve the performance of existing settling basins by reducing the solids loading on downstream filters.
Technical Parameter
| Material | Aperture(mm) | Thickness(mm) | Pieces | Color |
| PP | ø25 | 0.4 | 60 | White |
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø30 | 0.4 | 50 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø35 | 0.4 | 44 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø40 | 0.4 | 40 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø50 | 0.4 | 32 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø60 | 1.2 | 28 | ||
| ø80 | 0.4 | 20 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1.2 | ||||
| PVC | Ø35 | 0.5 | 44 | Blue/Black |
| 0.8 | ||||
| ø50 | 0.4 | 32 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| ø80 | 0.4 | 20 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 |
Main Features
♦ Large wetted perimeter, hydraulic radius is small.
♦ The laminar good condition, particles falling from flocculent flow interference.
♦ When the tube for 1 m long, effective load by 5 tons/square meter design.And V control in 2.5- 3.0 mm/SEC effluent water,within the scope of the best.
♦ In the water inlet place inclined pipe length, the honeycomb 2.0-3.0 meters, may in the 50-100 kg/m3 clay sand content of high turbidity safe operation of processing.
♦ The plastic inclined packing, which the processing ability is to destabilize the flat streaming traps three to five times, accelerate the clear pool and pulse clarify pool two to three times.
♦ The material is with UV radiation protection.
Applications
● Water following physical-chemical treatment
● Tailings in mining and metallurgical benificaition
● Solutions from gold leaching processes
● Wet scrubbing effluents
● Effluent treatment in pulp and paper mills
● Filter backwash
