Sewage Treatment Trommel Drum Screen Filter For Winery Effluent Silver Color

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNWLN
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: standard export package
Delivery Time: 10~20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Material: SS304/SS316L Type: Roatry
Certification: CE/ISO9001 Application: Winery Effluent
Color: Silver MOQ: 1 Set
High Light:

pond drum filter

,

trommel drum screen

Sewage treatment trommel drum screen filter for winery effluent

The drum filter screen internal feed is used for filtration, the filtration process used here is inside out. The drum filter screen internal feed consists of a filtration screen drum which is rotating. The effluent to be filtered is fed right into the center of the drum. The rotating drum also consists of screw flights to move the trapped solids in the forward direction. The solids are trapped inside the drum and the filtered water simply flows out through the screen by gravity. The clogged screen is cleaned by a back washing flushing arrangement and a brush. Both these arrangements are provided from the outside of the screen. The feed into this equipment has to be pumped inside. The bottom collection tank has three compartments, one where the filtrate is collected, second where the overflow can be collected and third a guide hopper from where the solids fall down. The Equipment is completely enclosed when in operation.

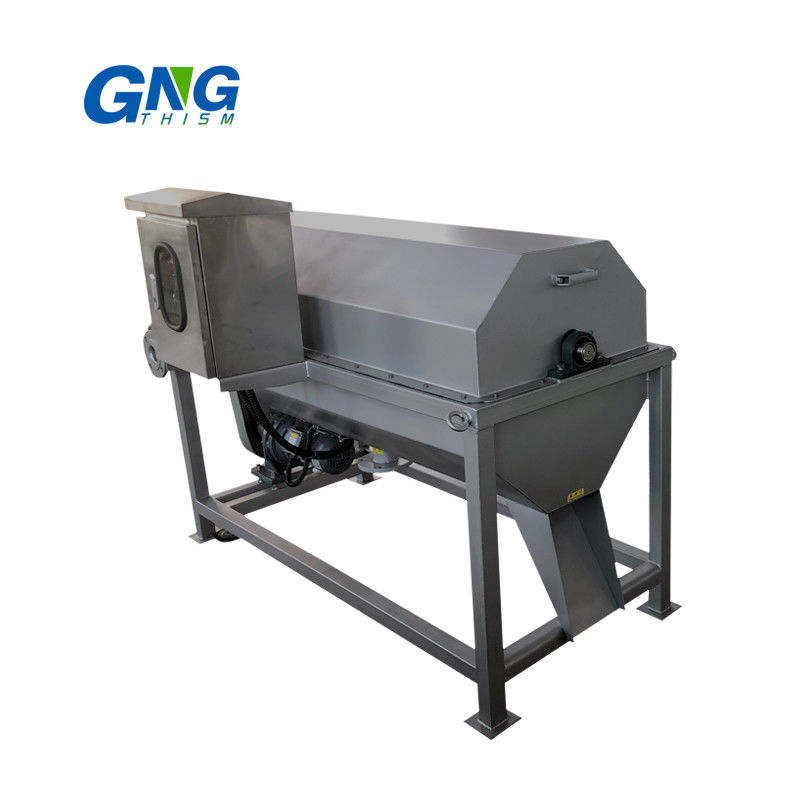

Sewage Treatment Trommel Drum Screen Filter For Winery Effluent Silver Color 0

Overall Structure

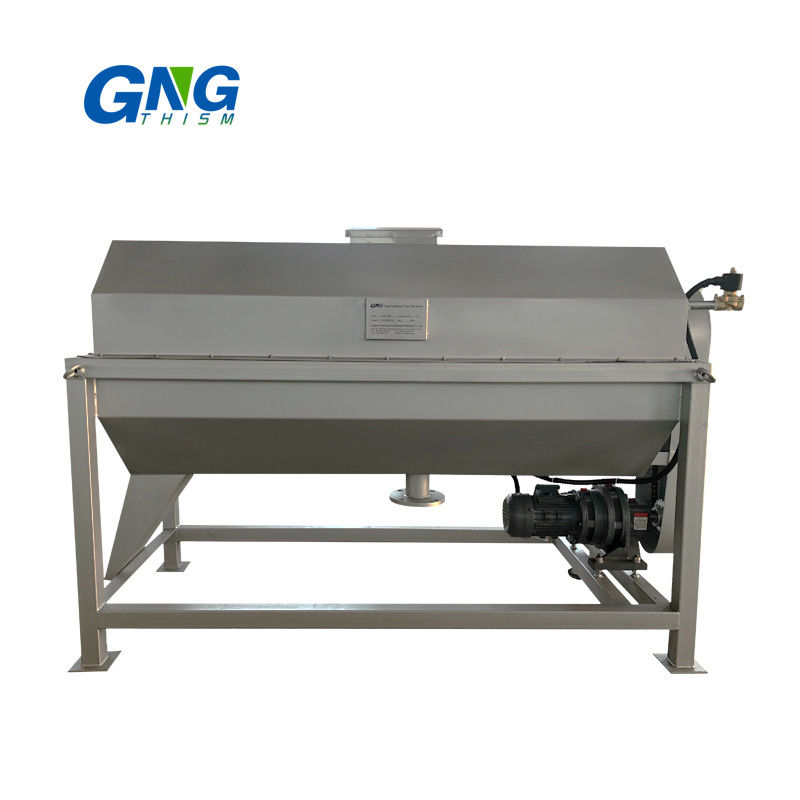

Sewage Treatment Trommel Drum Screen Filter For Winery Effluent Silver Color 1

Technical Parameters

Dimensions Power Materia Removal rate
Solid size
>0.75mm
Solid size
>0.37mm
1500*500*1200mm 0.55KW SS304 95% 55%
1800*700*1300mm 0.75KW SS304 95% 55%
2700*900*1500mm 0.75KW SS304 95% 55%
2800*1000*1500mm 1.1KW SS304 95% 55%
3000*1100*1600mm 1.5KW SS304 95% 55%
3200*1200*1600mm 1.5KW SS304 95% 55%

Benefits

• With factory-direct service and spare parts.

• Removes excess feed, and other organic matter.

• Continuous filtering, even during backwashing.

• Very low operating cost and minimal backwash water consumption.

• Superior screen design for long service life.

• Ideal for sand filter backwash recovery.

Packaging & Shipping

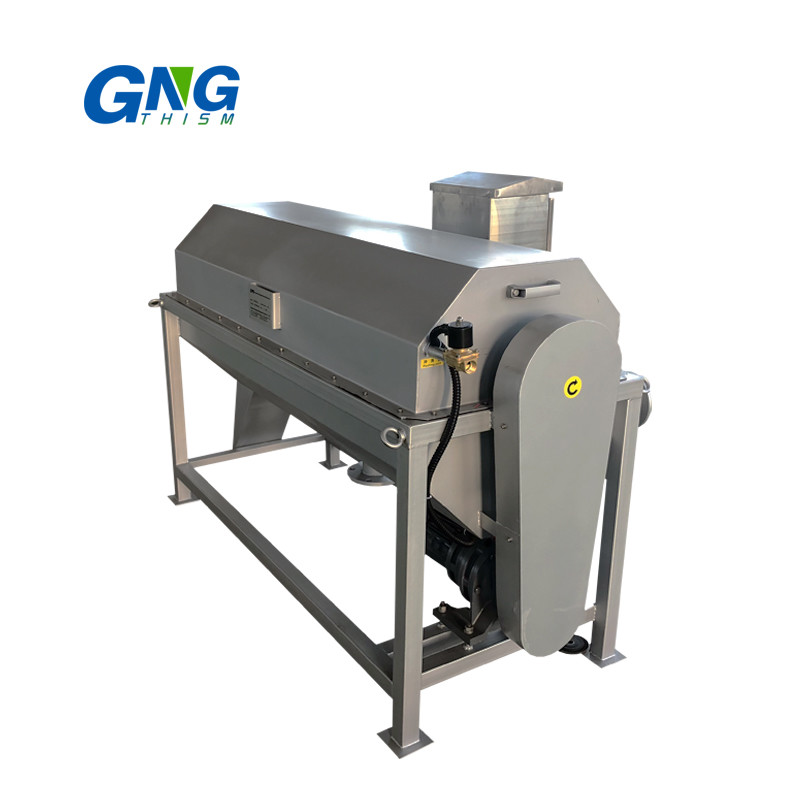

Sewage Treatment Trommel Drum Screen Filter For Winery Effluent Silver Color 2
