| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNXG |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 3~15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 cubic meters per month |
| Material: | PP Or PVC | Application: | Wastewater Treatment |
|---|---|---|---|
| After-sales Service: | Video Technical Support | Color: | White Or Black |
| Aperture Size: | 25 Or 30 Or 35 Or 50mm | ||
| High Light: | 50mm tube settler media,sewagewater treatment tube settler media,50mm plate and tube settlers |
||

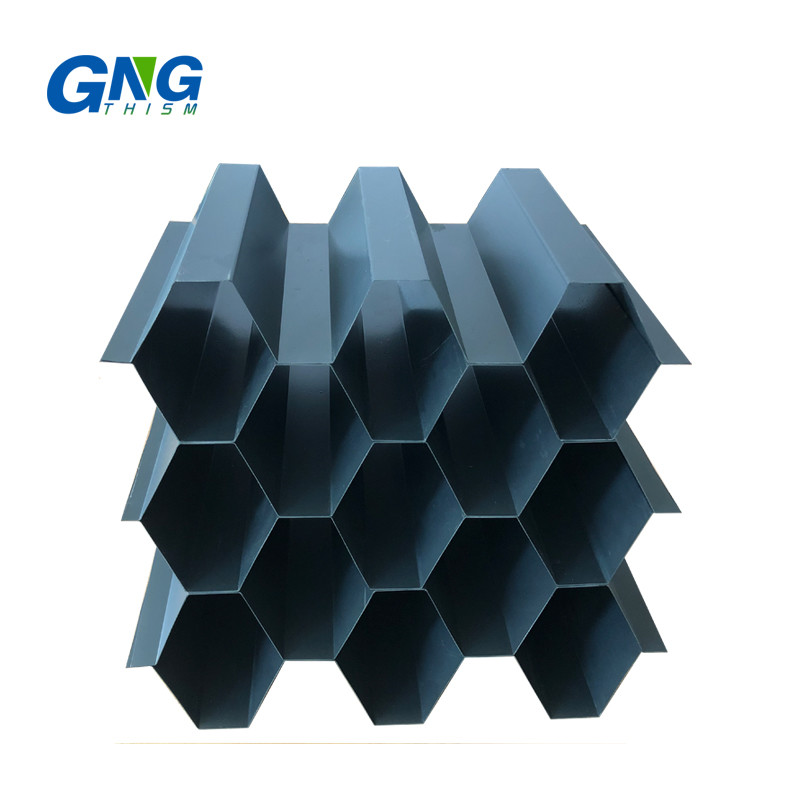

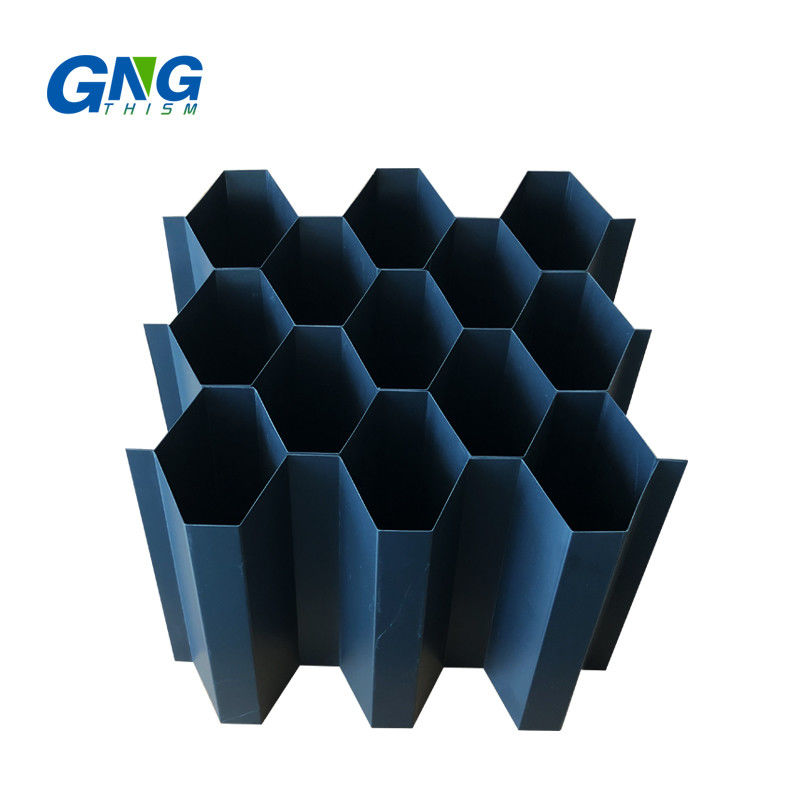

PP/PVC for Sewage Water Treatment Tube Settler Media
PP PVC lamella clarifier inclined tube settler media is very suitable in all different clarifiers and removing sand. It is regarded as universal water treatment equipment in water supply and drainage engineering. It has a wide application, high handling efficiency, small area, etc. It is suitable in removing sand in inlet, industry and drinking water precipitation, separation in oil & water.
Technical Parameter
| Material | Aperture(mm) | Thickness(mm) | Pieces | Color |
| PP | ø25 | 0.4 | 60 | White |
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø30 | 0.4 | 50 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø35 | 0.4 | 44 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø40 | 0.4 | 40 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø50 | 0.4 | 32 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| 1.2 | ||||
| ø60 | 1.2 | 28 | ||
| ø80 | 0.4 | 20 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1.2 | ||||
| PVC | Ø35 | 0.5 | 44 | Blue/Black |
| 0.8 | ||||
| ø50 | 0.4 | 32 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 | ||||
| ø80 | 0.4 | 20 | ||
| 0.6 | ||||
| 0.8 | ||||
| 1 |
Main Features
♦ Large wetted perimeter, hydraulic radius is small.
♦ The laminar good condition, particles falling from flocculent flow interference.
♦ When the tube for 1 m long, effective load by 5 tons/square meter design.And V control in 2.5- 3.0 mm/SEC effluent water,within the scope of the best.
Applications
● Water following physical-chemical treatment
● Tailings in mining and metallurgical benificaition
● Solutions from gold leaching processes
