| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNDAF |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | standard export package |
| Delivery Time: | 10~20days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Material: | Stainless Steel 304 | Application: | Wastewater Treatment Plant |
|---|---|---|---|
| Function: | Removing COD Or BOD | Warranty: | One Year |
| MOQ: | 1 Set | Transport:: | Shipping By 20'GP, 40'HQ, 40'FQ |
| High Light: | ss Dissolved Air Flotation Equipment,5m3/h Dissolved Air Flotation Equipment,Removing COD daf equipment |
||

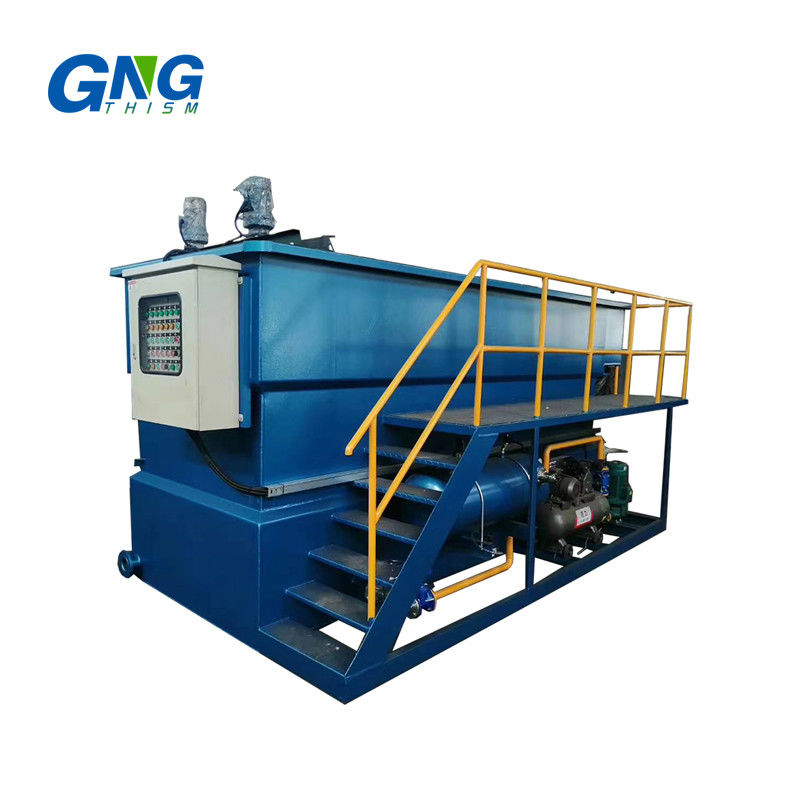

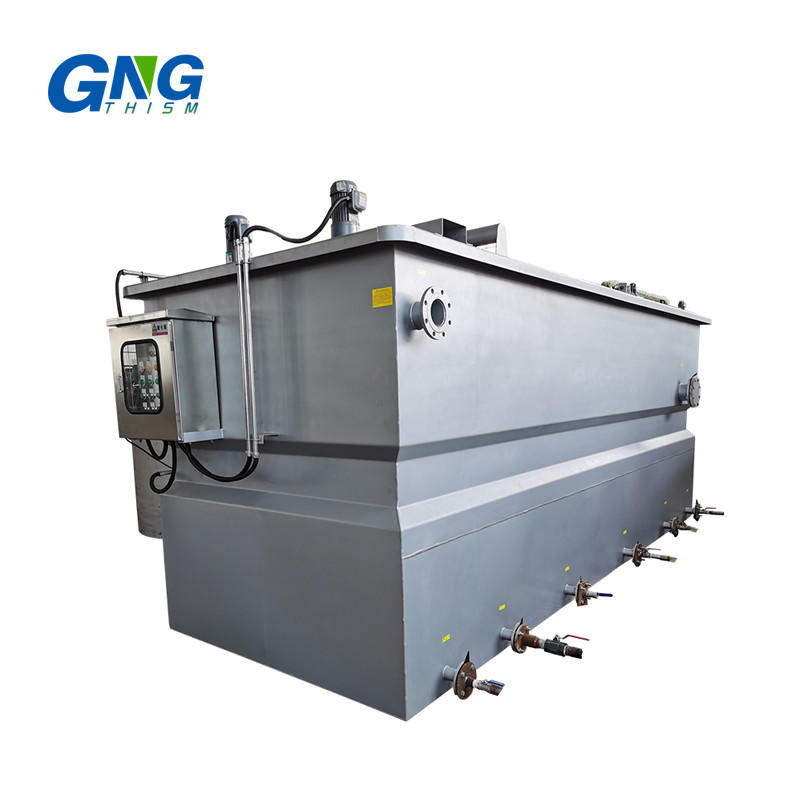

Sewage treatment plant in slaughter house stainless steel 304 dissolved air flotation equipment
The sewage treatment pump lift the waste water into the water warehouse of DAF, and mix with tiny bubbles of the container, which makes the usspended matter float to the water surface, then scraped by the scraping blade plate to the slag tap outlet; Heavy particles flow through the inclined plate settling zone, settling to the bottom of the mud bucket device, and discharged to the sludge tank through the pipeline, then do subsequent processing, and the Clarified purified water will be discharge by the equipment center tube. Besides, Our DAF unit designs utilize parallel plate packing material (e.g. lamellas) to providemore separation surface, therefore to enhance the separation efficiency of the machine.
Technical Parameters
| Model |
Capacity (m3/h) |
Dissolved Air Water Volume (m3/h) |
Main Motor Power (KW) |
Scraper Power (KW) |
Air Compressor Power (kw) |
Dimentions (mm) |
| GNDAF-5 | 4-5 | 2 | 3 | 0.55 | 0.75 | 2800*2100*2200 |
| GNDAF-10 | 8-10 | 3.5 | 3 | 0.55 | 0.75 | 3700*2100*2200 |
| GNDAF-15 | 10-15 | 5 | 4 | 0.55 | 1.5 | 4500*2200*2300 |
| GNDAF-20 | 15-20 | 8 | 5.5 | 0.55 | 1.5 | 4650*2400*2300 |
| GNDAF-30 | 20-30 | 10 | 5.5 | 0.75 | 1.5 | 5840*2700*2300 |
| GNDAF-40 | 35-40 | 15 | 7.5 | 0.75 | 1.5 | 6800*2700*2300 |
| GNDAF-50 | 45-50 | 25 | 7.5 | 0.75 | 2.2 | 7500*2900*2300 |
| GNDAF-60 | 55-60 | 25 | 7.5 | 1.1 | 2.2 | 8500*2900*2300 |
| GNDAF-70 | 65-70 | 30 | 15 | 1.1 | 2.2 | 9000*2900*2300 |
| GNDAF-80 | 75-80 | 30 | 15 | 1.1 | 2.2 | 9300*3500*2300 |
| GNDAF-100 | 95-100 | 50 | 15 | 1.1 | 3 | 11750*3750*2300 |
| GNDAF-150 | 140-150 | 50 | 15 | 1.5 | 3 | 12100*3750*2300 |
| GNDAF-200 | 190-200 | 80-100 | 22 | 1.5 | 3 | 12400*3750*2860 |
| GNDAF-250 | 240-250 | 100 | 22 | 1.5 | 3 | 14700*3750*2860 |
| GNDAF-300 | 280-300 | 100 | 22 | 1.5 | 3 | 19100*3750*3150 |
Advantage
1. dissolved air flotation machine to inhale, over the suction pump pressure within the mixing, gas-liquid dissolving efficiency is high, the micro air bubble 20 microns or less;
2. multilayer mud, ensure water effect;
3. low voltage operation, the efficiency of dissolved air is as high as 99%, outgassing rate as high as 99%.
4. Overcome the touch device operation is not stable, large bubbles churning and release the head congestion
Application
1. Dairy inc milk, cream, yoghurt and cheese processing and packaging wastewater treatment
2. Fish processing wastewater treatment
3. Paper mills wastewater treatment
4. Petrochemical wastewater treatment
5. Pharmaceutical wastewater treatment
6. Textile manufacture wastewater treatment
