| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 15 sets per month |
| Product Name: | Automatic Chemical Dosing System | Application: | Water Treatment |
|---|---|---|---|
| Material: | Stainless Steel/PP/PE | Certification: | CE/ISO9001 |
| Function: | Auto Polymer Preparation | Service Life: | >10 Years |
| Origin: | Mainland, China | OEM: | Yes |
| Type: | Automatic | ||
| High Light: | automatic chemical dosing system for swimming pools,auto chlorine dosing system |
||

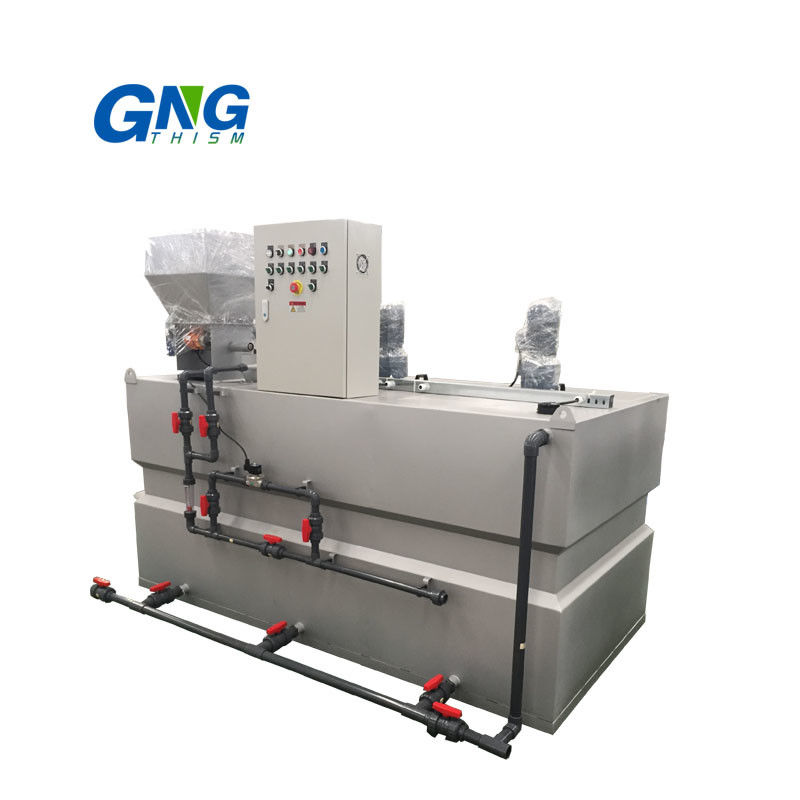

Stainless Steel Automatic Chemical Dosing Machine for Fish Product Wastewater
Automatic chemical dosing system is a auxiliary auto-equipment, which can prepare and throw polymer solution continually. It can complete the chemical combination and mixing of the polymer continually and efficiently in order to obtain homogeneous and activated solutions.
Structure And Working Principles
It applies a jet mixer, using high-speed water power to break up the polymer powder which will improve the fineness, increase the contact of water and polymer powder and reduce the time of dissolution. The equipment adopts the design of three tank overflow combination, that is, mixing, aging and storing. The proportion difference caused by the gravity and solubility will automatically separate the dissolved and undissolved solution. Homogeneous degree of the solution will be improved by stirring of the low-speed agitator afterwards.
Technical Parameter
|
Model Parameter |
GNJY-500 | GNJY-1000 | GNJY-1500 | GNJY-2000 | GNJY-3000 | GNJY-4000 | |
| Solution Preparation Amount Q (L/h) | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | |
| Dimension (B*L*H) |
900*1500 *1650 |
1000*1625*1750 |
1000*2440* 1800 |
1220*2440* 1800 |
1220*3200* 2000 |
1450*3200* 2000 |
|
| Powder Conveyor Power N (KW) | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | |
| Agitator |
Paddle Diaφ(mm) |
200 | 200 | 300 | 300 | 400 | 400 |
| Spindle Speed n (r/min) | 120 | 120 | 120 | 120 | 120 | 120 | |
| Power N(KW) | 0.2*2 | 0.2*2 | 0.37*2 | 0.37*2 | 0.37*2 | 0.37*2 | |
| Dosing Screw Pump |
Flow (m³/h) |
0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 |
| Lift (m) | 10 | 10 | 10 | 15 | 15 | 15 | |
|
Power N (KW) |
0.75 | 0.75 | 1.1 | 1.1 | 2.2. | 2.2 | |
|
Inlet Pipe Dia DN1 (mm) |
25 | 25 | 32 | 32 | 50 | 50 | |
|
Outlet Pipe Dia DN2(mm) |
25 | 25 | 25 | 25 | 40 | 40 | |
Main Features
♦ Continuously working with 3-tank integration design (mixing tank, aging tank, storage tank), easy to operate and maintain, low total cost of ownership
♦ GNJY can be extended as a more automatic 2 storage tank type in accordance with the actual needs
♦ With powdered or liquid state (optional) dual feed design to meet different needs. Proportional allocation function makes it possible to
