Keywords: | Automatic Chemical Dosing System | Application: | Water Treatment |
---|---|---|---|
Material: | SS304 Stainless Steel | Certification: | CE/ISO9001 |
Function: | Auto Polymer Preparation | Origin: | Jiangsu, China |
OEM: | Yes | Type: | Automatic |
MOQ: | 1set | ||
High Light: | automatic chemical dosing system for swimming pools,automatic chlorine dosing system |

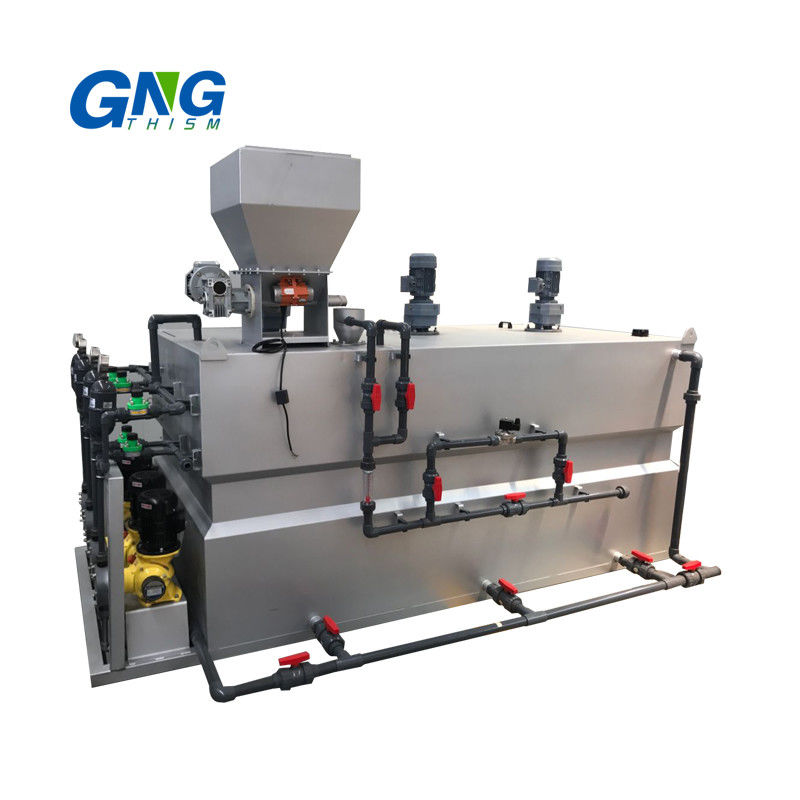

Waste Water Treatment Equipment Automatic Chemical Dosing with Pump Price
The flocculant is often called polymer or poly-electrolyte.Flocculant poly-electrolyte must be prepared from a powder polymer or a fluid concentrated polymer.Polymer is a product that must be well mixed with water to prevent clot formation. After mixing with water a certain maturation time is necessary to "unfold" the polymer chain.Flocculant needs to "mature" about 30 to 60 minutes before it can be dosed.Matured polymer is a sticky liquid.For larger installations we recommend automatic polymer dosing systems for both powder and liquid polymer applications.An automatic polymer dosing systems consists mostly of three compartments with a dosing screw and a powder storage.In the first area the powder is mixed with water. The ratio water powder can be set-up perfectly.The second area is a maturation tank with stirrer .From the third area the matured polymer is pumped into the flocculator. A level probe mounted in an acrylic holder controls the make-up station.The dosing screw at the bottom of the powder storage is provided with a heating element to prevent condensation.In a polymer make up station of liquid polymer, the entire powderbuffer and dosing screw is replaced by a polymer dosing pump.
Structure And Working Principles
It applies a jet mixer, using high-speed water power to break up the polymer powder which will improve the fineness, increase the contact of water and polymer powder and reduce the time of dissolution. The equipment adopts the design of three tank overflow combination, that is, mixing, aging and storing. The proportion difference caused by the gravity and solubility will automatically separate the dissolved and undissolved solution. Homogeneous degree of the solution will be improved by stirring of the low-speed agitator afterwards.
Technical Parameter
Model Parameter |
GNJY-500 | GNJY-1000 | GNJY-1500 | GNJY-2000 | GNJY-3000 | GNJY-4000 | |
Solution Preparation Amount Q (L/h) | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | |
Dimension (B*L*H) |
900*1500 *1650 |
1000*1625*1750 |
1000*2440* 1800 |
1220*2440* 1800 |
1220*3200* 2000 |
1450*3200* 2000 |
|
Powder Conveyor Power N (KW) | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | |
Agitator |
Paddle Diaφ(mm) |
200 | 200 | 300 | 300 | 400 | 400 |
Spindle Speed n (r/min) | 120 | 120 | 120 | 120 | 120 | 120 | |
Power N(KW) | 0.2*2 | 0.2*2 | 0.37*2 | 0.37*2 | 0.37*2 | 0.37*2 | |
Dosing Screw Pump |
Flow (m³/h) |
0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 |
Lift (m) | 10 | 10 | 10 | 15 | 15 | 15 | |
Power N (KW) |
0.75 | 0.75 | 1.1 | 1.1 | 2.2. | 2.2 | |
Inlet Pipe Dia DN1 (mm) |
25 | 25 | 32 | 32 | 50 | 50 | |
Outlet Pipe Dia DN2(mm) |
25 | 25 | 25 | 25 | 40 | 40 |
