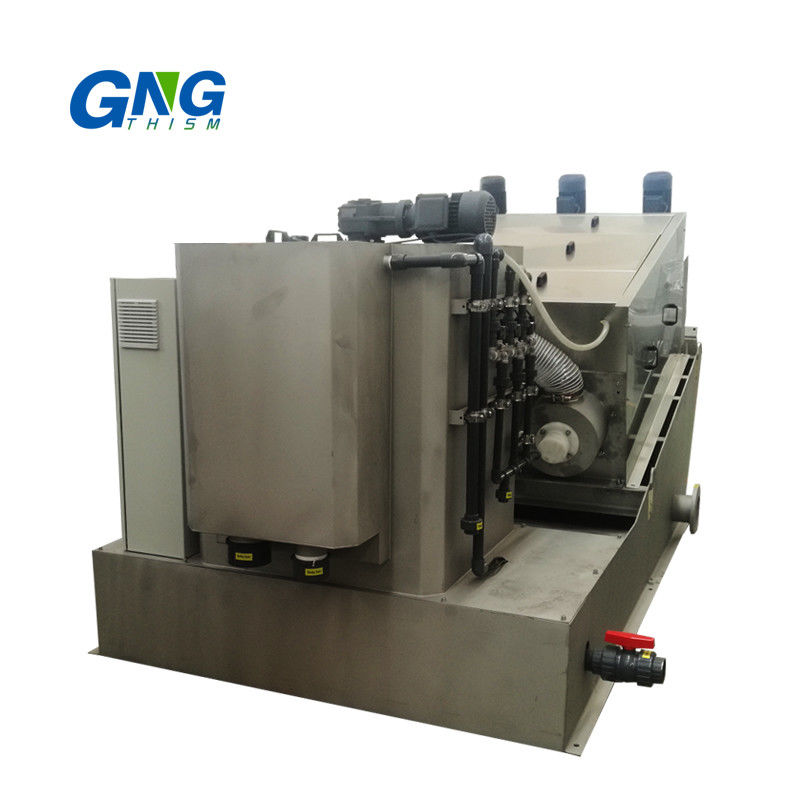

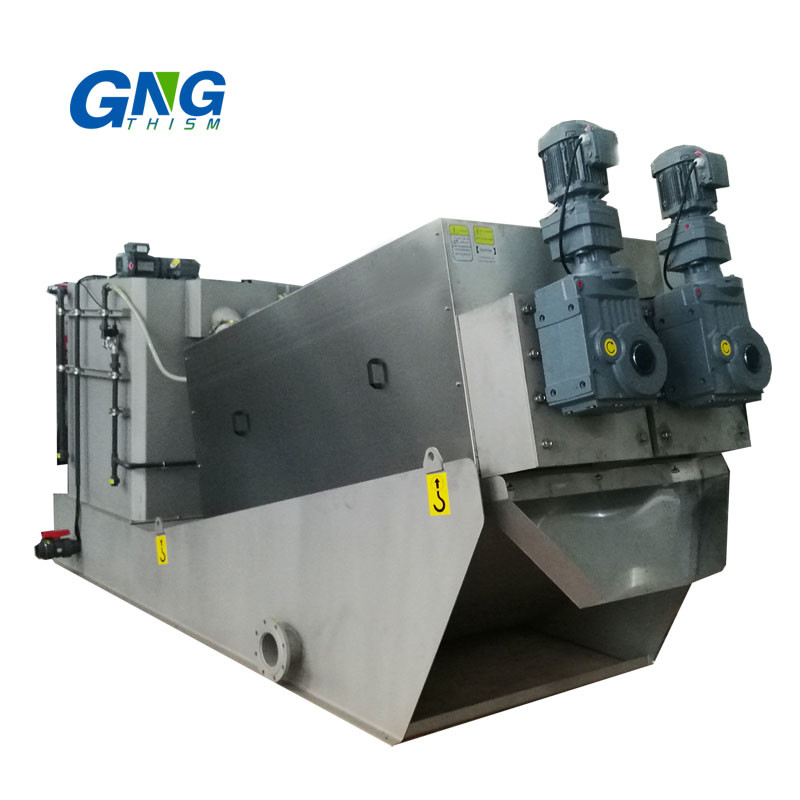

Wastewater Screw Sludge Dewatering Machine For Livestock Processing Plant Sewage

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNDS-302
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case/Container
Delivery Time: 10~20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Material: SS304/SS316L Usage: Livestock Processing Plant
Service Life: >5 Years Certification: CE/ISO9001
Power: 2.25 Type: Screw Press
High Light:

multi plate screw press

,

wastewater screw press

Sludge dewatering machine for livestock processing plant sewage

The volute sludge dewatering machine is structured with a filter element that consists of fixed rings, moving rings and a screw shaft, which thrusts the filter element and transfers and pressurizes the sludge. The gaps between the rings and the screw pitch are designed to gradually get narrower towards the direction of the sludge cake outlet, the inner pressure of the filter element increases due to the volume compression effect, which thickens and dewaters the sludge.

Wastewater Screw Sludge Dewatering Machine For Livestock Processing Plant Sewage 0

Features

  • No filter cloth, no clogging.
  • Self-cleaning mechanism.
  • Wide range of line-up and small footprint.
  • Thickening and dewatering all in one filter drum.
  • Compact design with flocculation and dewatering.
  • Applicable to sludge in various kinds of application.
  • Automatic operation and easy maintenance, lower operation cost.
  • Environment friendly(power saving, water saving, no vibration and noise).

Flow Chart

Wastewater Screw Sludge Dewatering Machine For Livestock Processing Plant Sewage 1



Component Display

Wastewater Screw Sludge Dewatering Machine For Livestock Processing Plant Sewage 2

Electrical Control

Wastewater Screw Sludge Dewatering Machine For Livestock Processing Plant Sewage 3

Technical Parameters

Type Raw wastewater/waste actived sludge chemically precipitated Dissloved-air sludge Mixed raw
sludge
Sludge
concentration(TS)
0.2% 1.0% 2.0% 5.0% 3.0%
GNDS-131 4kg-DS/h
(2.0m³/h)
6kg-DS/h
(0.6m³/h)
10kg-DS/h
(0.5m³/h)
20kg-DS/h
(0.4m³/h)
26kg-DS/h
(0.87m³/h)
GNDS-132 8kg-DS/h
(4.0m³/h)
12kg-DS/h
(1.2m³/h)
20kg-DS/h
(1.0m³/h)
40kg-DS/h
(0.8m³/h)
52kg-DS/h
(1.73m³/h)
GNDS-133 12kg-DS/h
(6.0m³/h)
18kg-DS/h
(1.8m³/h)
30kg-DS/h
(1.5m³/h)
60kg-DS/h
(1.2m³/h)
72kg-DS/h
(2.61m³/h)
GNDS-201 8kg-DS/h
(4.0m³/h)
12kg-DS/h
(1.2m³/h)
20kg-DS/h
(1.0m³/h)
40kg-DS/h
(0.8m³/h)
52kg-DS/h
(1.73m³/h)
GNDS-202 16kg-DS/h
(8.0m³/h)
24kg-DS/h
(2.4m³/h)
40kg-DS/h
(2.0m³/h)
80kg-DS/h
(1.6m³/h)
104kg-DS/h
(3.47m³/h)
GNDS-203 24kg-DS/h
(12.0m³/h)
36kg-DS/h
(3.6m³/h)
60kg-DS/h
(3.0m³/h)
120kg-DS/h
(2.4m³/h)
156kg-DS/h
(5.20m³/h)
GNDS-301 20kg-DS/h
(10.0m³/h)
30kg-DS/h
(3.0m³/h)
50kg-DS/h
(2.5m³/h)
30kg-DS/h
(2.0m³/h)
30kg-DS/h
(4.33m³/h)
GNDS-302 40kg-DS/h
(20.0m³/h)
60kg-DS/h
(6.0m³/h)
100kg-DS/h
(5.0m³/h)
200kg-DS/h
(4.0m³/h)
260kg-DS/h
(8.67m³/h)
GNDS-303 60kg-DS/h
(30.0m³/h)
90kg-DS/h
(9.0m³/h)
150kg-DS/h
(7.5m³/h)
300kg-DS/h
(6.0m³/h)
390kg-DS/h
(13.0m³/h)
GNDS-304 80kg-DS/h
(40.0m³/h)
120kg-DS/h
(12.0m³/h)
200kg-DS/h
(10.0m³/h)
400kg-DS/h
(8.0m³/h)
520kg-DS/h
(17.3m³/h)
GNDS-351 40kg-DS/h
(20.0m³/h)
60kg-DS/h
(6.0m³/h)
100kg-DS/h
(5.0m³/h)
200kg-DS/h
(4.0m³/h)
260kg-DS/h
(8.67m³/h)
GNDS-352 80kg-DS/h
(40.0m³/h)
120kg-DS/h
(12.0m³/h)
200kg-DS/h
(10.0m³/h)
400kg-DS/h
(8.0m³/h)
520kg-DS/h
(17.3m³/h)
GNDS-353 120kg-DS/h
(60.0m³/h)
180kg-DS/h
(18.0m³/h)
300kg-DS/h
(15.0m³/h)
600kg-DS/h
(12.0m³/h)
780kg-DS/h
(26.0m³/h)
GNDS-354 160kg-DS/h
(80.0m³/h)
240kg-DS/h
(24.0m³/h)
400kg-DS/h
(20.0m³/h)
800kg-DS/h
(16.02m³/h)
1040kg-DS/h
(34.68m³/h)
GNDS-401 70kg-DS/h
(35m³/h)
100kg-DS/h
(10m³/h)
170kg-DS/h
(8.5m³/h)
340kg-DS/h
(6.5m³/h)
442kg-DS/h
(16.0m³/h)
GNDS-402 135kg-DS/h
(67.5m³/h)
200kg-DS/h
(20.0m³/h)
340kg-DS/h
(17.0m³/h)
680kg-DS/h
(13.6m³/h)
884kg-DS/h
(29.5m³/h)
GNDS-403 200kg-DS/h
(100m³/h)
300kg-DS/h
(30.0m³/h)
510kg-DS/h
(25.5m³/h)
1020kg-DS/h
(20.4m³/h)
1326kg-DS/h
(44.2m³/h)
GNDS-404 266kg-DS/h
(133m³/h)
400kg-DS/h
(40.0m³/h)
680kg-DS/h
(34.0m³/h)
1360kg-DS/h
(27.2m³/h)
1768kg-DS/h
(58.9m³/h)

Application

* Municipal water and wastewater treatment plants,Laundry wastewater.

* Agricultural/fishery community wastewater treatment plants, Industrial waste treatment plants.
* Food/beverage production plants,Dairy farming/Meat processing plants.
* Chemicals manufacturing plants,Machinery manufacturing/Metal processing plants.
* Other plants requiring dewatering machine (paper manufacturing, building material manufacturing, oilfield associated water accompanied with crude oil mining, etc.).
