| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNBQ |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2~10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pieces per month |
| Type: | Disc | Membrane Material: | EPDM/Silicone/PTFE |
|---|---|---|---|
| Support Dish Material: | Strengthened PP+glass Fiber | Connector: | 3/4'' NPT Male Thread |
| Bubble Size: | 1-2mm | Application: | Aquaculture/waste Water Treatment |
| High Light: | fine bubble membrane diffusers,micro bubble air diffuser |
||

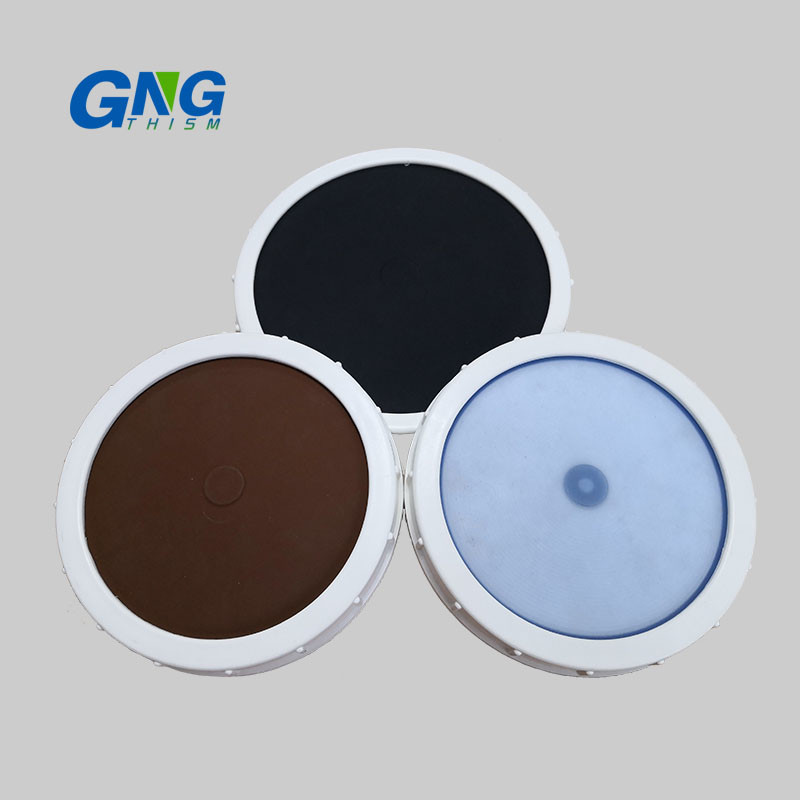

High oxygen fine bubble disc diffuser
Fine bubble diffuser, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Fine bubble disc diffuser series combines effective design, low installation costs, reliability and high performance in intermittent and continuous aeration processes. Special designed the slits cut opining, patterns and spacing between the slits for high oxygen transfer and longtime operation.
Disc Diffuser Designs
Standard Membrane Materials
We provide disc diffusers that are specially designed for a plethora of applications.
The special low plasticizer EPDM is aimed at beverage production, and food and animal processing. The silicone membrane diffuser is specifically created for refining processes, petrochemicals, and the paper industry.
Anti-fouling Surface for Membrane Materials
Relatively based on the latest nano technology, the surface of the membrane materials are meant to prevent the accumulation of both biological and solid encrustations.
Reinforced Polypropylene Support Dish and Ring
We provide disc diffusers with rings and support dish that are strengthened and well-protected by glass fibers for optimum chemical resistance. With this sturdy support dish, it can endure varying temperatures and resist harmful UV rays.
All disc diffusers come with built-in non-return valves to ensure safety and security of the water treatment process. This valve controls the build-up of sludge and prevents its infiltration into the aeration system, especially when the air flow is sporadic.
Technical Parameters
| Model | GNBQ-150/170 | GNBQ-215 | GNBQ-260 | GNBQ-350 | GNBQ-650 |
| Bubble Type | Coarse Bubble | Fine Bubble | Fine Bubble | Fine Bubble | Fine Bubble |
| Size | 5/6 inch | 8 inch | 9 inch | 12 inch | 675*215mm |
| Membrane Material | EPDM/SILICONE/PTFE | ||||
| Base Material | ABS | Strengthened PP + GF (Glass Fiber) | ABS | ||
| Connector | 3/4''NPT male thread | ||||
| Membrane Thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Bubble Size | 4-5mm | 1-2mm | 1-2mm | 1-2mm | 1-2mm |
| Design Flow | 1-5m3/h | 1.5-2.5m3/h | 3-4m3/h | 5-6m3/h | 6-14m3/h |
| Flow Range | 6-9m3/h | 1-6m3/h | 1-8m3/h | 1-12m3/h | 1-16m3/h |
| SOTE | ≥10% | ≥38% | ≥38% | ≥38% | ≥40% |
| 6m submerged | 6m submerged | 6m submerged | 6m submerged | 6m submerged | |
| SOTR | ≥0.21kg O2/h | ≥0.31kg O2/h | ≥0.45kg O2/h | ≥0.75kg O2/h | ≥0.99kg O2/h |
| SAE | ≥7.5kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥9.2kg O2/kw.h |
| Headloss | 2000-3000Pa | 1500-4300Pa | 1500-4300Pa | 1500-4300Pa | 2000-3500Pa |
| Service Area | 0.5-0.8m2/pcs | 0.2-0.64m2/pcs | 0.25-1.0m2/pcs | 0.4-1.5m2/pcs | 0.5-2.5m2/pcs |
| Service Life | ＞5 years | ||||
Component Display
Features
♦ Quick and Easy Installation
We offer disc diffusers that include pre-fabricated components for the easy and fast installation process. In case replacement or maintenance is necessary, the materials can also be removed easily.
♦ Flexible Design
The disc diffuser has an adjustable pipe support system for easy leveling during the installation process. It also fits onto any type of material, which includes ABS, PVC, etc.
♦ Full Pipework System
For minimal issues on the installation and removal process, the disc diffuser boasts a fully operational pipework system for enhancing growth and expansion in the long run.
