| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNPE-05 |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Double Woven Bag |
| Delivery Time: | 3~15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 cubic meters per month |
| Material: | 100% Virgin HDPE | Application: | Wastewater |
|---|---|---|---|
| Color: | White | Weight: | 95kgs |
| Hole Numbers: | 19 | Lifespan: | >15 Years |
| High Light: | mbbr bio media,moving bed bio filter media |
||

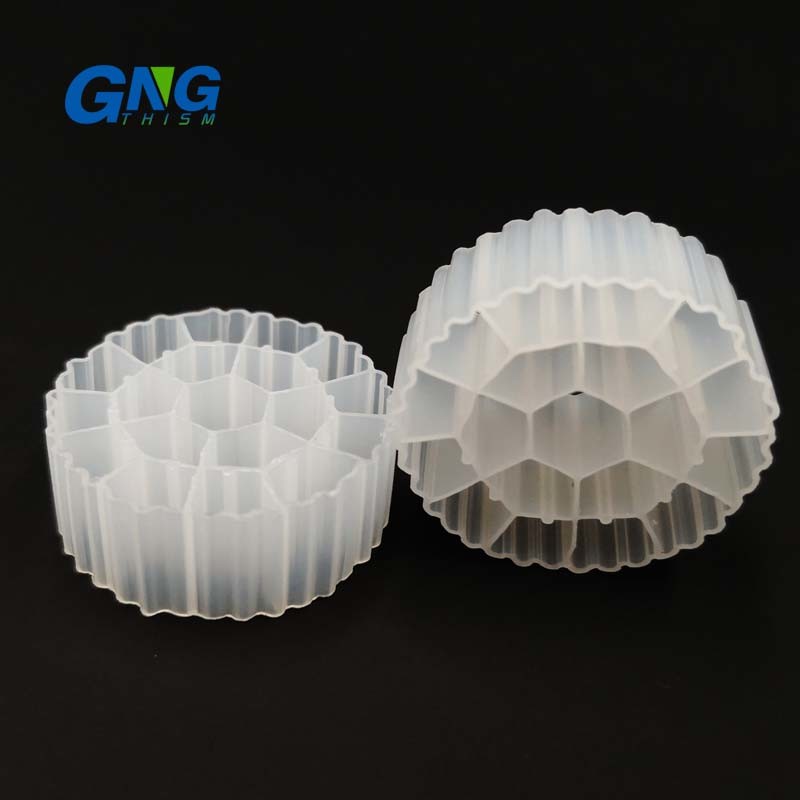

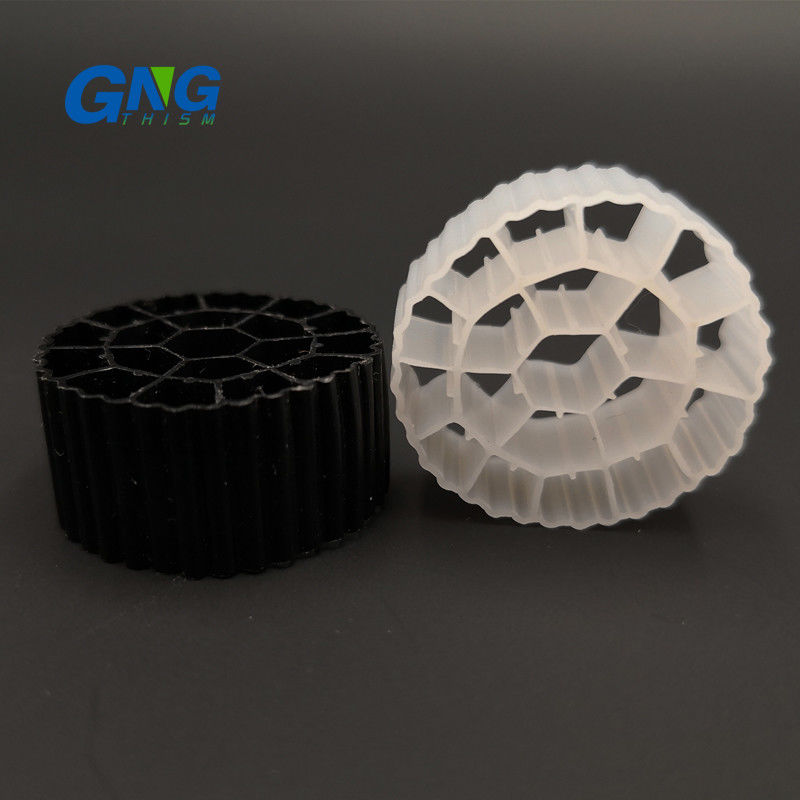

Plastic K3 Size Micro Bio filter media for wastewater filtration
k3 mbbr media is used in wastewater treatment and moving bed biological reactor.
We offer advanced wastewater treatment solutions for the industrial and municipal markets. These solutions significantly increase the capacity and efficiency of existing wastewater treatment plants, while minimizing the size of new plant deployments.
Technical Parameter
| Model | GNPE-01 | GNPE-02 | GNPE-03 | GNPE-04 | GNPE-05 | GNPE-06 | GNPE-07 | GNPE-08 | GNPE-09 | |
| Dimention | mm | φ12*9 | φ11*7 | φ10*7 | φ16*10 | φ25*10 | φ25*10 | φ35*18 | φ6*10 | φ15*15 |
| Hole Numbers | nos. | 4 | 4 | 5 | 6 | 19 | 19 | 19 | 8 | 40 |
| Protected surface area | m2/m3 | >800 | >900 | >1000 | >800 | >500 | >500 | >350 | >3500 | >900 |
| Density | g/cm3 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 1.02-1.05 | 0.96-0.98 | 1.02-1.05 | 0.96-0.98 |
| Packing numbers | pcs/m3 | >630000 | >830000 | >850000 | >260000 | >97000 | >97000 | >33000 | >2000000 | >230000 |
| Porosity | % | >85 | >85 | >85 | >85 | >90 | >90 | >92 | >80 | >85 |
| Dosing ratio | % | 15-67 | 15-68 | 15-70 | 15-67 | 15-65 | 15-65 | 15-50 | 15-70 | 15-65 |
| Membrane-forming time | days | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 | 3--15 |
| Nitrification efficiency | gNH4-N/m3.d | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 300-800 | 500-1400 | 500-1400 |
| BOD5 oxidation efficiency | gBOD5/m3.d | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 1000-5000 | 2500-15000 | 2500-15000 |
| COD oxidation efficiency | gCOD/m3.d | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 1000-10000 | 2500-20000 | 2500-20000 |
| Applicable temperature | ℃ | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
| Lifespan | year | >15 | >15 | >15 | >15 | >15 | >15 | >15 | >15 | >15 |
Main Features
▲ Special design of surface, stronger bio-film growth capacity.
▲ Large specific surface area, high voltage, the more periphyton biomass.
▲ Unique design of structure and shape according to hydromechanics, strong three-dimensional flow dynamics in the water.
