Epdm Diffuser Membrane Fine Bubble Tube Diffuser / Tube Air Diffuser for Water Treatment Plant System

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNBQ
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2~10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Model: φ93 Membrane Material: EPDM
Support Dish Material: UPVC/ABS Connector: 3/4'' NPT Male Thread
Length: 500mm Package: Carton
High Light:

air diffuser tubing

,

epdm diffuser membrane

EPDM Fine Bubble Diffuser Tube for Water Treatment Plant System

The wastewater treatment of activated sludge and contact aeration process and aquarium will all need high Oxygen transfer rate or Oxygen transfer efficiency, and low-pressure loss by the membrane. The reinforced EPDM can continuously create a fine bubble from slots on the EPDM membrane of the disc type or tube-type diffuser.

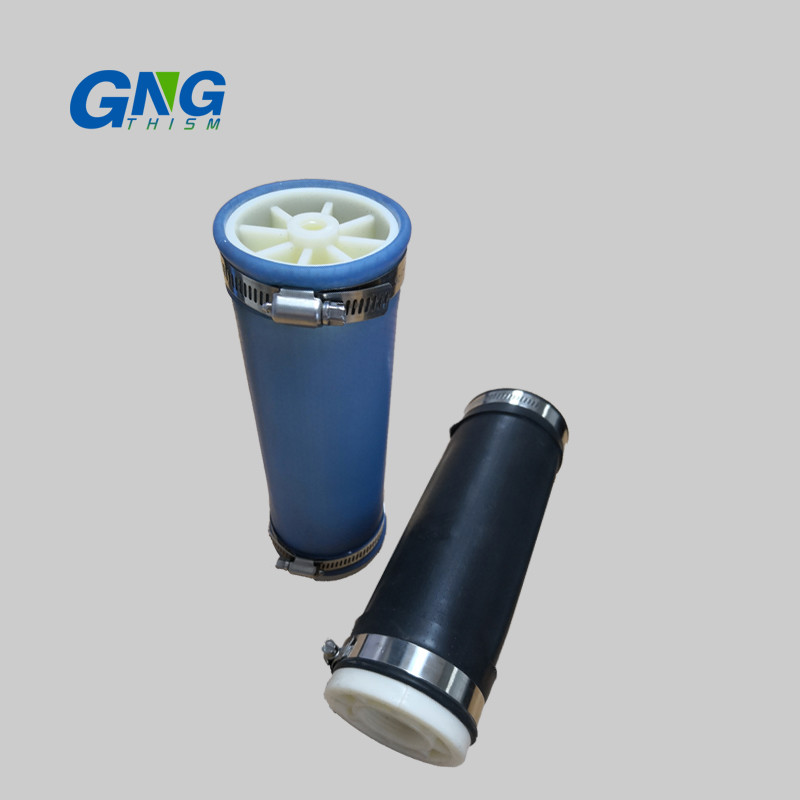

Epdm Diffuser Membrane  Fine Bubble Tube Diffuser / Tube Air Diffuser for Water Treatment Plant System 0

MOC: EPDM

Manufactured by compression molding with a standard cure,low plasticizer content, and 1mm or 2mm
perforations.Compression molding with modern equipment utilizing individual thermocouples and
vacuum technology ensures a repeatable very high quality product.

Technical Parameters

Type Membrane Tube Diffuser
Model φ66 φ93 φ113
Length 500/750/1000mm 500/750/1000mm 500/750/1000mm
MOC EPDM/Silicon membrane ABS tube EPDM/Silicon membrane ABS/PP carrier plate EPDM/Silicon membrane ABS/PP carrier plate
Connector 1" NPT male thread 3/4" NPT male thread 1" NPT male thread 3/4" NPT male thread 1" NPT male thread 3/4" NPT male thread
Bubble Size 1-2mm 1-2mm 1-2mm
Design Flow 1.7-6.8m³/h 3.4-13.6m³/h 3.4-17.0m³/h
Flow Range 2-14m³/h 5-20m³/h 6-28m³/h
SOTE ≥40% (6m submerged) ≥40% (6m submerged) ≥40% (6m submerged)
SOTR ≥0.90kg O2/h ≥1.40kg O2/h ≥1.52kg O2/h
SAE ≥8.6kg O2/kw.h ≥8.6kg O2/kw.h ≥8.6kg O2/kw.h
Headloss 2200-4800Pa 2200-4800Pa 2200-4800Pa
Service Area 0.75-2.5m² 1.0-3.0m² 1.5-2.5m²
Service Life > 5 year > 5 year > 5 year

Main Features

  1. High resistance to clogging.
  2. High resistance to corrosion.
  3. Wide air flow range.
  4. Low pressure loss.
  5. Low energy cost.
  6. Easy installation.
  7. Uniform fine bubble.
  8. Back flow prevention.
  9. Self cleaning operation.
  10. Intermittent operation capability.
  11. Slide-off prevention designed.
  12. Cost saving.
  13. Membrane with EPDM or Silicone Rubber compound.
  14. Air inlet modled injection of PVC or ABS.
  15. Supporting frame with PVC or ABS pipe.
  16. Clamp with stainless steel.
  17. Non tearing & non clogging I-shapped slits.
