| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNOZ |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | standard export package |
| Delivery Time: | 3~15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets per month |
| Material: | Stainless Steel Or Spraying Coating Steel | Application: | Fishing Farming,Wastewater Treatment |
|---|---|---|---|
| MOQ: | 1 Set | Package: | Standard Export Package |
| Power Source: | Electrical | OEM: | Yes |
| High Light: | ozone generator air purifier,ozone water generator |
||

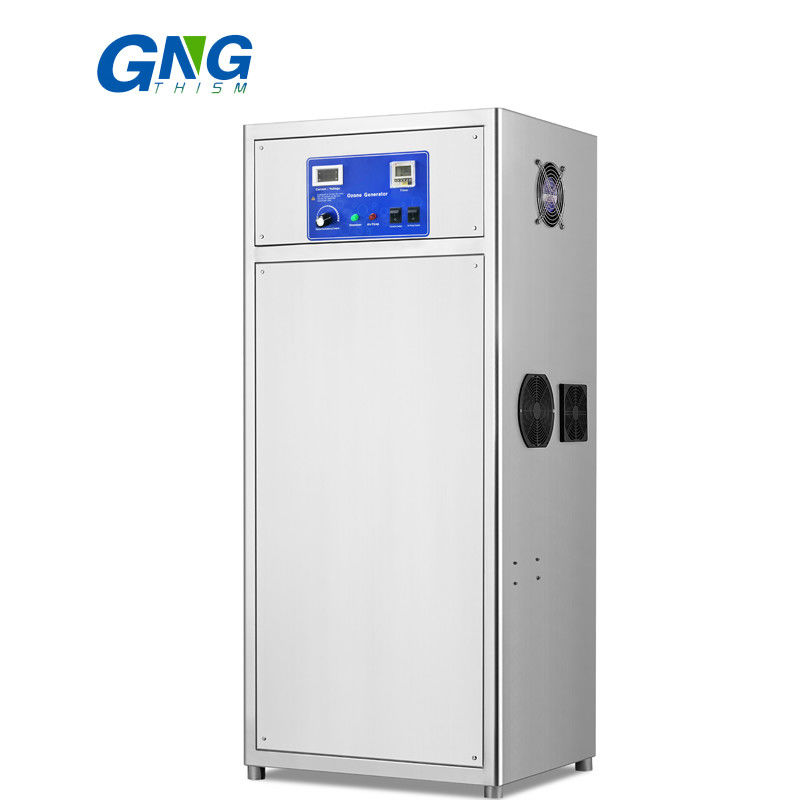

Ozone generator with inbuilt air dryer for spa pools
Ozone generators make ozone by breaking apart oxygen molecules, a process that can be accomplished in the following ways:
silent corona discharge: All electrical discharges, such as lightning, produce ozone by splitting normal oxygen and creating single oxygen atoms, which then attach themselves to O2 to form ozone (O3). Silent corona discharge-ozone generators operate by this principle.
ultraviolet radiation: This process is similar to the formation of ozone in the upper atmosphere, where the sun’s ultraviolet radiation causes O2 to split into individual oxygen atoms. This method is generally regarded as less efficient than corona discharge.
Working Principles
Technical Parameter
| Model | Ozone output (G/Hr) | Power | Net weight | Dimension ( CM ) | Cooled way | Voltage | Gas supply |
| GNOZ-3G | 3 | 60 | 3.2 | 33X16X21 | | | |
| GNOZ-5G | 5 | 80 | 3.8 | 33X16X21 | |||
| GNOZ-10G | 10 | 140 | 9.3 | 32X25X52.5 | |||
| GNOZ-15G | 15 | 200 | 16 | 40*30*62.5 | |||
| GNOZ-20G | 20 | 270 | 17.5 | 40*30*73 | |||
| GNOZ -30G | 30 | 300 | 26 | | |||
| GNOZ -40G | 40 | 480 | 31 | 50*40*85 | |||
| GNOZ-50G | 50 | 530 | 39 | 50*40*91 | |||
| GNOZ -60G | 60 | 680 | 41 | ||||
| GNOZ-80G | 80 | 1020 | 60 | 50*45*110 | |||
| GNOZ -100G | 100 | 1140 | 62 | ||||
| GNOZ -150G | 150 | 2000 | 78 | 60*50*139 | |||
| GNOZ -200G | 200 | 2300 | 85 |
| Item | Unit | GNOOZ- 10G | GNOOZ- 20G | GNOOZ- 30G | GNOOZ- 40G | GNOOZ- 50G | GNOOZ-80G | GNOOZ- 100G |
O3 output | G/Hr | 10 | 20 | 30 | 40 | 50 | 80 | 100 |
| Power | W | 660 | 850 | 950 | 1100 | 1200 | 1750 | 2650 |
| Voltage | V/Hz | AC 220-240/50-60 | ||||||
| Concentration | Mg/L | 60-120 | ||||||
| O2 Flow rate | LPM | 2-3 | 4-5 | 5-6 | 7-8 | 9-10 | 14-15 | 18-20 |
| Dimension | cm | 50*40*73 | 55*40*88 | 55*40*103 | 50*40*110 | 50*45*123 | ||
| Unit weight | Kg | 47 | 51 | 57 | 60 | 72 | 100 | 110 |
| External case | / | Stainless steel 304 | ||||||
| Working conditions | / | Up to 85% humidity, -10 ~37 degrees | ||||||
Features
1. Inner air compressor and condenser, water filter.
2. Inner PSA oxygen generator unit.
3. Over heat, over temperature, over voltage protection.
