Filtering Rotary Drum Fine Screening In Wastewater Treatment ISO9001

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNZG
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: standard export package
Delivery Time: 10~20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Material: SS304/SS316L Type: Rotary Drum Screen
Application: Sewage Treatment Certification: CE/ISO9001
MOQ: 1 Set Service Life: >5 Years
High Light:

rotating drum screen

,

drum bar screen

Water Treatment Equipment Rotary Drum Filter Screen for sewage Treatment
The rotary screen filter contains all function of the traditional mechanical filter screen, conveyor and screw press, is widely used in the pretreatment of urban sewage. Wastewater enters into the drum through rotary drum inlet and flows through the side screen gap of rotary drum. Suspended solids in wastewater will be withheld in rotary drum. Rotary screen filter rotates at the speed of 4-6r/min. Residue in screen gap will be cleaned by the nylon brush and wash nozzle on the upward side of drum. All suspended solids and Residues will be pressed and dewatered through screw conveyor, and conveyed to hopper on the top, and conveyed away.

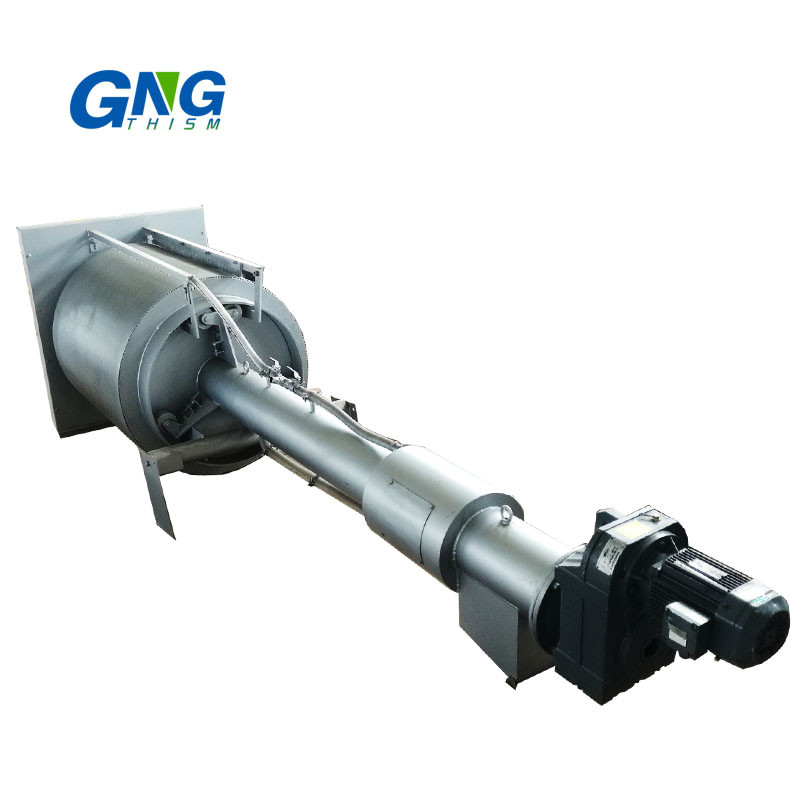

Overall Structure
Filtering Rotary Drum Fine Screening  In Wastewater Treatment ISO9001 0
Technical Parameters

Model

GNZG-

600

GNZG-

800

GNZG-

1000

GNZG-1200GNZG-1400GNZG-1600GNZG-1800

GNZG-

2000

Drum Diameter (mm)600800100012001400160018002000
Drum Length I (mm)5006207008001000115012501350
Transport Tube d (mm)219273273300300360360500
Channel Width b (mm)650850105012501450165018502070
Max Water Depth H4 (mm)3504505406207508609601050
Installation Angle35˚
Channel Depth H1 (mm)600-3000
Discharge Height H2 (mm)Customized
H3 (mm)Confirmed by the type off reducer
Installation Length A (mm)A=H×1.43-0.48D
Total Length L (mm)L=H×1.743-0.75D
Flow rate (m/s)1.0

Volume

(m3/h)

Mesh

(mm)

0.580135235315450585745920
  112521537050572095012051495
  21903305557651095144018302260
  32304006809351340176022352755
  423543072010101440205027003340
  525046579511051575220029353600

Project Case
Filtering Rotary Drum Fine Screening  In Wastewater Treatment ISO9001 1
Packaging & Shipping
Filtering Rotary Drum Fine Screening  In Wastewater Treatment ISO9001 2
