Place of Origin: | China |
---|---|
Brand Name: | GNGTHISM |
Certification: | CE/ISO9001 |
Model Number: | GNZG |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | standard export package |
Delivery Time: | 10~20days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20 sets per month |
Material: | SS304/SS316 | Model: | GNZG-1200 |
---|---|---|---|
Function: | Filtering Suspended Matter | Screen Sizes: | 1-7mm |
Motor: | Nord/Customized | Discharge Height: | Customized |
High Light: | rotating drum screen,drum screen filter |

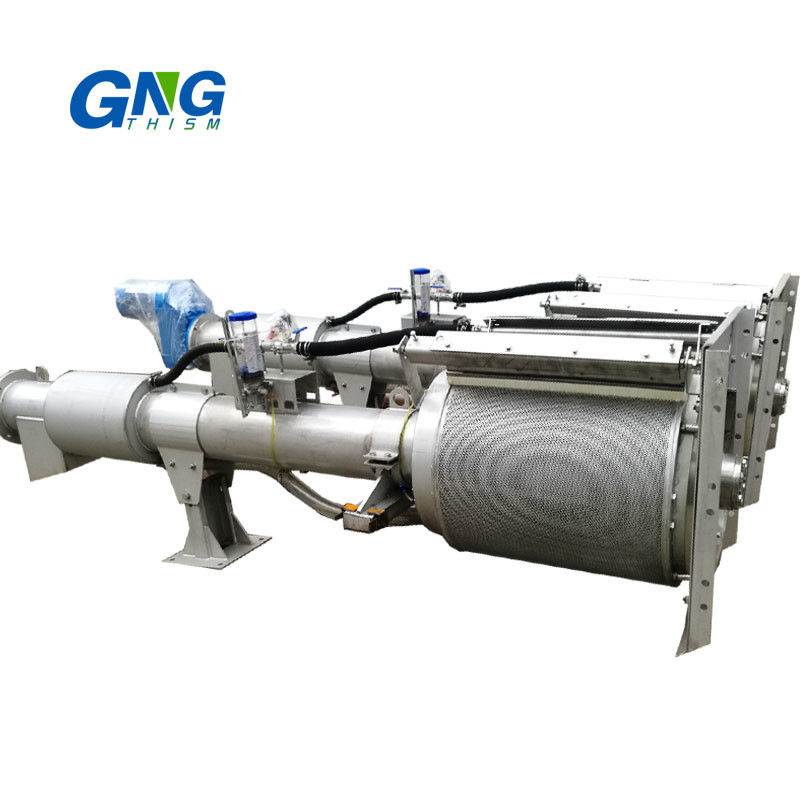

Solid suspended objects wastewater treatment rotary drum filter fine screen
Rotary drum filter screen contains all functions of traditional mechanical filter screen, conveyor and screw press. Wastewater enters into drum through rotary drum inlet and flows through side screen gap of rotary drum. Suspended solids in wastewater will be withheld in rotary drum. Rotary drum filter screen rotates at the speed of 4-6r/min. Residue in the screen gap will be cleaned by the nylon brush and wash nozzle on upward side of drum. All suspended solids and Residues will be pressed and dewatered through screw conveyor, and conveyed to the hopper on the top, and conveyed away. Rotary drum filter screen is widely used in the pretreatment of urban sewage.
Technical Parameters
Model |
GNZG- 600 |
GNZG- 800 |
GNZG- 1000 |
GNZG-1200 | GNZG-1400 | GNZG-1600 | GNZG-1800 |
GNZG- 2000 |
||
Drum Diameter (mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | ||
Drum Length I (mm) | 500 | 620 | 700 | 800 | 1000 | 1150 | 1250 | 1350 | ||
Transport Tube d (mm) | 219 | 273 | 273 | 300 | 300 | 360 | 360 | 500 | ||
Channel Width b (mm) | 650 | 850 | 1050 | 1250 | 1450 | 1650 | 1850 | 2070 | ||
Max Water Depth H4 (mm) | 350 | 450 | 540 | 620 | 750 | 860 | 960 | 1050 | ||
Installation Angle | 35˚ | |||||||||
Channel Depth H1 (mm) | 600-3000 | |||||||||
Discharge Height H2 (mm) | Customized | |||||||||
H3 (mm) | Confirmed by the type of reducer | |||||||||
Installation Length A (mm) | A=H×1.43-0.48D | |||||||||
Total Length L (mm) | L=H×1.743-0.75D | |||||||||
Flow rate (m/s) | 1.0 | |||||||||
Volume (m3/h) |
Mesh (mm) |
0.5 | 80 | 135 | 235 | 315 | 450 | 585 | 745 | 920 |
1 | 125 | 215 | 370 | 505 | 720 | 950 | 1205 | 1495 | ||
2 | 190 | 330 | 555 | 765 | 1095 | 1440 | 1830 | 2260 | ||
3 | 230 | 400 | 680 | 935 | 1340 | 1760 | 2235 | 2755 | ||
4 | 235 | 430 | 720 | 1010 | 1440 | 2050 | 2700 | 3340 | ||
5 | 250 | 465 | 795 | 1105 | 1575 | 2200 | 2935 | 3600 |
Specifications
1. Little hydraulic loss
2. Whole stainless steel
3. Self cleaning, easy maintenance
4. High capacity
Features
1. Little hydraulic loss, high efficiency, and large processing capacity.
2. Whole stainless steel structure, convenient in maintenance and long service life.
3. The working device of the equipment can clean the equipment by itself.
4. A system with more functions, and structure compact.
