| Place of Origin: | China |
|---|---|
| Brand Name: | GNGTHISM |
| Certification: | CE/ISO9001 |
| Model Number: | GNZG |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | standard export package |
| Delivery Time: | 10~20days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Material: | Stainless Steel | Type: | Rotary Drum Screen |
|---|---|---|---|
| Application: | Solid-liquid Separator | Electrical Component: | Schneider/Omron/Customized |
| Motor: | Sew/Nord/Customized | HS Code: | 8421192000 |
| High Light: | drum bar screen,drum screen filter |
||

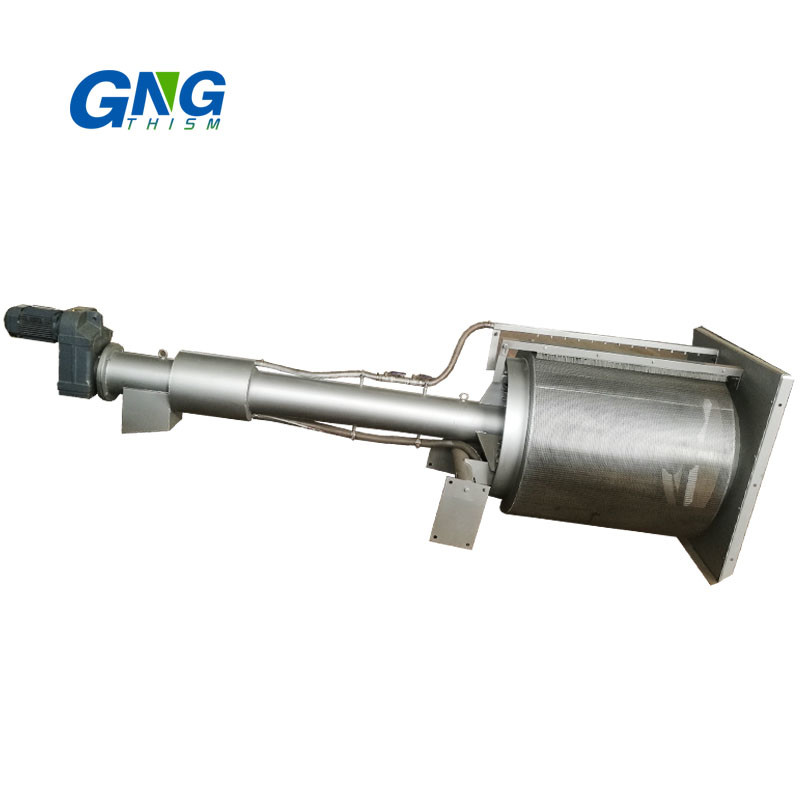

Partial appropriate air cylinder wastewater treatment rotary screen drum
Rotary drum fine screen is widely applied for wastewater treatment projects such as urban wastewater, industrial wastewater, food process industry, paper industry and so on. This equipment can clean scum, short fiber, and suspended matter from the water intake, and then discharge them after pressing. It can be used for wastewater treatment engineerings such as high precision process, small screen gap and low depth of the channel.
Technical Parameters
| Model |
GNZG- 600 |
GNZG- 800 |
GNZG- 1000 |
GNZG-1200 | GNZG-1400 | GNZG-1600 | GNZG-1800 |
GNZG- 2000 |
||
| Drum Diameter (mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | ||
| Drum Length I (mm) | 500 | 620 | 700 | 800 | 1000 | 1150 | 1250 | 1350 | ||
| Transport Tube d (mm) | 219 | 273 | 273 | 300 | 300 | 360 | 360 | 500 | ||
| Channel Width b (mm) | 650 | 850 | 1050 | 1250 | 1450 | 1650 | 1850 | 2070 | ||
| Max Water Depth H4 (mm) | 350 | 450 | 540 | 620 | 750 | 860 | 960 | 1050 | ||
| Installation Angle | 35˚ | |||||||||
| Channel Depth H1 (mm) | 600-3000 | |||||||||
| Discharge Height H2 (mm) | Customized | |||||||||
| H3 (mm) | Confirmed by the type of reducer | |||||||||
| Installation Length A (mm) | A=H×1.43-0.48D | |||||||||
| Total Length L (mm) | L=H×1.743-0.75D | |||||||||
| Flow rate (m/s) | 1.0 | |||||||||
|
Volume (m3/h) |
Mesh (mm) |
0.5 | 80 | 135 | 235 | 315 | 450 | 585 | 745 | 920 |
| 1 | 125 | 215 | 370 | 505 | 720 | 950 | 1205 | 1495 | ||
| 2 | 190 | 330 | 555 | 765 | 1095 | 1440 | 1830 | 2260 | ||
| 3 | 230 | 400 | 680 | 935 | 1340 | 1760 | 2235 | 2755 | ||
| 4 | 235 | 430 | 720 | 1010 | 1440 | 2050 | 2700 | 3340 | ||
| 5 | 250 | 465 | 795 | 1105 | 1575 | 2200 | 2935 | 3600 | ||
Application Field
* Municipal Sewage treatment
* Papermaking wastewater
* Water Treatment Plant
* Leather industry
* Beverage industry
* Slaughterhouse
* Pharmaceutical wastewater
* Food industry
* Petrochemical industry
* Textile industry
