Krofta Dissolved Air Flotation Equipment / 97% Removal Rate DAF Unit

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNDAF
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: standard export package
Delivery Time: 10~20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Material: Carbon Steel /SS304/SS316L Application: Liquid Solid Separator
Function: Removing COD BOD NH-N TSS Certification: CE/ISO9001
Weight: 3-10ton Flow Rate: 1-200M3/h
High Light:

dissolved air flotation clarifier

,

daf dissolved air flotation system

97% removal rate daf krofta dissolved air flotation

Dissolved air flotation is an efficient flotation method for water clarification. The term refers to the method of producing flotation by dissolving air in the water under pressure and then releasing the pressure. When the pressure is released the solution becomes supersaturated with air as millions of small bubbles form. These bubbles attach to any particles in the water causing their density to become less than that of water. The particles then rapidly float to the surface for collection and removal, leaving the clarified water behind.

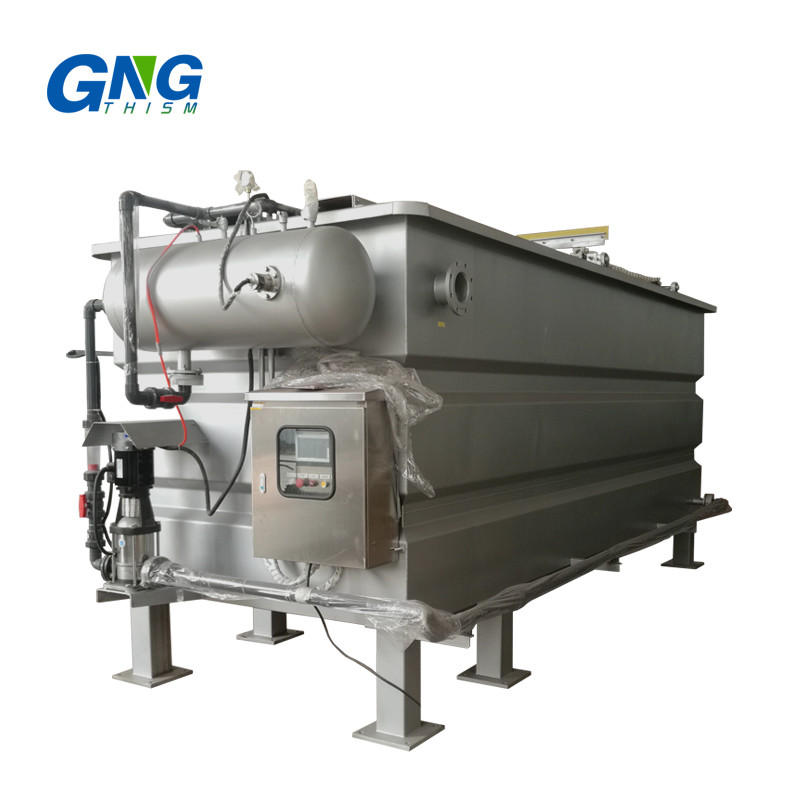

Krofta Dissolved Air Flotation Equipment / 97% Removal Rate DAF Unit 0

Features

1. Flow rate of one set: 1-300 m³/h.
2. Recycle flow dissolved air flotation.
3. High efficiency pressurization system providing high quantity dissolved-air water to create large quantities of small bubbles.
4. Custom design on different dissolved air flotation equipment and recycle flow ratio according to the type of wastewater and treatment requirement to achieve target removal effect and stability.
5. Adjustable stainless steel chain type skimmer to suit the different quantity of sludge.
6. Integrated coagulation tank and or flocculation tank and cleaning water tank(as optional)is available to save the space and cost.
7. Automatic and remotely controllable.
8. Material of construction: carbon steel epoxy painted, carbon steel FRP line, SS304/SS316.

Krofta Dissolved Air Flotation Equipment / 97% Removal Rate DAF Unit 1

Technical Parameters

Model

Capacity

(m3/h)

Dissolved Air Water Volume

(m3/h)

Main Motor Power

(KW)

Scraper Power

(KW)

Air Compressor Power

(KW)

Dimensions

(mm)

GNDAF-5 4-5 2 3 0.55 0.75 2800*2100*2200
GNDAF-10 8-10 3.5 3 0.55 0.75 3700*2100*2200
GNDAF-15 10-15 5 4 0.55 1.5 4500*2200*2300
GNDAF-20 15-20 8 5.5 0.55 1.5 4650*2400*2300
GNDAF-30 20-30 10 5.5 0.75 1.5 5840*2700*2300
GNDAF-40 35-40 15 7.5 0.75 1.5 6800*2700*2300
GNDAF-50 45-50 25 7.5 0.75 2.2 7500*2900*2300
GNDAF-60 55-60 25 7.5 1.1 2.2 8500*2900*2300
GNDAF-70 65-70 30 15 1.1 2.2 9000*2900*2300
GNDAF-80 75-80 30 15 1.1 2.2 9300*3500*2300
GNDAF-100 95-100 50 15 1.1 3 11750*3750*2300
GNDAF-150 140-150 50 15 1.5 3 12100*3750*2300
GNDAF-200 190-200 80-100 22 1.5 3 12400*3750*2860
GNDAF-250 240-250 100 22 1.5 3 14700*3750*2860
GNDAF-300 280-300 100 22 1.5 3 19100*3750*3150

Application

DAF is a proven, and effective physical-chemical technology commonly used for many industrial and municipal applications, including :

• Product recovery and reuse

• Pretreatment to meet sewer discharge limits

• Pretreatment to reduce loading on downstream biological systems

• Polishing of biological treatment effluent

• Removing silt and grease from industrial water
