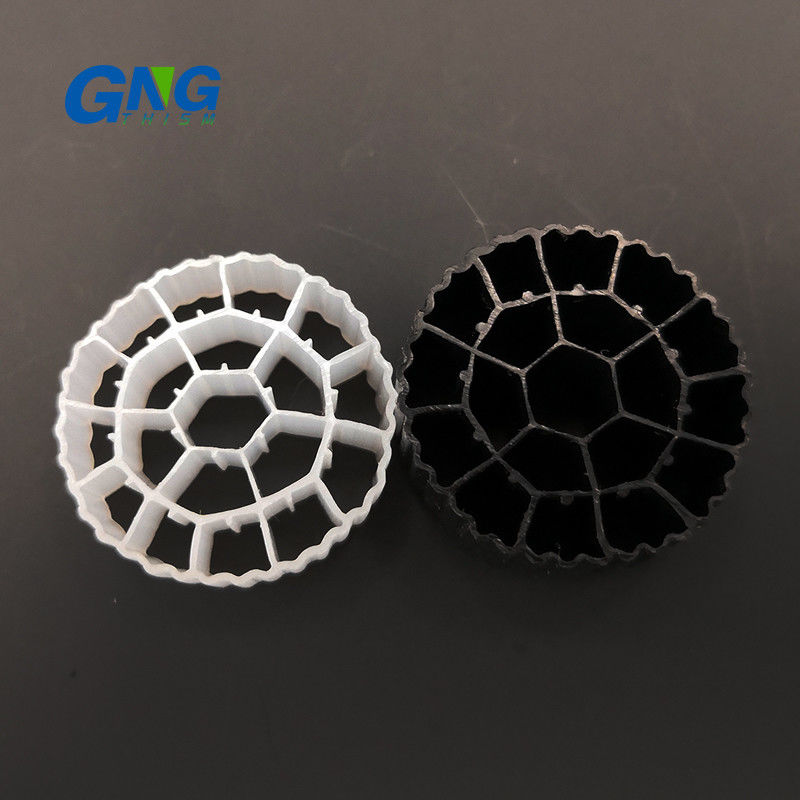

K2 K3 K5 K1 Moving Bed Filter / 100% Virgin Polyethylene Filter Media

Basic Information
Place of Origin: China
Brand Name: GNGTHISM
Certification: CE/ISO9001
Model Number: GNPE
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Double Woven Bag
Delivery Time: 3~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 cubic meters per month
Material: 100% Virgin HDPE Application: Waster Water Treatment/Aquaculture
Color: White/ Black Service Life: >15years
Package: 0.1cbm/bag Certification: CE/ISO9001
High Light:

mbbr filter media

,

moving bed bio filter media

100% virgin HDPE k1 k2 K3 k5 bio carrier filter media MBBR Media

 MBBR media is a new kind of suspension carrier. It modified polymeric material with the promoted additions of bio-enzyme, it improves the enzymatic catalysis, so it possesses excellences of a larger specific surface, being easy to multiply biofilm, unease to fall off, high denitrification, good hydrophile, high biological activity.

K2 K3 K5 K1 Moving Bed Filter / 100% Virgin Polyethylene Filter Media 0

Technical Parameter

K2 K3 K5 K1 Moving Bed Filter / 100% Virgin Polyethylene Filter Media 1

Model   GNPE-01 GNPE-02 GNPE-03 GNPE-04 GNPE-05 GNPE-06 GNPE-07 GNPE-08 GNPE-09
Dimentions mm φ12*9 φ11*7 φ10*7 φ16*10 φ25*10 φ25*10 φ35*18 φ6*10 φ15*15
Hole Numbers nos. 4 4 5 6 19 19 19 8 40
Protected surface area m2/m3 >800 >900 >1000 >800 >500 >500 >350 >3500 >900
Density g/cm3 0.96-0.98 0.96-0.98 0.96-0.98 0.96-0.98 0.96-0.98 1.02-1.05 0.96-0.98 1.02-1.05 0.96-0.98
Packing numbers pcs/m3 >630000 >830000 >850000 >260000 >97000 >97000 >33000 >2000000 >230000
Porosity % >85 >85 >85 >85 >90 >90 >92 >80 >85
Dosing ratio % 15-67 15-68 15-70 15-67 15-65 15-65 15-50 15-70 15-65
Membrane-forming time days 3--15 3--15 3--15 3--15 3--15 3--15 3--15 3--15 3--15
Nitrification efficiency gNH4-N/m3.d 400-1200 400-1200 400-1200 400-1200 400-1200 400-1200 300-800 500-1400 500-1400
BOD5 oxidation efficiency gBOD5/m3.d 2000-10000 2000-10000 2000-10000 2000-10000 2000-10000 2000-10000 1000-5000 2500-15000 2500-15000
COD oxidation efficiency gCOD/m3.d 2000-15000 2000-15000 2000-15000 2000-15000 2000-15000 2000-15000 1000-10000 2500-20000 2500-20000
Applicable temperature 5-60 5-60 5-60 5-60 5-60 5-60 5-60 5-60 5-60
Lifespan year >15 >15 >15 >15 >15 >15 >15 >15 >15

Raw Material & Biofilm Culturing

Materia:100%Virgin HDPE (Import), 20% shorter membrane-forming time than others.

K2 K3 K5 K1 Moving Bed Filter / 100% Virgin Polyethylene Filter Media 2

Using scope

1) The sewage plant upgrade project , improve the standard and quantity

2) New sewage treatment project of MBBR and biological aerated filter process

3) Biochemical treatment of reclaimed water

4) River regulation denitrification and phosphorus removal

5) Aquaculture in addition to ammonia nitrogen, water purification

6) Biological filter media is used for biological deodorization tower
